SHC-210 - Echo Shaft Hedge Trimmer (SN: 10001001 - 10999999) Gear Case, Blades S/N: 10001121 - 10999999 Parts Diagram

Shaft Hedge Trimmer

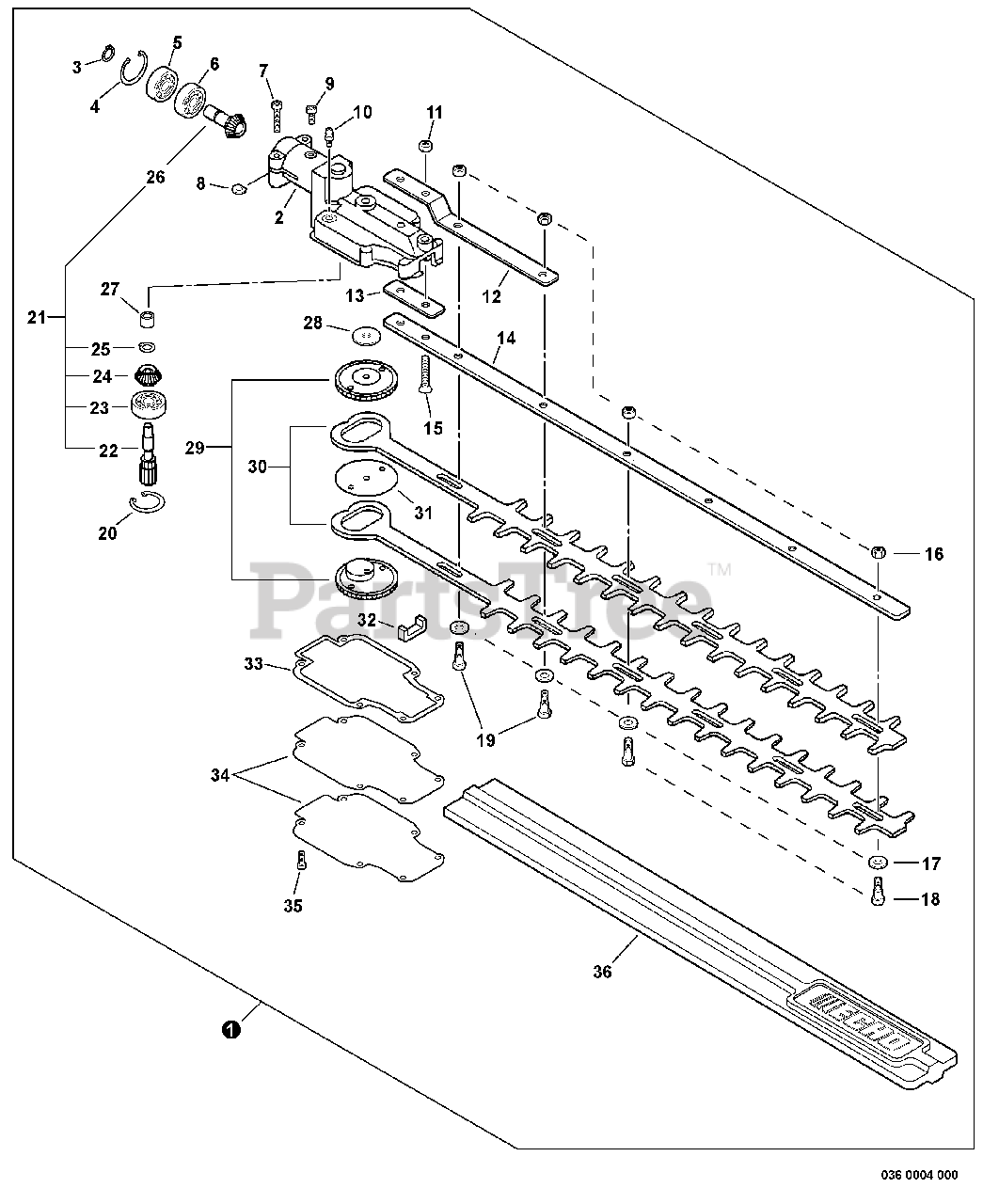

Gear Case, Blades S/N: 10001121 - 10999999 Parts Diagram

  • Title

1

Echo 9001011

GEAR CASE ASSY
(Superseded to 9001018)

Note: Includes ITEMS 2-36

$291.99

$

In Stock, only 1 left!

0

2

Echo 61041021460

CASE, GEAR - UPPER
(Superseded to 61041021461)

$

$

Not available

3

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

4

Echo 61033521460

RING, RETAINING Ø24

$1.99

$

In Stock, only 2 left!

0

5

Echo 90085806901

BEARING, BALL 6901Z
(Superseded to 9405206901)

$18.99

$

In Stock, only 2 left!

0

6

Echo 90085506901

BEARING, BALL 6901

$17.99

$

In Stock, only 2 left!

0

7

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

8

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

9

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

10

Echo 88011054230

FITTING, GREASE

$6.49

$

In Stock, only 2 left!

0

11

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

12

Echo 69912021461

PLATE, ANGLE

$6.99

$

In Stock, Qty 6

0

13

Echo 61091421460

SPACER
(Superseded to Discontinued)

$

$

Not available

14

Echo X425000260

SUPPORT, BLADE

$31.99

$

Usually ships in 2-4 days

0

15

Echo 90021206035

SCREW 6×35

$0.99

$

In Stock, Qty 17

0

16

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

17

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

18

Echo 69911306560

BOLT 6

$1.49

$

In Stock, Qty 20+

0

19

Echo 69911521460

BOLT 6×20

$4.99

$

In Stock, Qty 20+

0

20

Echo 61033521460

RING, RETAINING Ø24

$1.99

$

In Stock, only 2 left!

0

21

Echo P021009440

GEAR KIT, SPUR

Note: INCLUDES ITEMS 22-26

$90.99

$

Usually ships in 2-4 days

0

22

Echo 61031221460

GEAR, PINION

$36.99

$

Usually ships in 2-4 days

0

23

Echo 90085506901

BEARING, BALL 6901

$17.99

$

In Stock, only 2 left!

0

24

Echo V651000190

GEAR, BEVEL

$29.99

$

Usually ships in 2-4 days

0

25

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 1 left!

0

26

Echo V651000180

GEAR, BEVEL

$34.99

$

Usually ships in 2-4 days

0

27

Echo 60422121460

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

28

Echo 68902506560

WASHER 6.5×30×0.2

$1.99

$

In Stock, Qty 7

0

29

Echo V650000080

GEAR, SPUR

$64.99

$

In Stock, Qty 9

0

30

Echo X411000410

CUTTER

$69.99

$

In Stock, only 1 left!

0

31

Echo 68902505360

WASHER 6.7×54×0.38

$2.99

$

In Stock, only 2 left!

0

32

Echo 61042606560

SEAL

$3.49

$

In Stock, Qty 20+

0

33

Echo 61041421460

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 8

0

34

Echo 61041121460

LID, GEAR CASE

$7.99

$

Usually ships in 2-4 days

0

35

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

36

Echo X495000170

SCABBARD

$8.99

$

In Stock, only 2 left!

0
