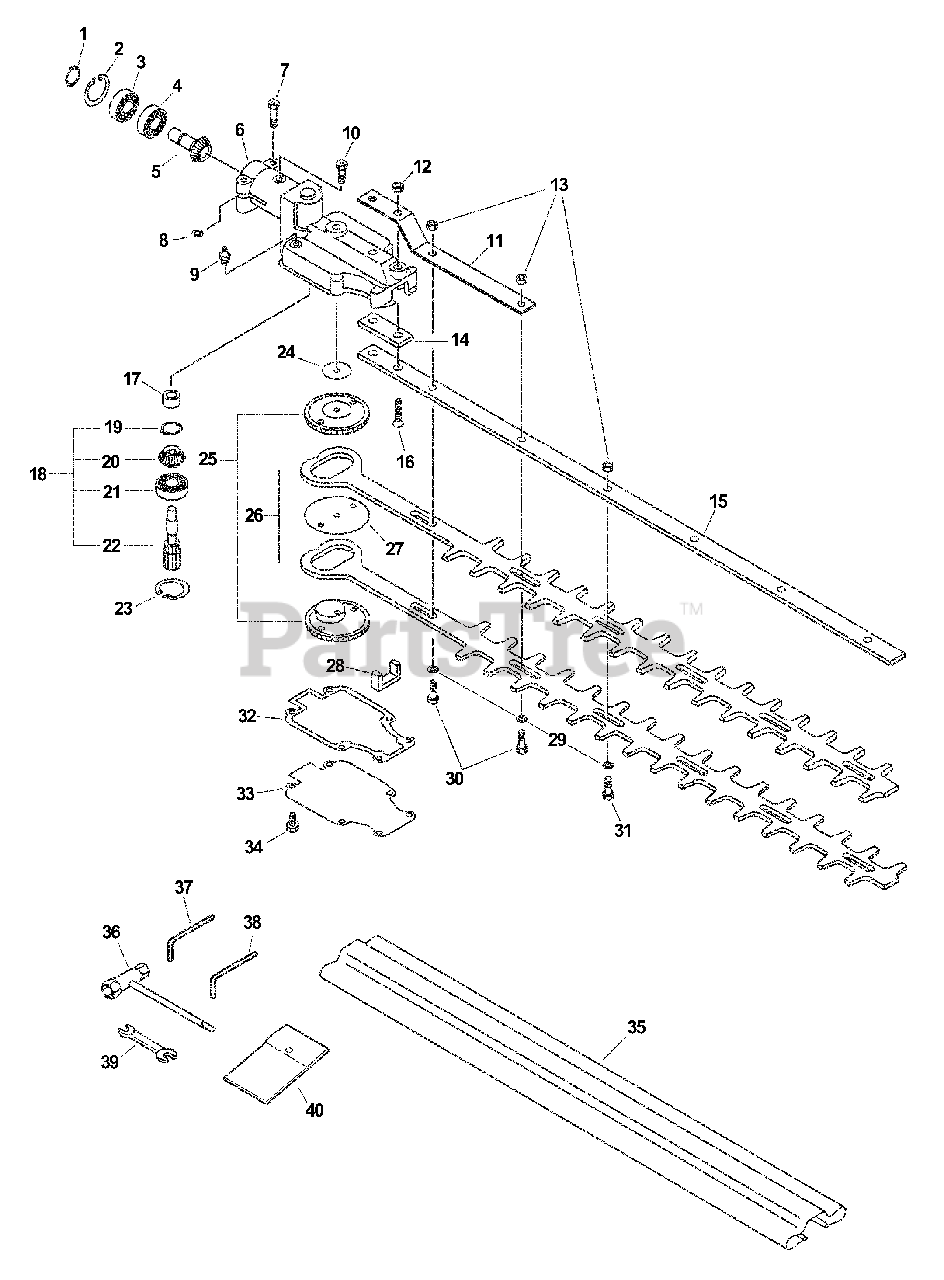

SHC-2100 - Echo Shaft Hedge Trimmer (Type 1) Gearcase, Blades, Tools S/N: 001001 - 0511440 Parts Diagram

Shaft Hedge Trimmer (Type 1)

Gearcase, Blades, Tools S/N: 001001 - 0511440 Parts Diagram

  • Title

1

Echo 61033521460

RING, RETAINING Ø24

$1.99

$

In Stock, only 2 left!

0

2

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

3

Echo 90085806901

BEARING, BALL 6901Z
(Superseded to 9405206901)

$18.99

$

In Stock, only 2 left!

0

4

Echo 90085506901

BEARING, BALL 6901

$17.99

$

In Stock, only 2 left!

0

5

Echo V651000050

GEAR, BEVEL
(Superseded to P021009430)

$45.99

$

In Stock, only 1 left!

0

6

Echo 61041021460

CASE, GEAR - UPPER
(Superseded to 61041021461)

$

$

Not available

7

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

8

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

9

Echo 88011054230

FITTING, GREASE

$6.49

$

In Stock, only 2 left!

0

10

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

11

Echo 69912021461

PLATE, ANGLE

$6.99

$

In Stock, Qty 6

0

12

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

13

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

14

Echo 61091421460

SPACER
(Superseded to Discontinued)

$

$

Not available

15

Echo 69911021560

BAR, FRAME
(Superseded to X425000030)

$31.99

$

Usually ships in 2-4 days

0

16

Echo 90021206035

SCREW 6×35

$0.99

$

In Stock, Qty 17

0

17

Echo 60422121460

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

18

Echo 61030821460

SPUR GEAR ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 19-22

$

$

Not available

19

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 1 left!

0

20

Echo 61036121560

GEAR, BEVEL - DRIVEN
(Superseded to Discontinued)

$

$

Not available

21

Echo 90085506901

BEARING, BALL 6901

$17.99

$

In Stock, only 2 left!

0

22

Echo 61031221460

GEAR, PINION

$36.99

$

Usually ships in 2-4 days

0

23

Echo 61033521460

RING, RETAINING Ø24

$1.99

$

In Stock, only 2 left!

0

24

Echo 68902506560

WASHER 6.5×30×0.2

$1.99

$

In Stock, Qty 7

0

25

Echo 61031206560

GEAR, SPUR
(Superseded to V650000250)

$64.99

$

In Stock, Qty 9

0

26

Echo 69701021560

BLADE, TRIMMER
(Superseded to X411000040)

$69.99

$

In Stock, only 1 left!

0

27

Echo 68902505360

WASHER 6.7×54×0.38

$2.99

$

In Stock, only 2 left!

0

28

Echo 61042621460

PACKING, FELT

$3.49

$

Usually ships in 2-4 days

0

29

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

30

Echo 69911521460

BOLT 6×20

$4.99

$

In Stock, Qty 20+

0

31

Echo 69911306560

BOLT 6

$1.49

$

In Stock, Qty 20+

0

32

Echo 61041421460

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 8

0

33

Echo 61041121460

LID, GEAR CASE

$7.99

$

Usually ships in 2-4 days

0

34

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

35

Echo 89852321560

COVER, BLADE
(Superseded to X495000040)

$8.99

$

In Stock, only 2 left!

0

36

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

37

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

38

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

39

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

40

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0
