SHC-211 - Echo Shaft Hedge Trimmer (SN: 02001001 - 02999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Shaft Hedge Trimmer

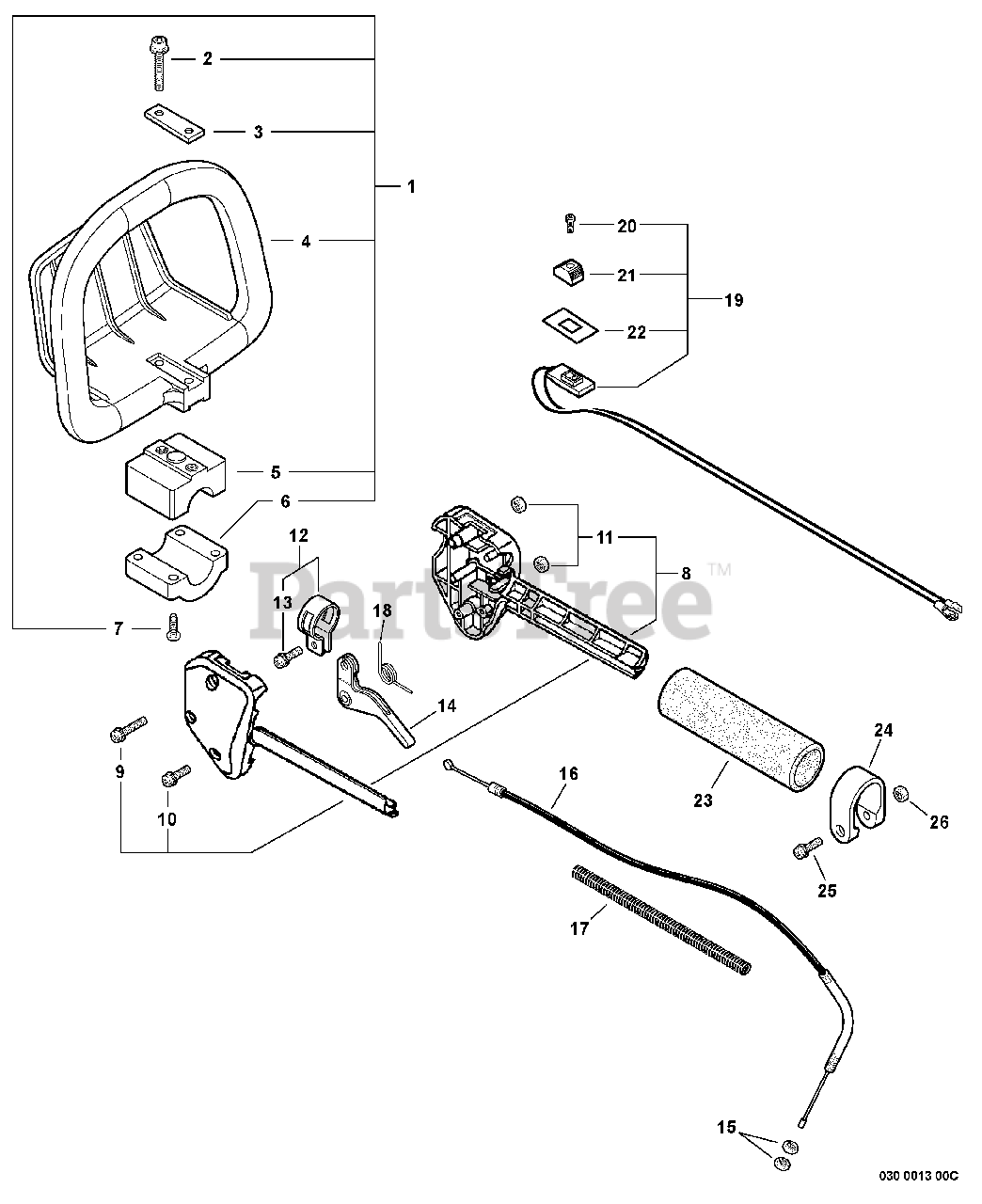

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 35120121560

FRONT HANDLE ASSY

Note: INCLUDES ITEMS 2-7

$30.99

$

Usually ships in 2-4 days

0

2

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

3

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

4

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0

5

Echo 35141521460

BRACKET, HANDLE - UPPER

$4.99

$

Usually ships in 2-4 days

0

6

Echo 35164321460

BRACKET, HANDLE - LOWER

$2.49

$

Usually ships in 2-4 days

0

7

Echo 88995021560

SCREW 5

$0.99

$

In Stock, only 2 left!

0

8

Echo 17800352731

THROTTLE BRACKET SET

Note: INCLUDES ITEMS 9-11

$12.99

$

Usually ships in 2-4 days

0

9

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

10

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 13

$11.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

15

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

16

Echo 17800156730

CABLE, THROTTLE

$12.99

$

In Stock, only 1 left!

0

17

Echo 17812721360

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available

18

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

19

Echo 16340155631

SWITCH ASSY, ON-OFF

Note: INCLUDES ITEMS 20-22

$10.99

$

In Stock, only 2 left!

0

20

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

22

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

23

Echo 35121352730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 61027252730

CLAMP

$11.99

$

Usually ships in 2-4 days

0

25

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

26

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0
