SHC-212 - Echo Shaft Hedge Trimmer (SN: S68811001001 - S68811999999) Fuel System Parts Diagram

Shaft Hedge Trimmer

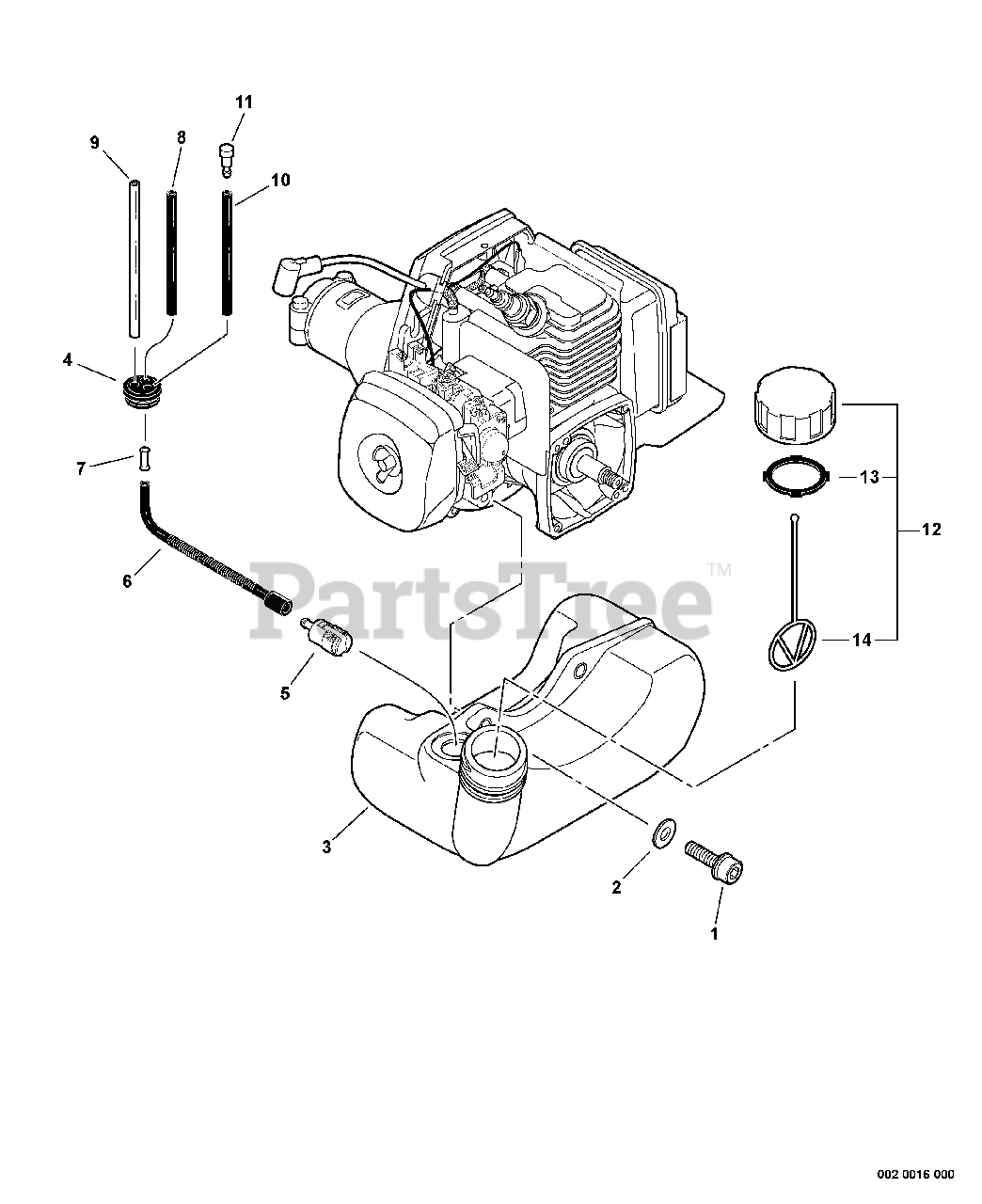

Fuel System Parts Diagram

  • Title

1

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo A350000690

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

4

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

5

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KITALSO AND EVERYALSO AND OTHERALSO AND MANY

$6.49

$

In Stock, Qty 20+

0

6

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 9

0

7

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 2 left!

0

8

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

9

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

10

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 13-14

$7.49

$

In Stock, Qty 9

0

13

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 5

0
