SHC-225 - Echo Shaft Hedge Trimmer (SN: T76714001001 - T76714999999) Fuel System S/N T76714011211 - T76714999999 Parts Diagram

Shaft Hedge Trimmer

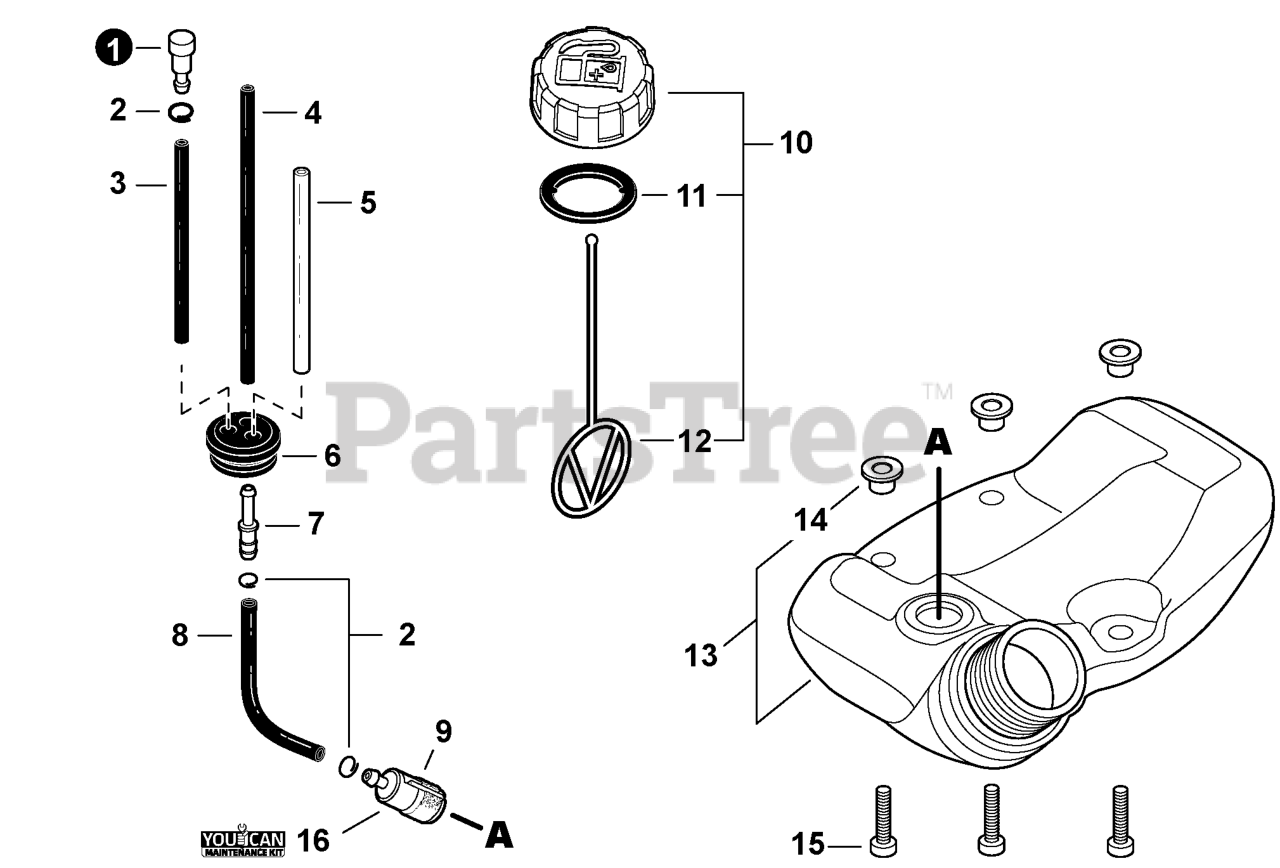

Fuel System S/N T76714011211 - T76714999999 Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 13201256030

PIPE, FUEL 3x6x80 YELLOW

$3.49

$

In Stock, Qty 20+

0

4

Echo V471001210

PIPE, FUEL 3x5x90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471003691

PIPE, FUEL 3x5x74 BLACK
(Superseded to V471005620)

$3.99

$

In Stock, Qty 13

0

6

Echo 13211546730

GROMMET, FUEL 5

$2.49

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V470001960

PIPE, FUEL 3x5x110 BLACK

$6.49

$

Usually ships in 2-4 days

0

9

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

10

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 11-12

$6.99

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

13

Echo A350002270

TANK ASSY, FUEL
(Superseded to A350002271)

Note: Includes Item 14

$32.99

$

In Stock, only 3 left!

0

14

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

15

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

16

Echo 90152Y

TUNE-UP KIT - YOUCANT

$21.99

$

In Stock, Qty 20+

0
