SHC-225 - Echo Shaft Hedge Trimmer (SN: T76714001001 - T76714999999) Gear Case, Blades Parts Diagram

Shaft Hedge Trimmer

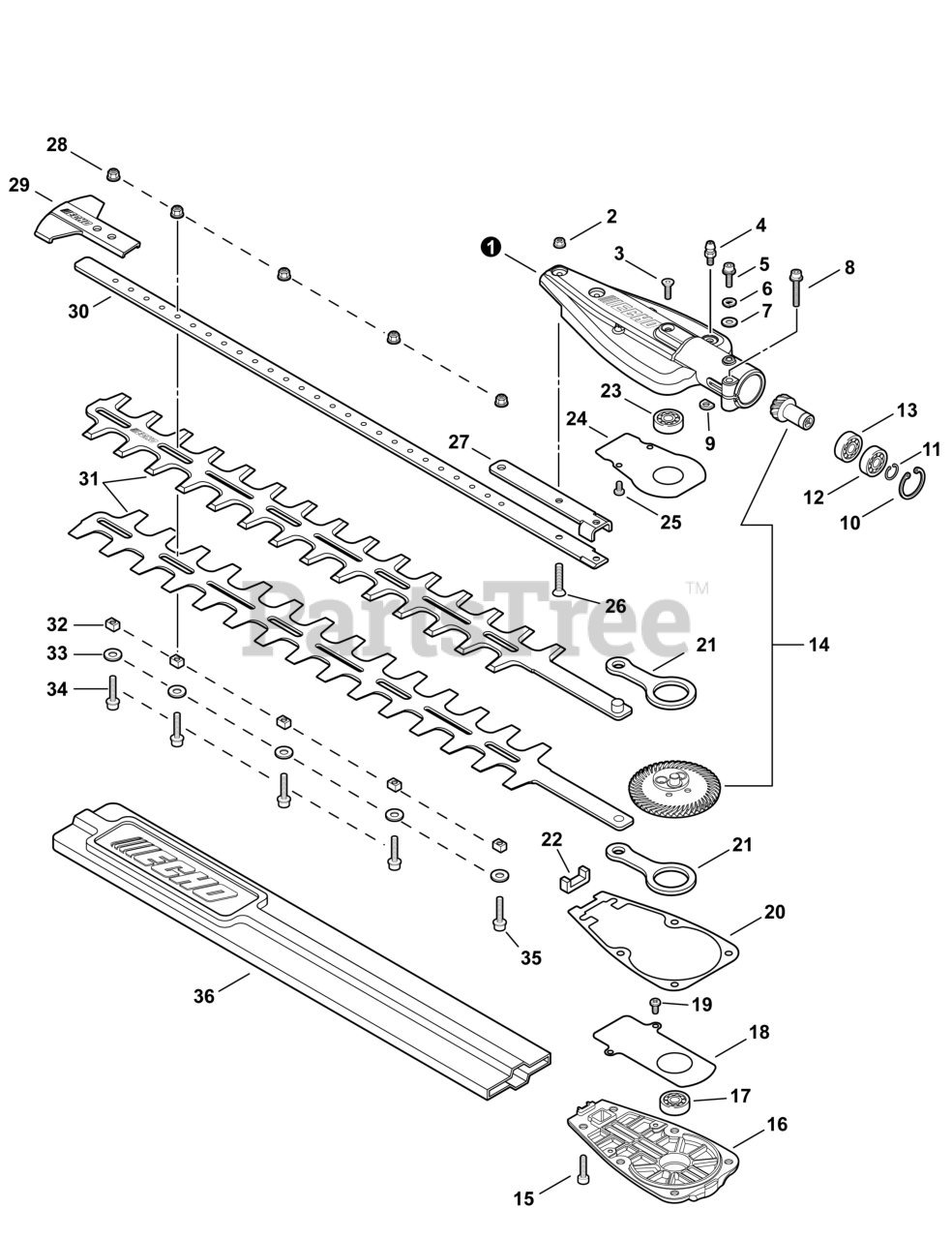

Gear Case, Blades Parts Diagram

  • Title

1

Echo C531000411

HOUSING, GEAR CASE

$45.99

$

In Stock, only 3 left!

0

2

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

3

Echo V253000160

SCREW 5x5/8" HD-SOCKET

$0.99

$

In Stock, only 2 left!

0

4

Echo 88011054230

FITTING, GREASE

$6.49

$

In Stock, only 2 left!

0

5

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

6

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

9

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

10

Echo 61033521460

RING, RETAINING 24

$1.99

$

In Stock, only 2 left!

0

11

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 20+

0

12

Echo 9405206901

BEARING, BALL

$18.99

$

In Stock, only 2 left!

0

13

Echo 9405206901

BEARING, BALL

$18.99

$

In Stock, only 2 left!

0

14

Echo P021045311

GEAR SET, BEVEL

$125.99

$

In Stock, only 2 left!

0

15

Echo 90010505012

BOLT 5x12

$1.49

$

In Stock, only 3 left!

0

16

Echo C531000420

COVER, GEAR CASE

$46.99

$

In Stock, Qty 9

0

17

Echo 90081400628

BEARING, BALL 628ZZ

$10.99

$

In Stock, only 2 left!

0

18

Echo K123000010

PLATE, WEAR

$1.99

$

In Stock, Qty 10

0

19

Echo 9133004005

SCREW 4x5

$0.99

$

Usually ships in 2-4 days

0

20

Echo V110000070

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 16

0

21

Echo C532000181

ROD, CONNECTING

$17.99

$

In Stock, only 2 left!

0

22

Echo V541000130

SEAL

$1.49

$

In Stock, Qty 20+

0

23

Echo 90080400608

BEARING, BALL 608ZZ

$15.99

$

In Stock, only 2 left!

0

24

Echo K123000020

PLATE, WEAR

$1.99

$

In Stock, Qty 7

0

25

Echo 9133004005

SCREW 4x5

$0.99

$

Usually ships in 2-4 days

0

26

Echo 90021205018

SCREW 5x18

$0.99

$

In Stock, Qty 20+

0

27

Echo V150001860

SUPPORT, BLADE

$3.99

$

In Stock, Qty 7

0

28

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

29

Echo E278000211

GUARD, TIP
(Superseded to 99988802000)

$12.99

$

In Stock, Qty 16

0

30

Echo X425000410

SUPPORT, BLADE

$48.99

$

In Stock, only 1 left!

0

31

Echo X411000720

BLADE

$63.99

$

In Stock, only 4 left!

0

32

Echo V353000250

GUIDE, BLADE 5

$6.99

$

In Stock, Qty 20+

0

33

Echo 17721421860

WASHER 5

$2.99

$

In Stock, Qty 20+

0

34

Echo 90010605020

BOLT 5x20

$1.49

$

In Stock, Qty 5

0

35

Echo 9110705022

BOLT, FLANGE 5x22

$0.99

$

In Stock, Qty 20+

0

36

Echo X495000470

SCABBARD

$10.99

$

In Stock, only 2 left!

0
