SHC-225 S - Echo Shaft Hedge Trimmer (SN: S86012001001 - S86012999999) Engine Cover, Starter S/N: S86012001001-S86012022724 Parts Diagram

Shaft Hedge Trimmer

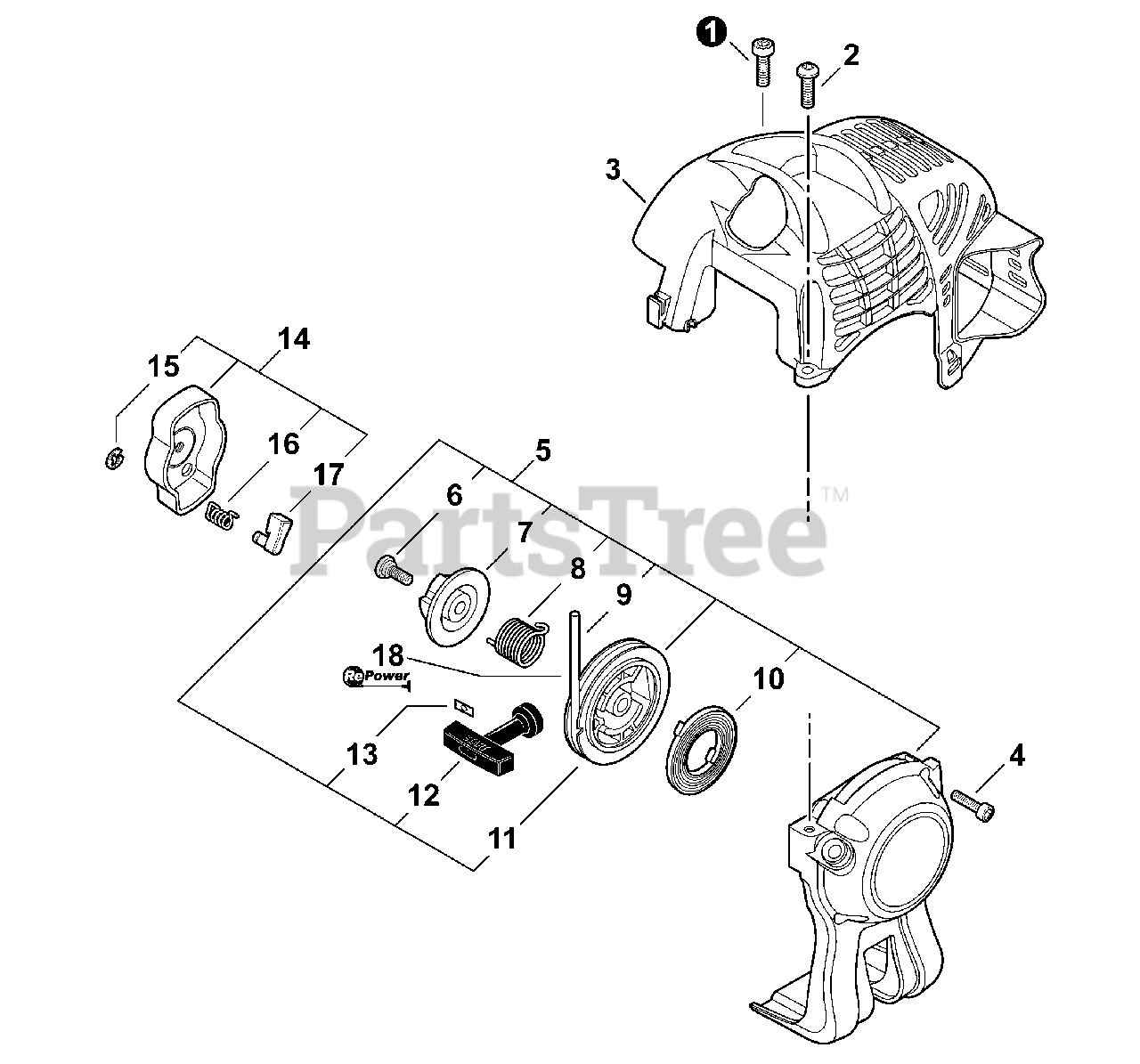

Engine Cover, Starter S/N: S86012001001-S86012022724 Parts Diagram

  • Title

1

Echo V805000150

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo V805000000

SCREW - 5×16

$0.99

$

In Stock, Qty 8

0

3

Echo A160001090

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

4

Echo V804000060

SCREW - 4×16

$0.99

$

In Stock, only 3 left!

0

5

Echo A051001311

STARTER ASSY
(Superseded to A051001312)

Note: Includes Items 6-13

$28.99

$

In Stock, Qty 20+

0

6

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

7

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

8

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 15

0

9

Echo P022019990

ROPE, STARTER - 3×700
(Superseded to P022008260)

$5.99

$

Usually ships in 2-4 days

0

10

Echo P022019680

SPRING, REWIND

$10.99

$

In Stock, Qty 20+

0

11

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

12

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 8

0

13

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

14

Echo A052000180

STARTER PAWL ASSY

Note: Includes Items 15-17

$9.99

$

In Stock, Qty 11

0

15

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, only 2 left!

0

16

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

17

Echo P022006850

PAWL

$3.99

$

In Stock, Qty 13

0

18

Echo 99944440000

ROPE, STARTER - REPOWER BULK

$33.99

$

In Stock, only 4 left!

0
