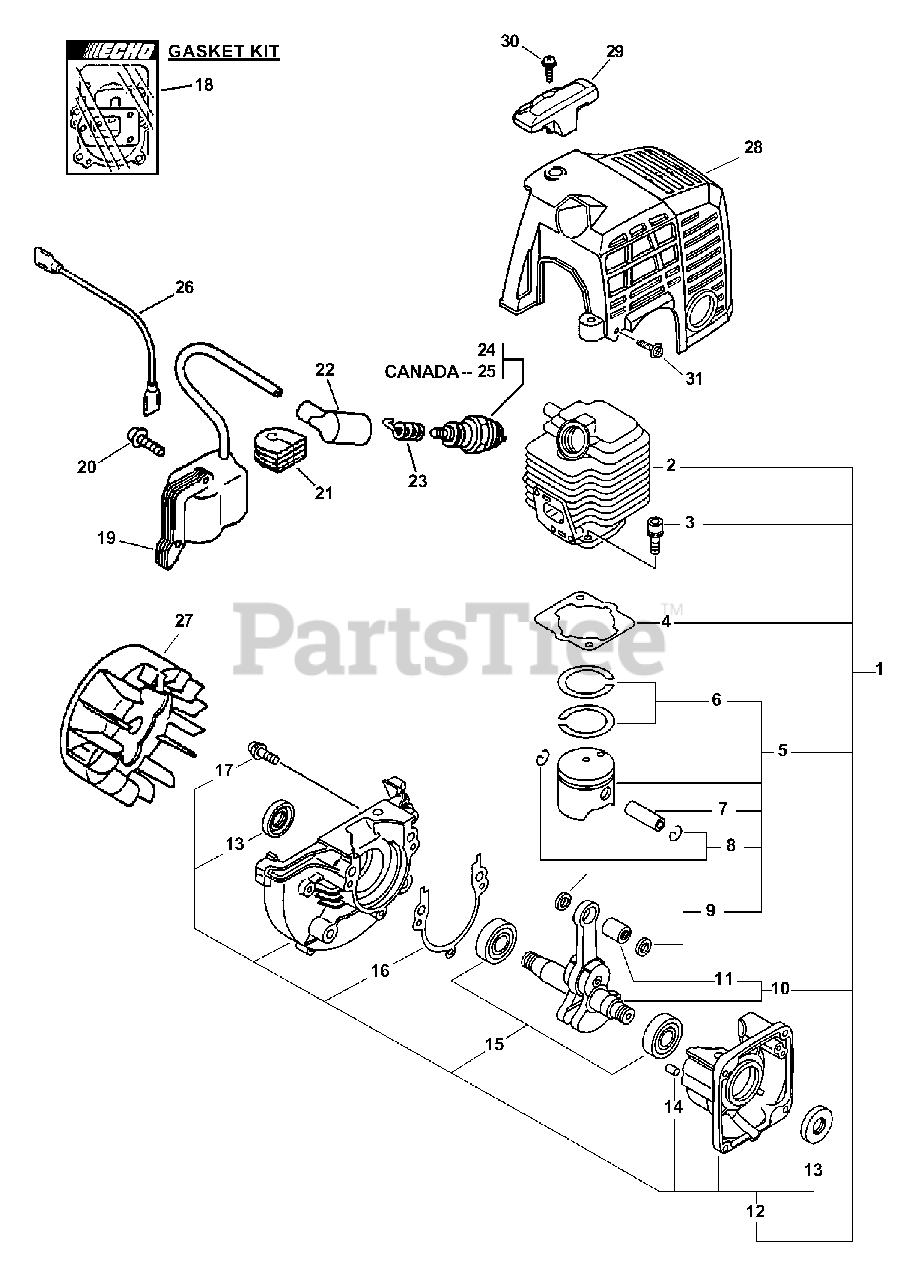

SHC-2400 - Echo Shaft Hedge Trimmer (Type 1) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Shaft Hedge Trimmer (Type 1)

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10101112360

CYLINDER
(Superseded to 10100308960)

$

$

Not available

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

4

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

5

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: Includes ITEMS 6-9

$84.99

$

In Stock, only 1 left!

0

6

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$186.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

------------------

CRANKCASE KIT

Note: Includes ITEMS 13-17

$

$

Not available

13

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

15

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$18.99

$

Usually ships in 2-4 days

0

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 17

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 11

0

24

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

25

Echo 15901710230

SPARK PLUG -- RCJ-7Y

Note: CANADA MODELS

$4.99

$

In Stock, Qty 20+

0

26

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

27

Echo 15680144731

FLYWHEEL

$126.99

$

Usually ships in 2-4 days

0

28

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

29

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

30

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

31

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0
