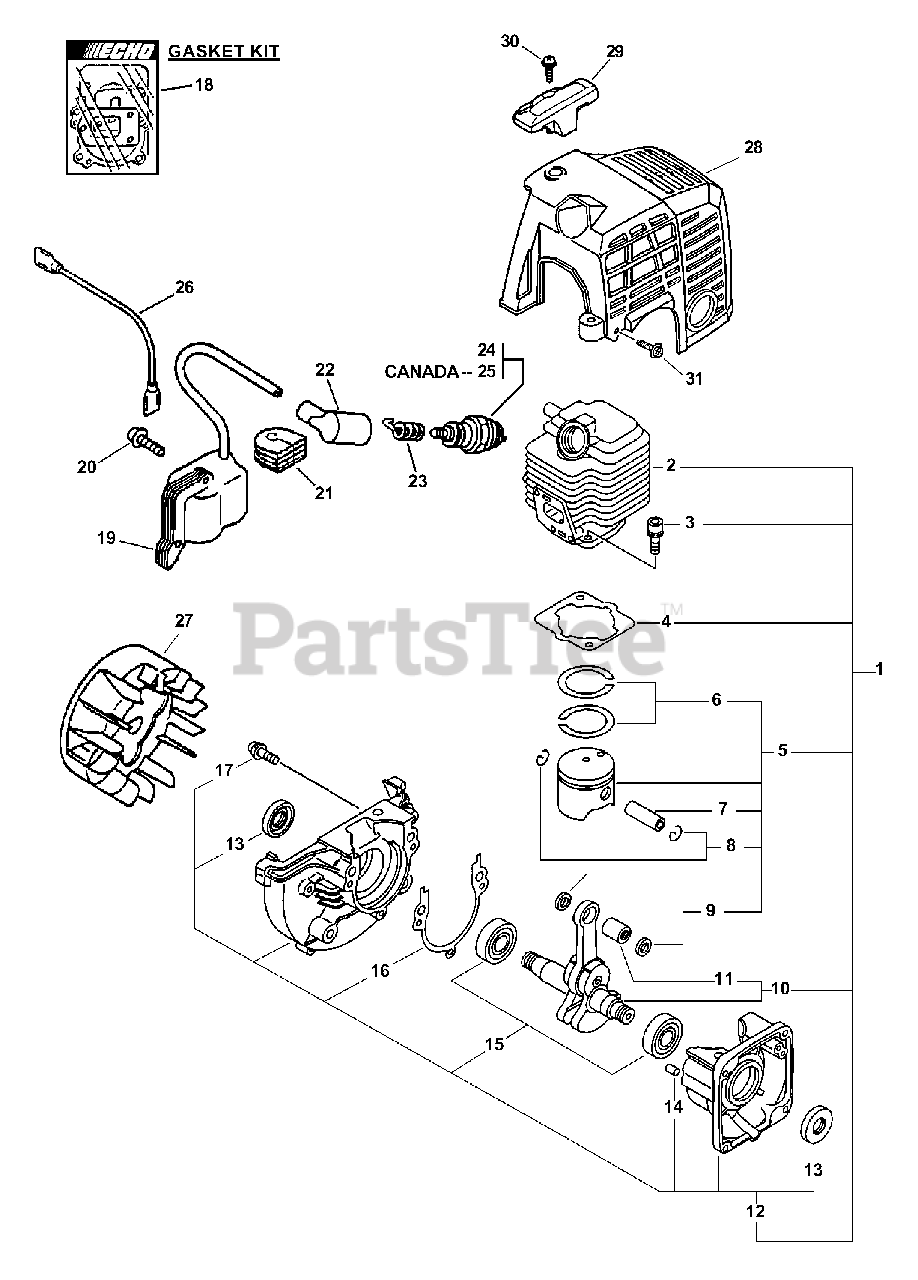

SHC-2400 - Echo Shaft Hedge Trimmer (Type 1) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Shaft Hedge Trimmer (Type 1)

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1027

SHORT BLOCK ES-2400
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10101112360

CYLINDER
(Superseded to 10100308960)

$

$

Not available

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

5

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: Includes ITEMS 6-9

$84.99

$

In Stock, only 1 left!

0

6

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 11

$186.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

CRANKCASE KIT

Note: Includes ITEMS 13-17

$

$

Not available

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

18

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$18.99

$

Usually ships in 2-4 days

0

19

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

22

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

23

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

24

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

25

Echo 159017-10230

SPARK PLUG - RCJ7Y

Note: CANADA MODELS

$4.99

$

In Stock, Qty 20+

0

26

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

27

Echo 156801-44731

FLYWHEEL

$126.99

$

Usually ships in 2-4 days

0

28

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

29

Echo 15991254130

GUARD, TOP

$9.49

$

In Stock, only 3 left!

0

30

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

31

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0
