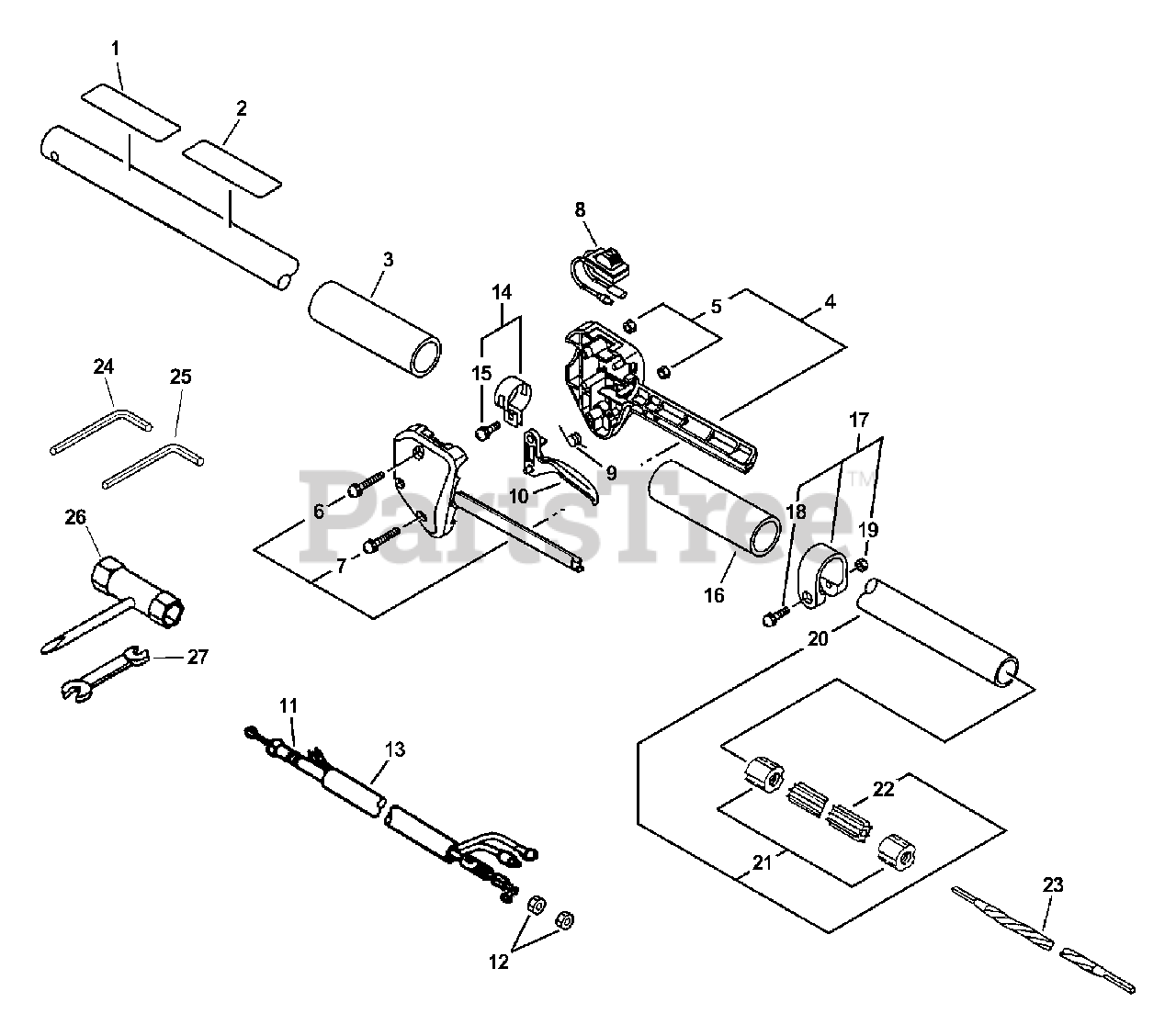

SHC-2400 - Echo Shaft Hedge Trimmer (Type 1) Main Pipe, Handle, Switch, Throttle Cable, Driveshaft, Tools Parts Diagram

Shaft Hedge Trimmer (Type 1)

Main Pipe, Handle, Switch, Throttle Cable, Driveshaft, Tools Parts Diagram

  • Title

1

Echo 89016021560

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

2

Echo 89017854331

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

3

Echo 35101254330

GRIP, HANDLE

$44.99

$

In Stock, only 2 left!

0

4

Echo 17800352130

HANDLE KIT, CONTROL

Note: INCLUDES ITEMS 5-7

$5.99

$

In Stock, only 3 left!

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

7

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 16340155631

SWITCH ASSY, ON-OFF

$10.99

$

In Stock, only 2 left!

0

9

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

11

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

12

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

13

Echo 17812752130

TUBE
(Superseded to 17812750330)

$1.49

$

In Stock, Qty 7

0

14

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 15

$11.99

$

In Stock, only 2 left!

0

15

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

16

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

17

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 18-19

$11.99

$

In Stock, only 2 left!

0

18

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

19

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

20

Echo 61020612360

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21-22

$

$

Not available

21

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

22

Echo 61021712360

LINER - FLEXIBLE
(Superseded to C507000220)

$17.99

$

In Stock, only 1 left!

0

23

Echo 61001312360

DRIVESHAFT - FLEXIBLE
(Superseded to C506000360)

$14.99

$

In Stock, only 1 left!

0

24

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

25

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

26

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

27

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0
