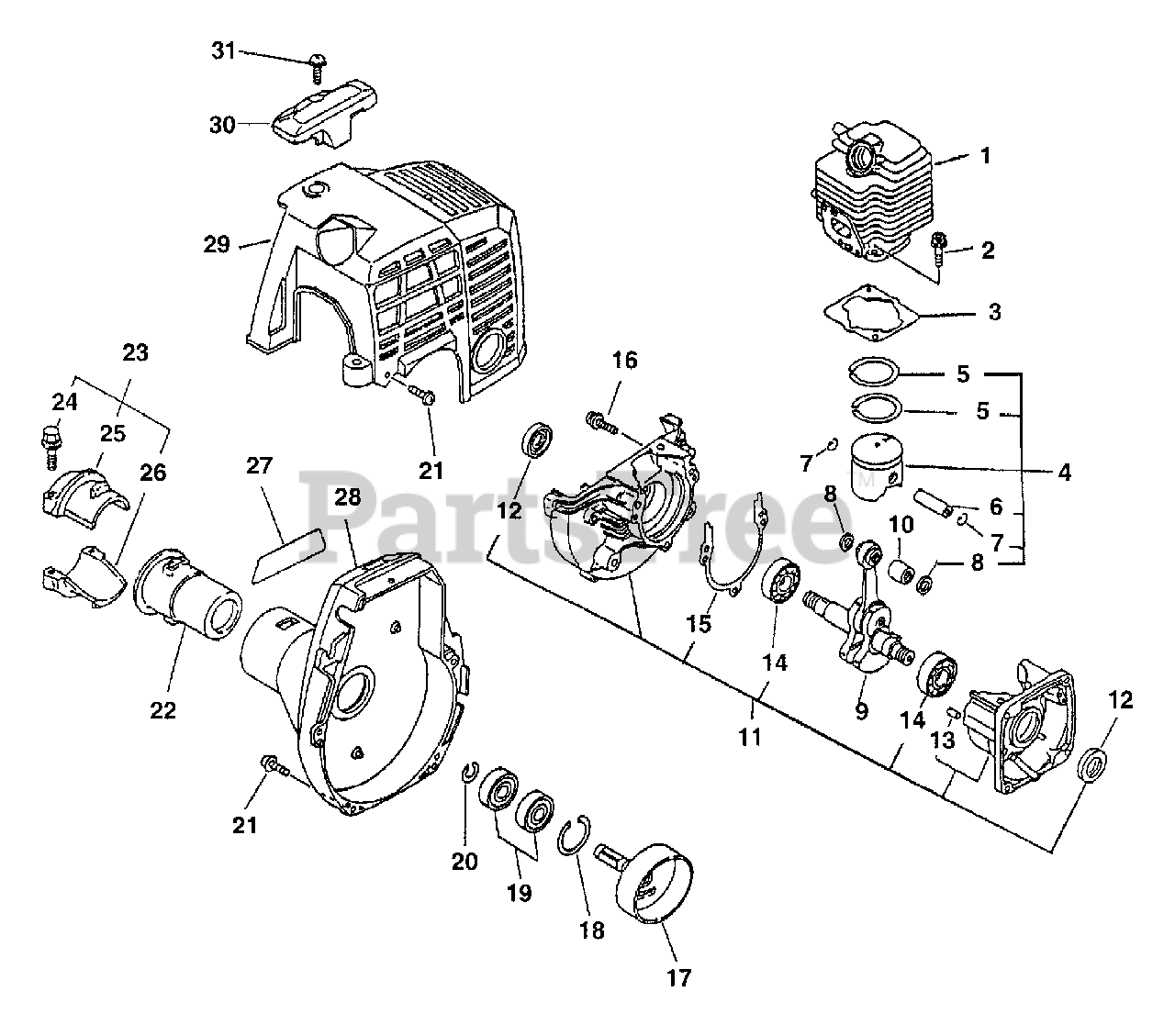

SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E) Crankcase, Engine, Fan Case Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10100308960

CYLINDER KIT
(Superseded to P021035810)

Note: Includes ITEM 4

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE GASKET KIT P/N 88900021460

$4.99

$

In Stock, Qty 12

0

4

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 10. (USE P/N SB1027)

$

$

Not available

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 12 - 16. (USE P/N SB1027)

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900021460

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

17

Echo 17500548931

DRUM, CLUTCH

$16.99

$

In Stock, Qty 5

0

18

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

22

Echo 61091055230

CUSHION

$8.49

$

In Stock, only 1 left!

0

23

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 24 - 26

$21.99

$

Usually ships in 2-4 days

0

24

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

25

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

26

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$9.99

$

Usually ships in 2-4 days

0

27

Echo X503000790

LABEL - MODEL SHC-2401
(Superseded to Discontinued)

$

$

Not available

28

Echo 10150352131

CASE, FAN

$78.99

$

Usually ships in 2-4 days

0

29

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 88900021460

GASKET KIT

Note: INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 9

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, only 4 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 61041421460

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 8

0
