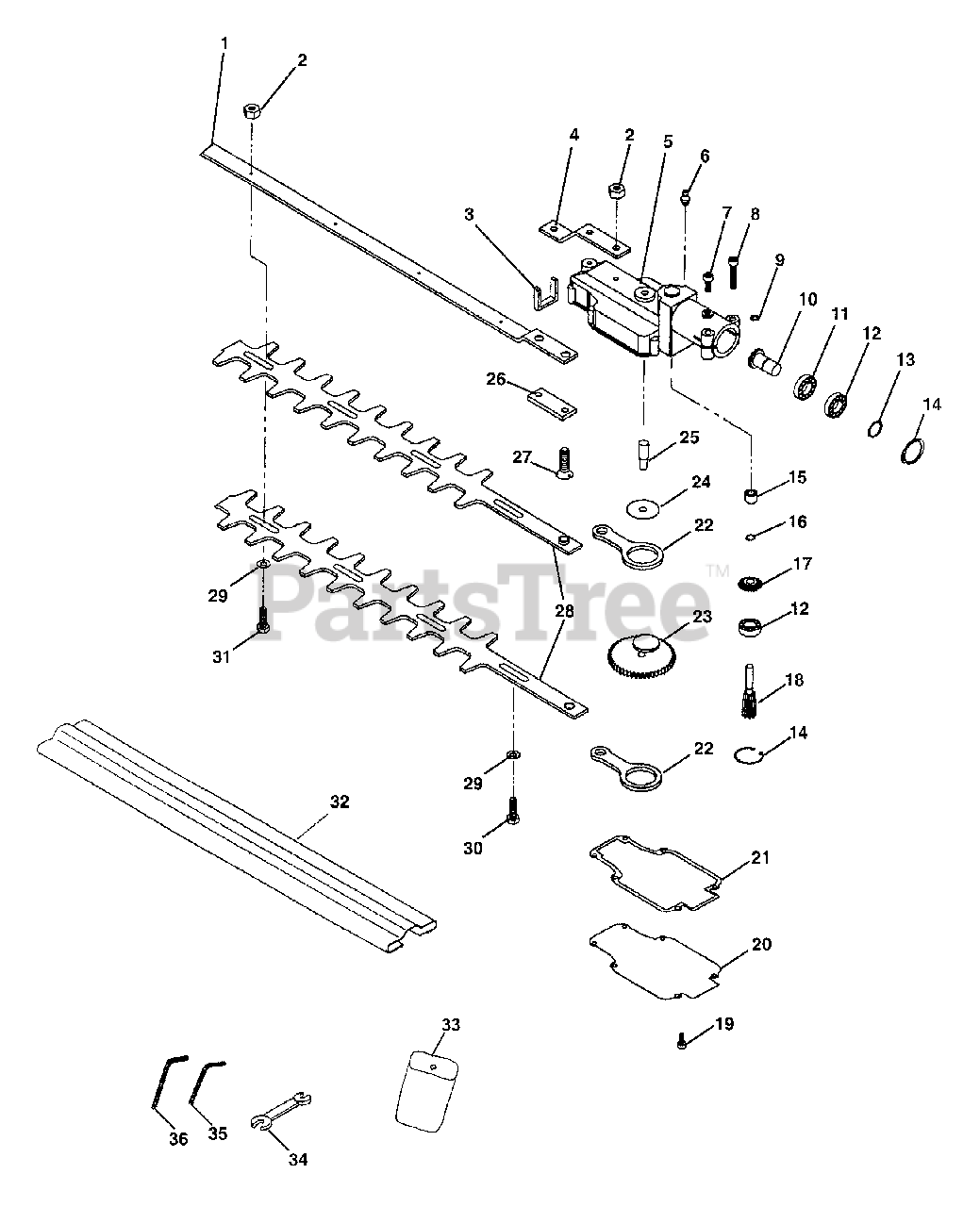

SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E) Gear Case, Blades, Tools Parts Diagram

Shaft Hedge Trimmer (Type 1E)

Gear Case, Blades, Tools Parts Diagram

  • Title

1

Echo X425000060

SUPPORT, BLADE - 20" (50cm)
(Superseded to X425000210)

$34.99

$

Usually ships in 2-4 days

0

2

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

3

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, only 2 left!

0

4

Echo 69912021561

BRACKET

$6.99

$

In Stock, only 1 left!

0

5

Echo 61041021560

CASE, GEAR
(Superseded to P021000110)

$

$

Not available

6

Echo 88011054230

FITTING, GREASE

$6.49

$

In Stock, only 2 left!

0

7

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

8

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

9

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

10

Echo V651000050

GEAR
(Superseded to P021009430)

$45.99

$

In Stock, only 1 left!

0

11

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$18.99

$

In Stock, only 2 left!

0

12

Echo 90085506901

BEARING, BALL - 6901

$17.99

$

In Stock, only 2 left!

0

13

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

14

Echo 61033521460

RING, RETAINING - 24

$1.99

$

In Stock, only 2 left!

0

15

Echo 60422121460

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

16

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 1 left!

0

17

Echo V651000060

GEAR - BEVEL -- DRIVEN
(Superseded to P021009430)

$45.99

$

In Stock, only 1 left!

0

18

Echo 61031221460

GEAR - SHAFT

$36.99

$

Usually ships in 2-4 days

0

19

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 20+

0

20

Echo 61041121460

LID, GEAR CASE

$7.99

$

Usually ships in 2-4 days

0

21

Echo 61041421460

GASKET, GEAR CASE

Note: USE GASKET KIT P/N 88900021460

$1.99

$

In Stock, Qty 8

0

22

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

In Stock, only 2 left!

0

23

Echo 61031204560

GEAR - DRIVE

$91.99

$

In Stock, only 4 left!

0

24

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

25

Echo 61031004560

DRIVESHAFT

$9.49

$

Usually ships in 2-4 days

0

26

Echo 61044004560

GUIDE

$2.99

$

In Stock, Qty 5

0

27

Echo 90021206035

SCREW - 6X35

$0.99

$

In Stock, Qty 17

0

28

Echo X411000050

BLADE - 20" (50cm)
(Superseded to X411000400)

$68.99

$

In Stock, only 4 left!

0

29

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 69911521460

SCREW

$4.99

$

In Stock, Qty 20+

0

31

Echo 69911504560

BOLT

$2.99

$

In Stock, only 4 left!

0

32

Echo 89852306560

COVER, BLADE
(Superseded to X495000040)

$8.99

$

In Stock, only 2 left!

0

33

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

34

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

35

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

36

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

Echo 88900021460

GASKET KIT

$

$

Not available
