SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E) Intake, Air Cleaner, Exhaust Parts Diagram

Shaft Hedge Trimmer (Type 1E)

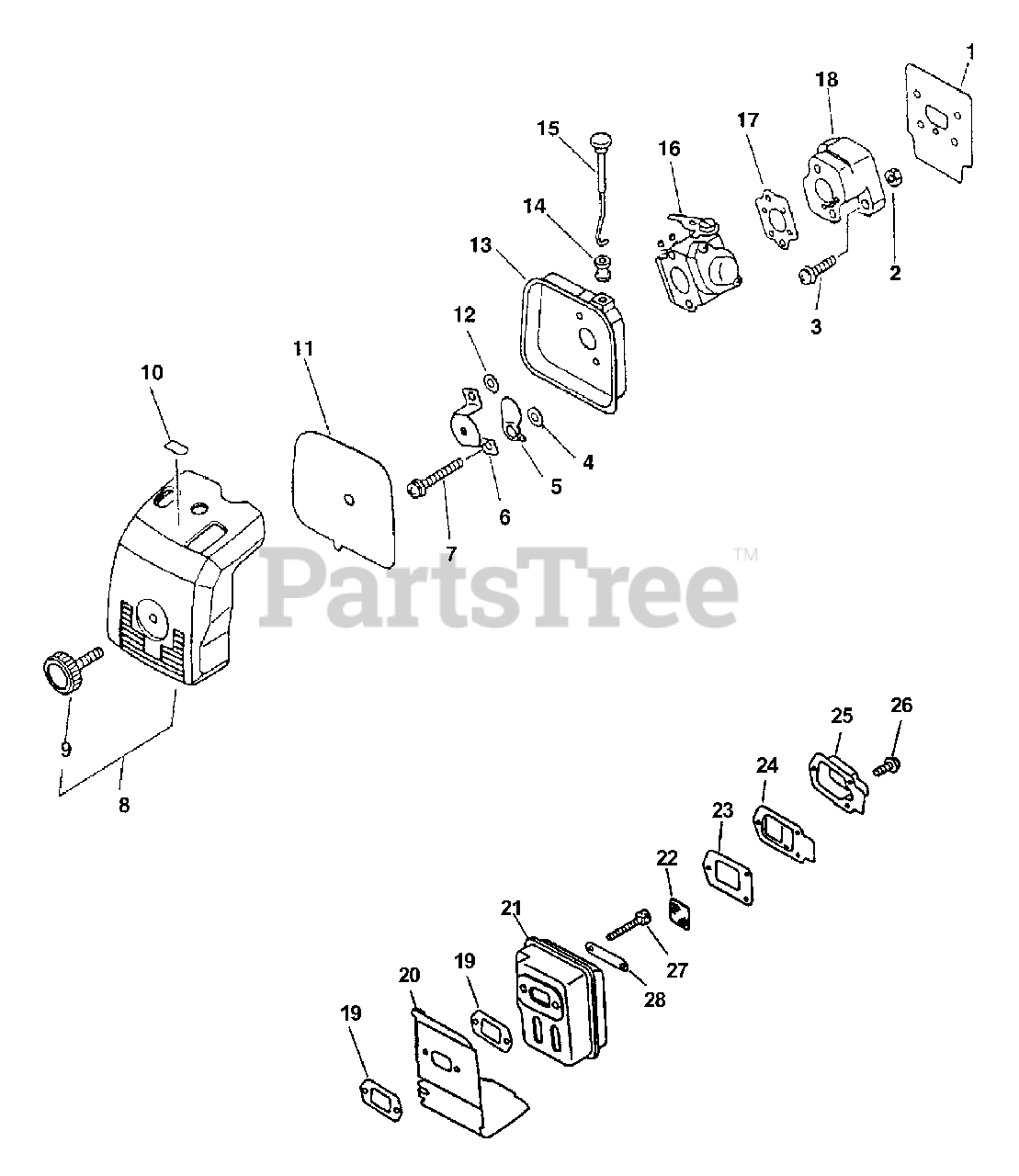

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: USE GASKET KIT P/N 88900021460

$2.99

$

In Stock, Qty 10

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

4

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

5

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 2 left!

0

6

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$6.49

$

In Stock, only 1 left!

0

7

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

8

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 9

$17.99

$

In Stock, only 2 left!

0

9

Echo 13040652131

THUMBSCREW

$6.49

$

In Stock, Qty 20+

0

10

Echo 89012152130

LABEL, CHOKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 89012112330

LABEL - CHOKE

Note: CANADA MODELS

$0.99

$

Usually ships in 2-4 days

0

11

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

In Stock, Qty 9

0

12

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

14

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

15

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

16

Echo 12300052133

CARBURETOR - WT-424C

$113.99

$

In Stock, only 1 left!

0

17

Echo 13001005960

GASKET, CARBURETOR

Note: USE GASKET KIT P/N 88900021460

$1.99

$

In Stock, Qty 6

0

18

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

19

Echo V104000160

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900021460

$2.49

$

In Stock, Qty 20+

0

20

Echo 14563142030

HEAT SHIELD, EXHAUST
(Superseded to A320000250)

$5.99

$

In Stock, only 2 left!

0

21

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: USE GASKET KIT P/N 88900021460

$2.99

$

In Stock, only 2 left!

0

24

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

25

Echo 14581852130

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

27

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

28

Echo 14564204930

WASHER

$1.99

$

In Stock, Qty 5

0

Echo 88900021460

GASKET KIT

$

$

Not available
