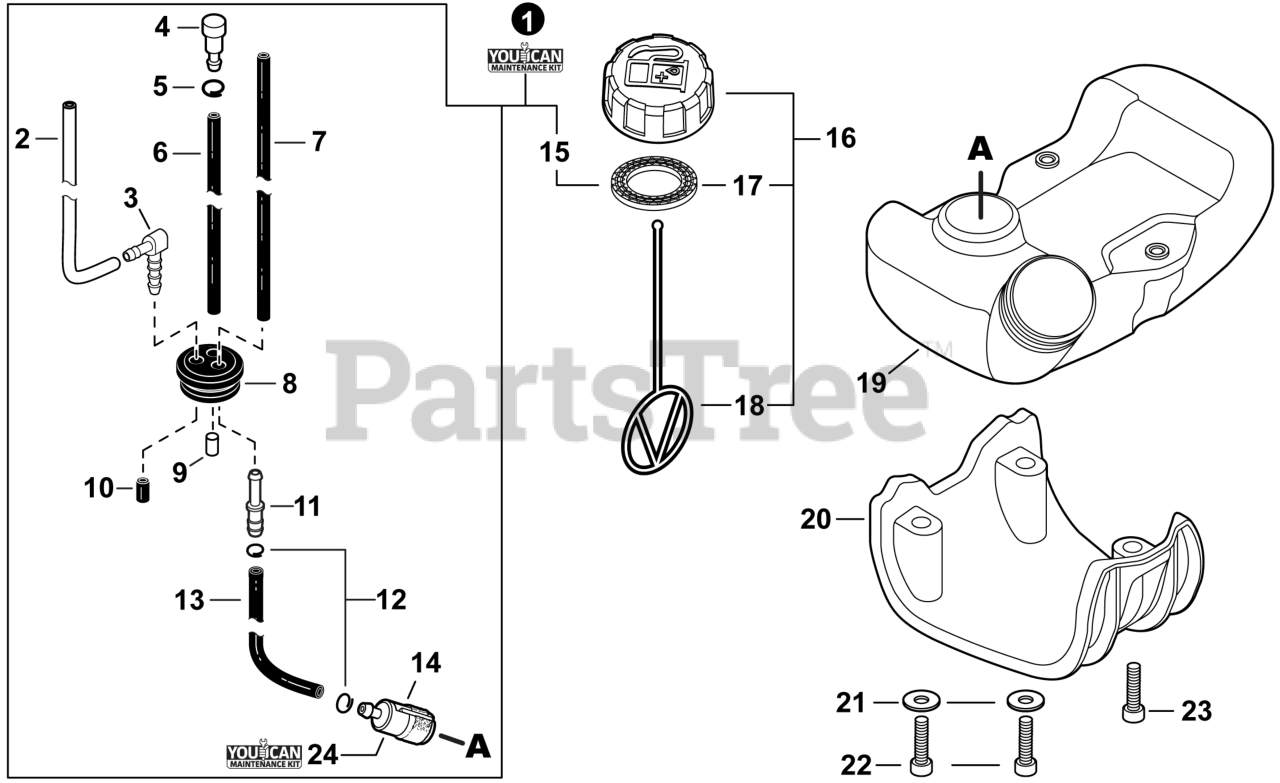

SHC-2620 S - Echo Shaft Hedge Trimmer (SN: U28515001001 - U28515999999) Fuel System Parts Diagram

Shaft Hedge Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 90182Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes ITEMS 2-15 Maintenance Kit

$37.99

$

In Stock, Qty 17

0

2

Echo 13201256030

PIPE, FUEL 3×6×80 YELLOW

$3.49

$

In Stock, Qty 9

0

3

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 13201006531

PIPE, FUEL 3×6×85 BLACK

$2.99

$

In Stock, only 1 left!

0

7

Echo V471005650

PIPE, FUEL 3×5.5×83 BLACK

$3.99

$

In Stock, Qty 17

0

8

Echo 13211555931

GROMMET, FUEL

$2.99

$

In Stock, Qty 20+

0

9

Echo 13131435430

FILTER, VENT

$1.49

$

In Stock, Qty 7

0

10

Echo V471005440

PIPE, FUEL 3×7×10 BLACK

$0.99

$

Usually ships in 2-4 days

0

11

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

12

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

13

Echo V471003651

PIPE, FUEL - 3×5×125 - BLACK

$1.99

$

In Stock, Qty 11

0

14

Echo A369000470

FILTER, FUEL

Note: Included in Tune-up Kit

$9.99

$

In Stock, Qty 20+

0

15

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.99

$

In Stock, Qty 20+

0

16

Echo P021053030

CAP ASSY, FUEL
(Superseded to P021040430)

Note: Includes ITEMS 17-18

$6.99

$

In Stock, Qty 20+

0

17

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.99

$

In Stock, Qty 20+

0

18

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

19

Echo A350002341

FUEL TANK, (2620 SERIES) 2020

$35.99

$

In Stock, Qty 7

0

20

Echo A175000040

GUARD, FUEL TANK

$9.99

$

In Stock, only 2 left!

0

21

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

22

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

23

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

24

Echo 90181Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$44.99

$

In Stock, Qty 16

0
