Shield (SZSH1K54691KR) - Spartan 54" Zero-Turn Mower (SN: 417540000 - 418499999) 54 Inch Deck Assembly Parts Diagram

54" Zero-Turn Mower

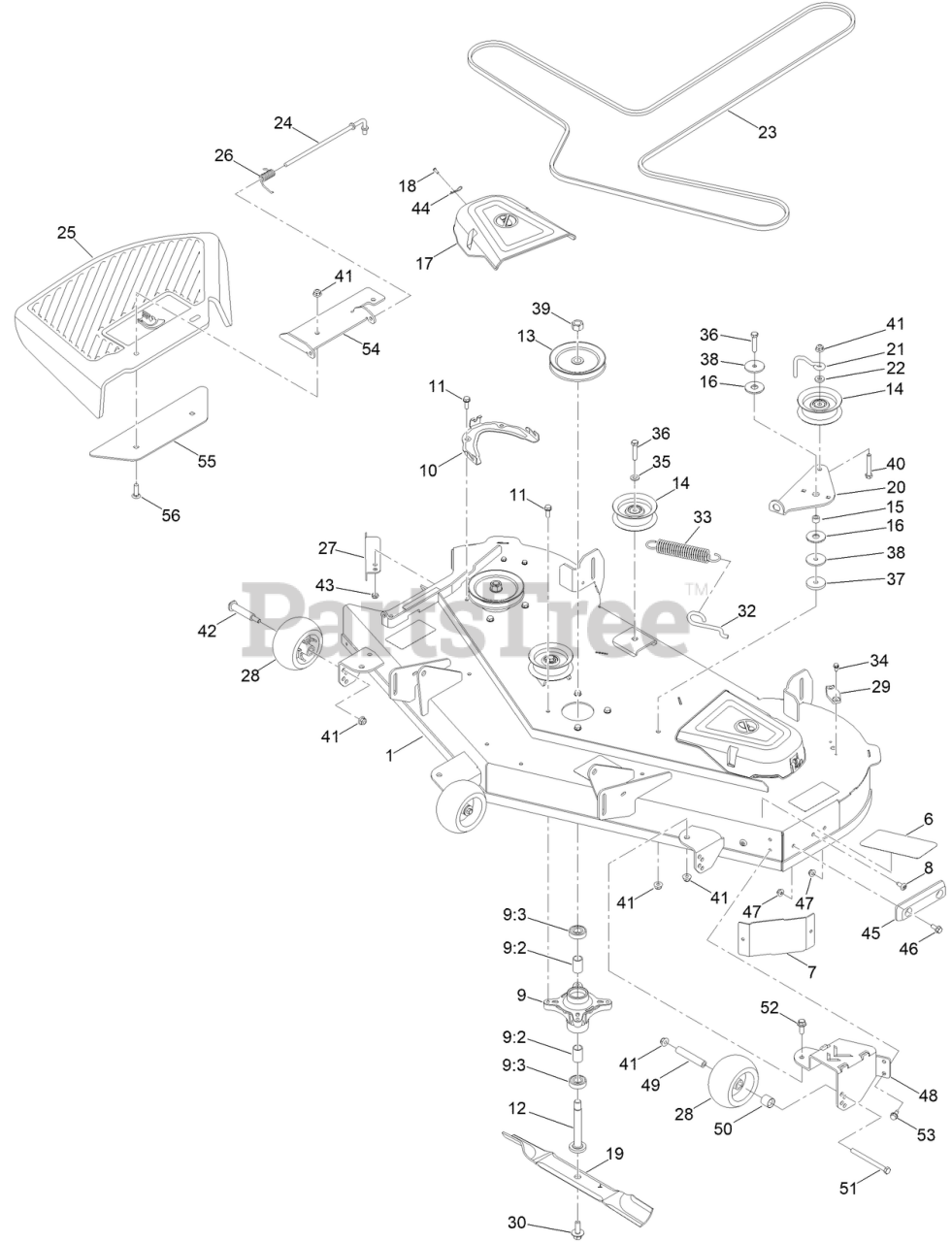

54 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 161-6439

54 IN DECK AND DECAL ASM

$

$

Currently unavailable

6

Toro 148-0438

DECAL-DECK 54in

$

$

Currently unavailable

7

Toro 139-2448-03

BAFFLE-CORNER

$26.99

$

In Stock, only 2 left!

0

8

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-3214

SPINDLE ASM

$82.99

$

In Stock, Qty 20+

0

9:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

9:3

Toro 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 20+

0

10

Toro 139-3272-03

BRACKET-COVER, BELT

$13.99

$

In Stock, only 3 left!

0

11

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

12

Toro 117-7268

SHAFT-SPINDLE

$33.99

$

In Stock, Qty 20+

0

13

Toro 138-7261

PULLEY ASM

$15.99

$

In Stock, Qty 6

0

14

Toro 132-9420

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

15

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

16

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

17

Toro 144-1906

COVER-BELT

$12.99

$

In Stock, Qty 20+

0

18

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

19

Toro 115-2454-03

BLADE-HI LIFT

$31.99

$

In Stock, Qty 20+

0

20

Toro 138-7262

ARM-IDLER

$19.99

$

In Stock, only 3 left!

0

21

Toro 138-7270

GUIDE-BELT, IDLER

$2.99

$

In Stock, Qty 8

0

22

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, only 3 left!

0

23

Toro 147-2910

BELT-V (A SEC, 145.5 EL)

$85.99

$

In Stock, Qty 20+

0

24

Toro 137-2019

ROD-PIVOT

$13.99

$

In Stock, Qty 20+

0

25

Toro 148-0399

DEFLECTOR-DISCHARGE

$

$

Currently unavailable

26

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

27

Toro 138-9800-03

BAFFLE-CUTOFF

$11.99

$

In Stock, Qty 15

0

28

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

29

Toro 136-4171

COVER-WASHOUT PORT

$3.49

$

Usually ships in 3-6 days

0

30

Toro 145-0411

BOLT-BLADE, SEMS

$3.99

$

In Stock, Qty 20+

0

32

Toro 138-7266

SPRING-RETURN, HOOK

$5.99

$

In Stock, Qty 18

0

33

Toro 138-7264

SPRING-EXTENSION

$8.99

$

In Stock, Qty 10

0

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

38

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

39

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

40

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

43

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

44

Toro 144-1944

PIN-HAIR

$1.49

$

In Stock, Qty 20+

0

45

Toro 148-0117

BUMPER-NYLON

$7.49

$

Usually ships in 3-6 days

0

46

Toro 139-2598

SCREW-HHF

$1.49

$

In Stock, only 2 left!

0

47

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

48

Toro 148-0070-P11

PLATE-STEP

$

$

Currently unavailable

49

Toro 138-7229

TUBE-SPANNER

$6.99

$

In Stock, Qty 10

0

50

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

In Stock, Qty 20+

0

51

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

52

Toro 139-2597

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

53

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

54

Toro 161-6436-P11

BRACKET-DISCHARGE, TOP

$

$

Currently unavailable

55

Toro 161-6438-P11

SUPPORT-DEFLECTOR

$

$

Currently unavailable

56

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0
