SHP-800 - Echo Power Sprayer (SN: 500005065 - 500999999) Chemical Tank Parts Diagram

Power Sprayer

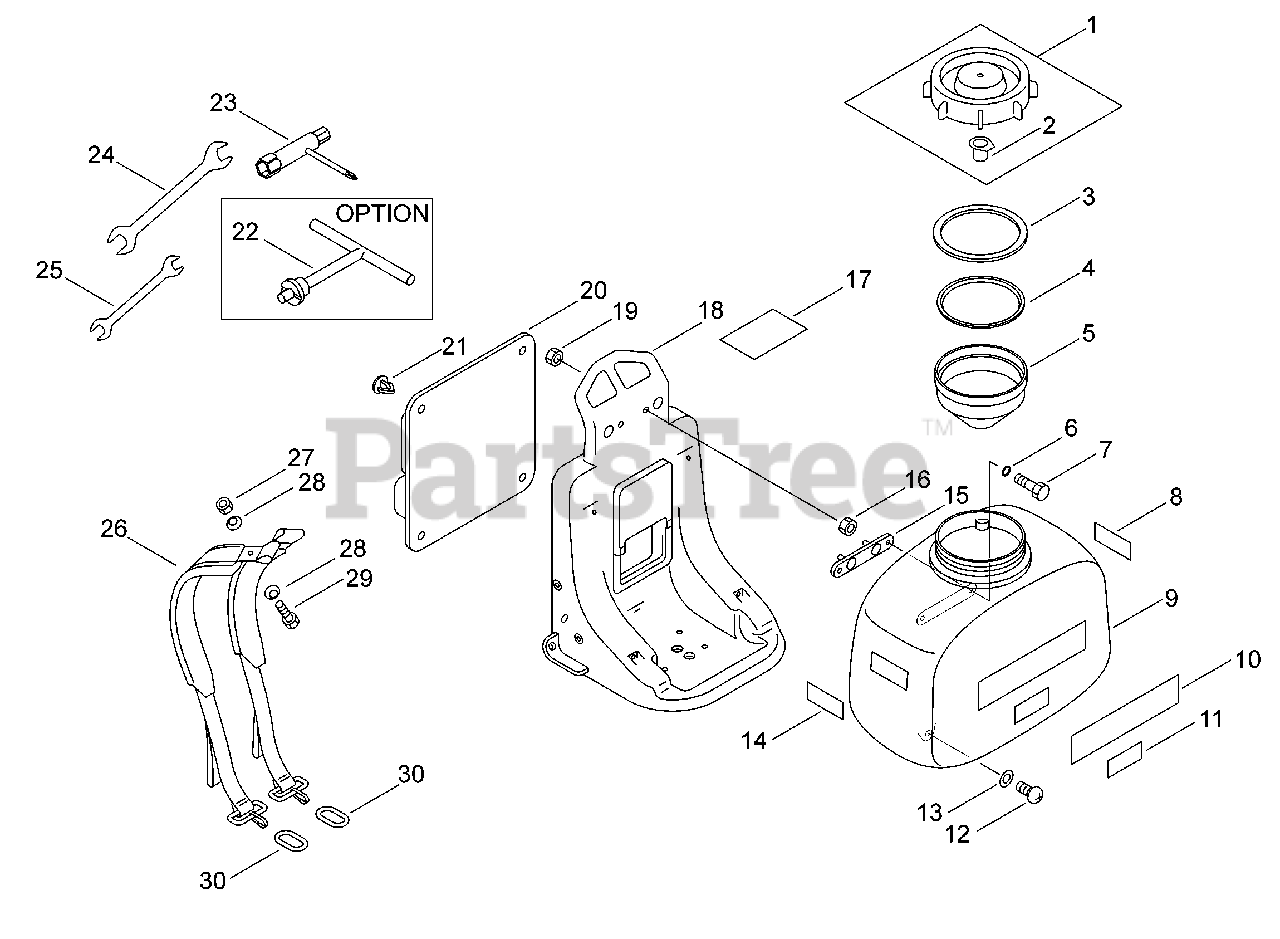

Chemical Tank Parts Diagram

  • Title

1

Echo 70604001A61

CAP, CHEMICAL TANK

Note: Includes item 2

$19.99

$

Usually ships in 2-4 days

0

2

Echo 70604002760

BREATHER

$2.99

$

Usually ships in 2-4 days

0

3

Echo 70604003770

GASKET, CHEMICAL TANK

$17.99

$

Usually ships in 2-4 days

0

4

Echo 70617057760

RING

$8.99

$

Usually ships in 2-4 days

0

5

Echo 70617004761

FILTER, TANK

$26.99

$

Usually ships in 2-4 days

0

6

Echo 90072200100

O-RING P-10A

$1.49

$

Usually ships in 2-4 days

0

7

Echo 25391310910

BOLT

$6.99

$

Usually ships in 2-4 days

0

8

Echo 70604005091

LABEL, CAUTION L-E
(Superseded to 70604005092)

$2.99

$

Usually ships in 2-4 days

0

8

Echo 70604005092

LABEL, CAUTION

$2.99

$

Usually ships in 2-4 days

0

9

Echo 70617005560

TANK, CHEMICAL

$169.99

$

Usually ships in 2-4 days

0

10

Echo 89011812710

LABEL, ECHO
(Superseded to X502000470)

$10.99

$

Usually ships in 2-4 days

0

11

Echo 70617009091

LABEL, MODEL

$2.49

$

Usually ships in 2-4 days

0

12

Echo 70617010910

SCREW, TAPPING

$3.49

$

Usually ships in 2-4 days

0

13

Echo 70617011850

WASHER

$1.49

$

Usually ships in 2-4 days

0

14

Echo 70617012092

LABEL, CAUTION

$2.99

$

Usually ships in 2-4 days

0

15

Echo 70617013410

BRACKET, TANK

$13.99

$

Usually ships in 2-4 days

0

16

Echo 90051800006

NUT, FLANGE 6

$1.99

$

In Stock, Qty 20+

0

17

Echo 70617030060

BAG, POLY

$1.49

$

Usually ships in 2-4 days

0

18

Echo 70617016A62

FRAME ASSY, BACKPACK

$164.99

$

Usually ships in 2-4 days

0

19

Echo 70617017960

NUT, FLANGE 6

$3.99

$

Usually ships in 2-4 days

0

20

Echo 30011114010

CUSHION, BACKPACK

$65.99

$

Usually ships in 2-4 days

0

21

Echo 70617019062

CLIP

$1.49

$

Usually ships in 2-4 days

0

22

Echo 70617055030

TOOL, DRIVER

$33.99

$

Usually ships in 2-4 days

0

23

Echo 89541010630

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

24

Echo 70617031030

SPANNER 14×17

$13.99

$

Usually ships in 2-4 days

0

25

Echo 70617032030

SPANNER 10×12

$8.99

$

Usually ships in 2-4 days

0

26

Echo 70617020082

HARNESS, BACKPACK

$50.99

$

Usually ships in 2-4 days

0

27

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

28

Echo 70604020850

WASHER

$1.99

$

Usually ships in 2-4 days

0

29

Echo 90021605014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

30

Echo 70634008950

RING, HARNESS

$1.49

$

Usually ships in 2-4 days

0
