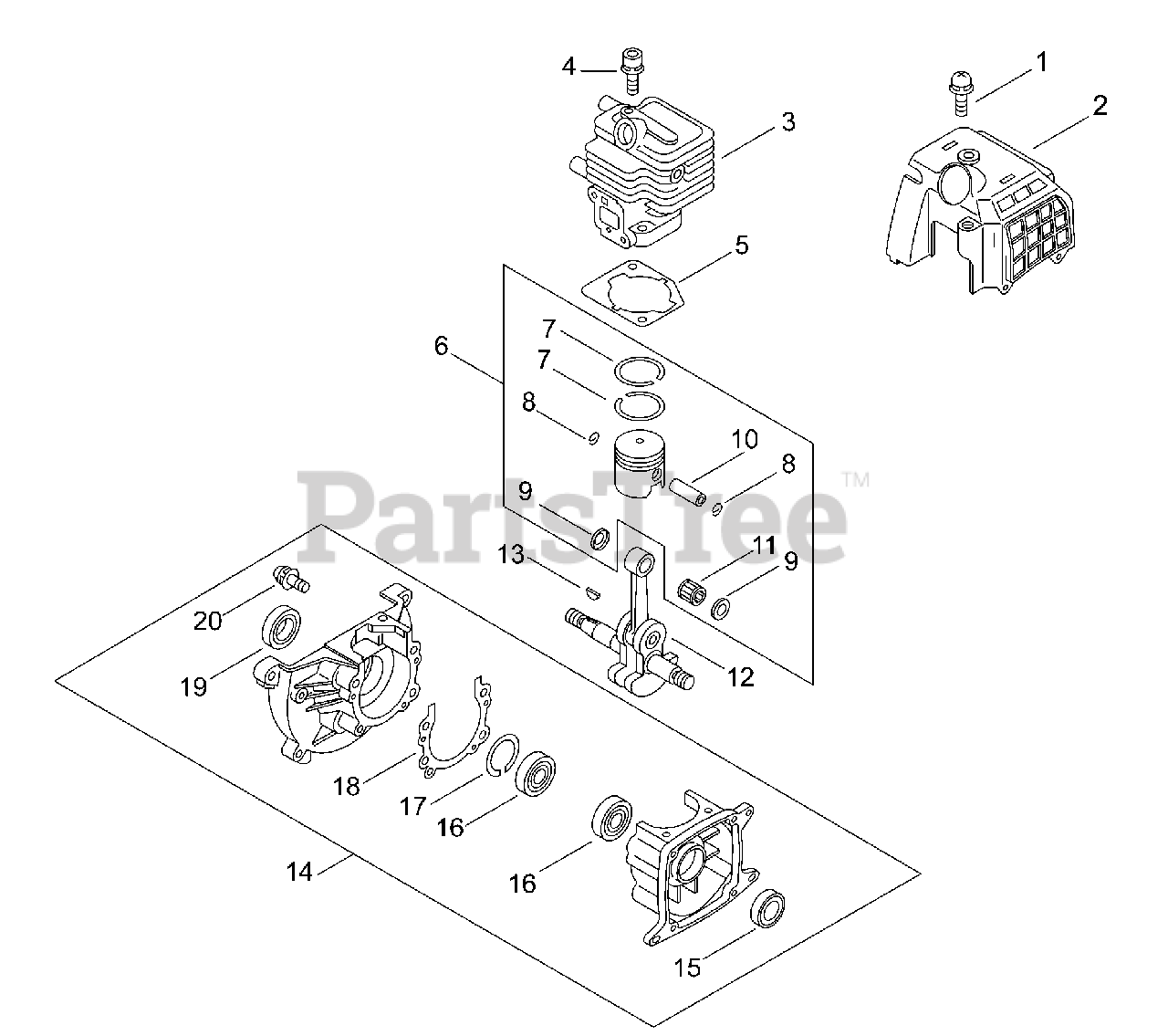

SHP-800 - Echo Power Sprayer (SN: 500005065 - 500999999) Crankcase Parts Diagram

Power Sprayer

Crankcase Parts Diagram

  • Title

1

Echo 90024205014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

2

Echo A160000030

COVER, CYLINDER

$24.99

$

Usually ships in 2-4 days

0

3

Echo 10101155931

CYLINDER

$161.99

$

Usually ships in 2-4 days

0

4

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

5

Echo 10101055930

GASKET, CYLINDER

$4.99

$

Usually ships in 2-4 days

0

6

Echo P021014440

PISTON KIT

Note: Includes Items 7-11

$95.99

$

Usually ships in 2-4 days

0

7

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

8

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001455930

WASHER, THRUST 8×13×2

$3.49

$

Usually ships in 2-4 days

0

10

Echo 10001322330

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

11

Echo V553000020

BEARING, NEEDLE 8
(Superseded to V553000140)

$10.99

$

In Stock, only 1 left!

0

12

Echo 10010055931

CRANKSHAFT

$232.99

$

Usually ships in 2-4 days

0

13

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

14

Echo 10020457031

CRANKCASE KIT

Note: Includes Items 15-20

$174.99

$

Usually ships in 2-4 days

0

15

Echo 10021305530

SEAL, OIL 12

$6.49

$

In Stock, Qty 9

0

16

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, Qty 8

0

17

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 20+

0

18

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

0

19

Echo 90024205025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10021228230

SEAL, OIL 12

$4.49

$

In Stock, Qty 9

0
