SHP-800 - Echo Power Sprayer (SN: H05000001001 - H05000999999) Carburetor Parts Diagram

Power Sprayer

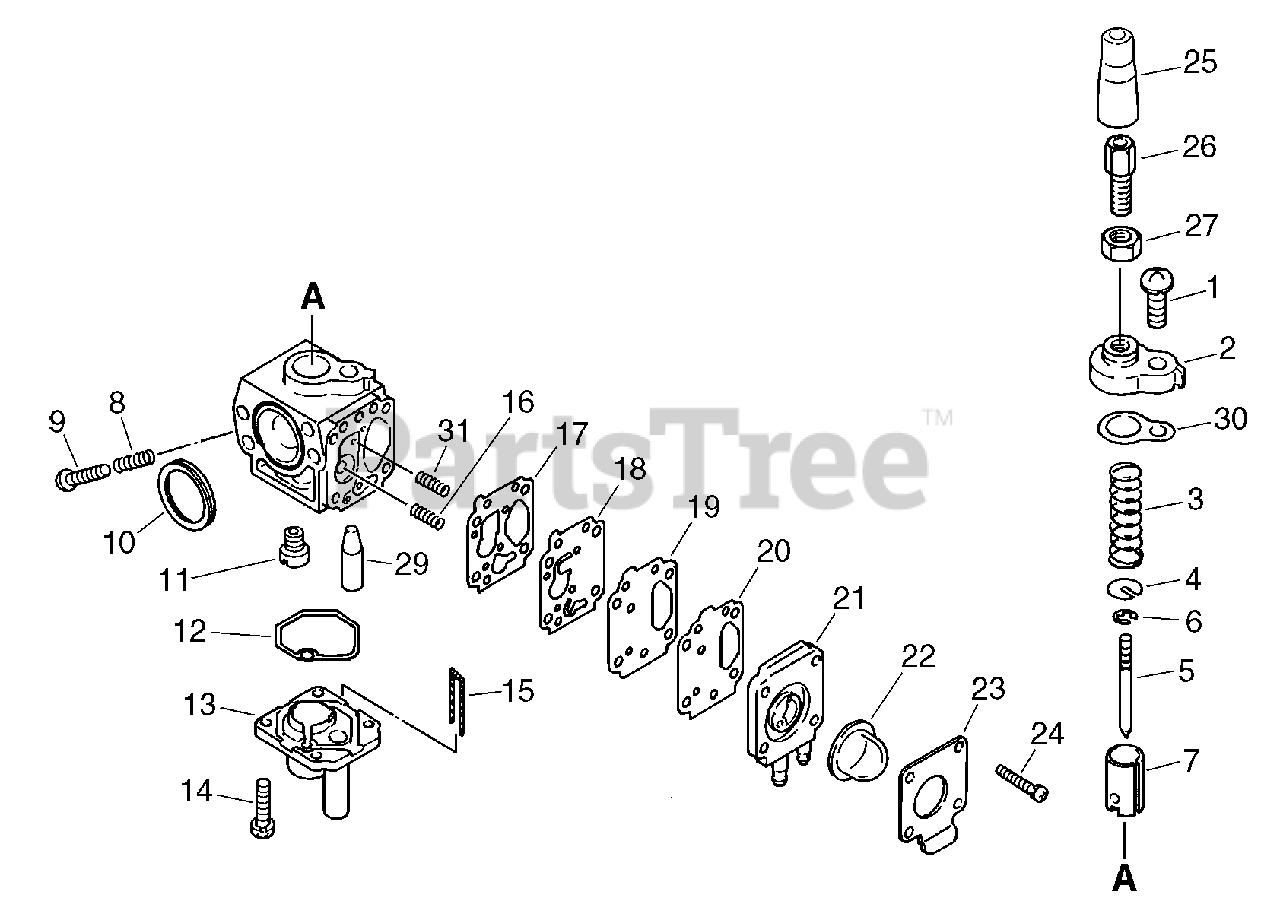

Carburetor Parts Diagram

  • Title

Echo 12420013220

CARBURETOR

Note: Includes ITEMS 1-31

$149.99

$

Usually ships in 2-4 days

0

1

Echo 90024105016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12411313410

COVER - TOP

$21.99

$

Usually ships in 2-4 days

0

3

Echo 12411405530

SPRING, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12411505530

SEAT, SPRING

$1.99

$

In Stock, Qty 16

0

5

Echo 12431749930

NEEDLE, JET

$9.49

$

Usually ships in 2-4 days

0

6

Echo 12411605530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12431857030

VALVE, THROTTLE

$24.99

$

Usually ships in 2-4 days

0

8

Echo 12416011120

SPRING

$2.49

$

In Stock, only 1 left!

0

9

Echo 12412913410

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

10

Echo 12414913410

SEAL

$4.99

$

In Stock, only 2 left!

0

11

Echo 12412215310

JET, MAIN

$6.49

$

Usually ships in 2-4 days

0

12

Echo 12412313410

GASKET, CHAMBER

$8.49

$

Usually ships in 2-4 days

0

13

Echo 12412413410

CHAMBER, FLOAT

$36.99

$

Usually ships in 2-4 days

0

14

Echo 90024103010

SCREW - 3X10

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12418213410

WIRE, DRAIN

$8.49

$

Usually ships in 2-4 days

0

16

Echo 12435550130

SPRING

$1.99

$

In Stock, Qty 7

0

17

Echo 12436112710

GASKET, PUMP

$2.99

$

In Stock, only 2 left!

0

18

Echo 12436412710

DIAPHRAGM, PUMP

$15.99

$

Usually ships in 2-4 days

0

19

Echo 12436212710

PLATE, PUMP

$18.99

$

In Stock, only 1 left!

0

20

Echo 12436312710

GASKET, PUMP

$6.99

$

Usually ships in 2-4 days

0

21

Echo 12436513410

COVER, PUMP

$30.99

$

Usually ships in 2-4 days

0

22

Echo 12438012710

BULB, PURGE

$9.99

$

In Stock, only 4 left!

0

23

Echo 12434212710

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

24

Echo 90024103014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

25

Echo 12417413410

COVER, DUST

$7.99

$

Usually ships in 2-4 days

0

26

Echo 12415813410

NUT, CABLE ADJUST
(Superseded to 12415813411)

$8.49

$

In Stock, only 3 left!

0

26

Echo 12415813411

NUT, CABLE ADJUST

$8.49

$

In Stock, only 3 left!

0

27

Echo 12411105810

LOCKNUT

$3.49

$

In Stock, only 4 left!

0

29

Echo 12416213410

JET, MAIN - 64

$40.99

$

Usually ships in 2-4 days

0

30

Echo 12417213410

PACKING

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12436754230

SPRING

$3.99

$

Usually ships in 2-4 days

0
