SHP-800 RS - Echo Power Sprayer (SN: 001300000001 - 001300999999) Starter Parts Diagram

Power Sprayer

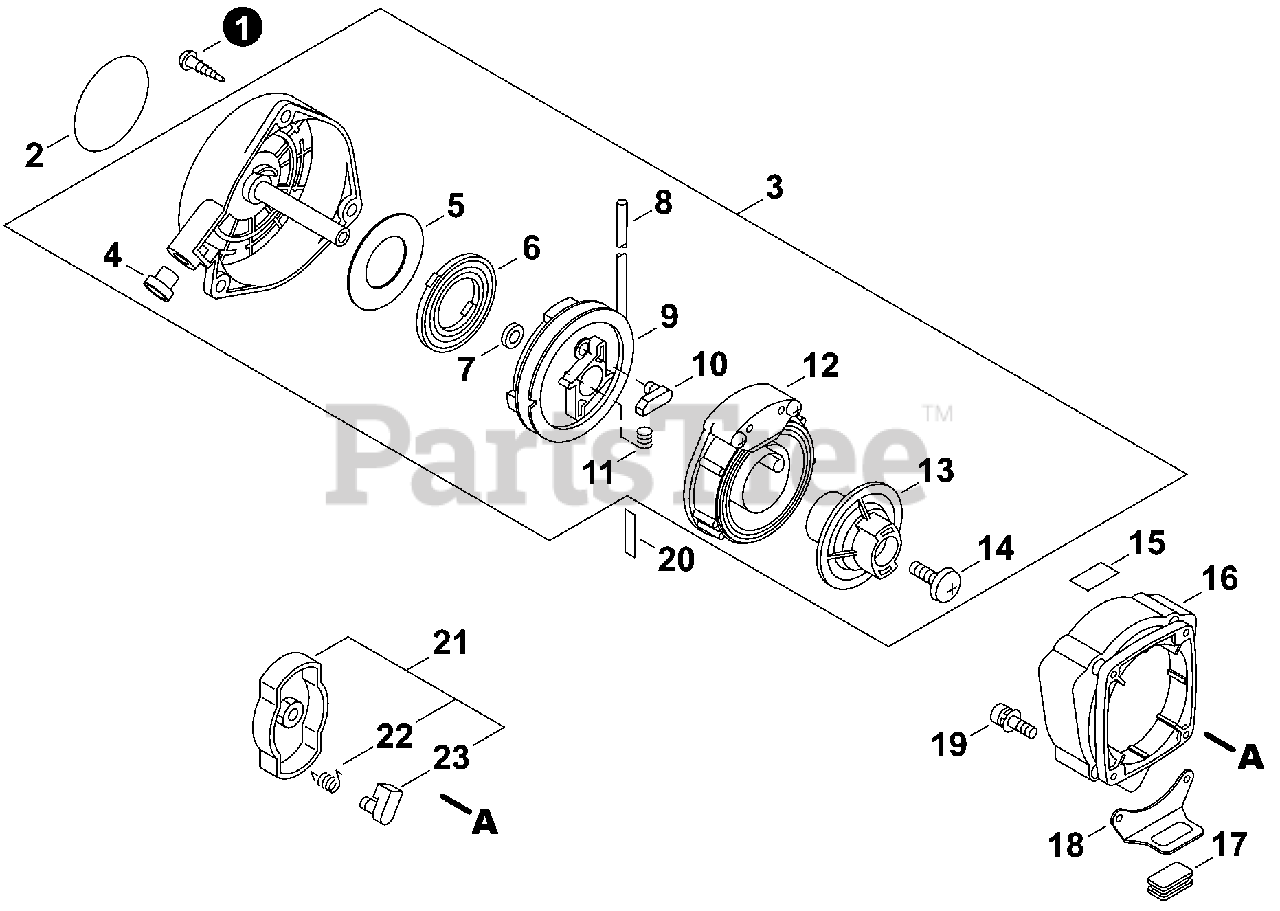

Starter Parts Diagram

  • Title

1

Echo 90025305020

SCREW, TAPPING 5x20

$1.49

$

In Stock, Qty 19

0

2

Echo 70642031090

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

3

Echo A051000521

STARTER ASSY, RECOIL

Note: Includes ITEMS 4-14

$160.99

$

Usually ships in 2-4 days

0

4

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

5

Echo A503000010

PLATE, STARTER

$3.99

$

Usually ships in 2-4 days

0

6

Echo A504000001

SPRING, RECOIL

$17.99

$

Usually ships in 2-4 days

0

7

Echo V355000080

COLLAR 8

$1.99

$

Usually ships in 2-4 days

0

8

Echo A509000030

ROPE, STARTER 3x1300

$7.99

$

Usually ships in 2-4 days

0

9

Echo A506000010

REEL, ROPE

$13.99

$

Usually ships in 2-4 days

0

10

Echo A514000010

PAWL

$3.49

$

Usually ships in 2-4 days

0

11

Echo V450000130

SPRING, COMPRESSION

$3.99

$

Usually ships in 2-4 days

0

12

Echo P021004030

SPRING ASSY, POWER

$74.99

$

Usually ships in 2-4 days

0

13

Echo A520000002

PULLEY, STARTER

$5.99

$

Usually ships in 2-4 days

0

14

Echo V253000060

SCREW 5

$1.49

$

Usually ships in 2-4 days

0

15

Echo X505002310

LABEL - CAUTION - HOT

$1.99

$

In Stock, only 4 left!

0

16

Echo V376000160

COVER, RECOIL STARTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 30511703360

CUSHION

$3.99

$

In Stock, Qty 10

0

18

Echo V152000990

PLATE, ANGLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 90016204014

BOLT 4x14

$1.49

$

In Stock, Qty 20+

0

20

Echo X505000620

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

21

Echo 17720212220

PAWL ASSY, STARTER

Note: Includes ITEMS 22-23

$18.99

$

In Stock, Qty 7

0

22

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

23

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0
