SHR-200 E - Echo Power Sprayer Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition Parts Diagram

Power Sprayer

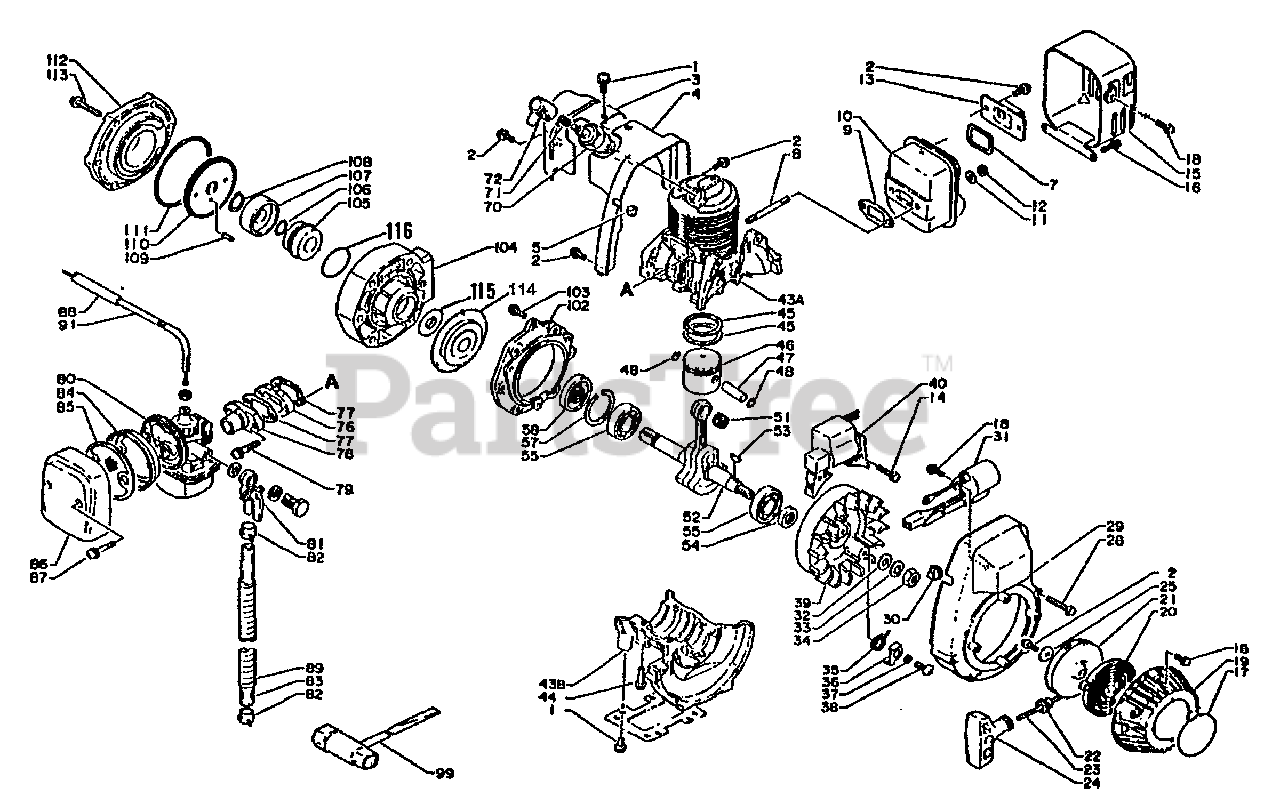

Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition Parts Diagram

  • Title

1

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10152910510

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

4

Echo 10151408020

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo 15211505530

GROMMET

$0.99

$

In Stock, Qty 8

0

7

Echo 14586608021

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

8

Echo 10101400560

STUD

$2.99

$

Usually ships in 2-4 days

0

9

Echo 14551008021

GASKET, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

10

Echo 14585808021

MUFFLER

$18.99

$

Usually ships in 2-4 days

0

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

13

Echo 14580910510

GUIDE, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

14

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

15

Echo 14562110510

COVER, MUFFLER

$22.99

$

Usually ships in 2-4 days

0

16

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

17

Echo 89011226730

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

Echo 17720008020

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2, 19-25

$

$

Not available

19

Echo 17720908020

CASE, STARTER

$32.99

$

Usually ships in 2-4 days

0

20

Echo 17722006530

SPRING, REWIND

$16.99

$

In Stock, only 2 left!

0

21

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

23

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 10

0

24

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

25

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

28

Echo 90024204040

SCREW - 4X40

$0.99

$

Usually ships in 2-4 days

0

29

Echo 10151110510

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

30

Echo 15211205730

GROMMET

$0.99

$

Usually ships in 2-4 days

0

31

Echo 15662608020

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

32

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

33

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

34

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

35

Echo 17723408020

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

36

Echo 17721804920

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

37

Echo 17724704630

SPACER

$2.49

$

In Stock, only 2 left!

0

38

Echo 90021605014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

39

Echo 15680108021

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

40

Echo 15660108020

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

43

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

$

$

Not available

43A

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

Note: See Ref No. 43, CASE, CYLINDER SET, P/N 10020008022

$

$

Not available

43B

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

Note: See Ref No. 43, CASE, CYLINDER SET, P/N 10020008022

$

$

Not available

44

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

45

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

46

Echo 10001009030

PISTON

$39.99

$

Usually ships in 2-4 days

0

47

Echo 10001310210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

48

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

51

Echo 10001208020

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

52

Echo 10010010511

CRANKSHAFT ASSY

$238.99

$

Usually ships in 2-4 days

0

53

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

54

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 10

0

55

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

57

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

58

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 15

0

70

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

71

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 11

0

72

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

76

Echo 13001721230

INSULATOR, INTAKE

$3.99

$

Usually ships in 2-4 days

0

77

Echo 13001008421

GASKET, INTAKE

$3.49

$

Usually ships in 2-4 days

0

78

Echo 13051021230

ADAPTOR, INTAKE

$5.49

$

Usually ships in 2-4 days

0

79

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

80

Echo 12000010512

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

81

Echo 13220000512

FUEL VALVE ASSY

$14.99

$

Usually ships in 2-4 days

0

82

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.99

$

Usually ships in 2-4 days

0

83

Echo 13201010510

PIPE - FUEL

$3.49

$

Usually ships in 2-4 days

0

84

Echo 13031405530

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

85

Echo 13031005730

FILTER, AIR

$4.49

$

Usually ships in 2-4 days

0

86

Echo 13031305530

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

87

Echo 90024204028

SCREW - 4X28

$0.99

$

Usually ships in 2-4 days

0

88

Echo 17812710510

TUBE
(Superseded to Discontinued)

$

$

Not available

89

Echo 13201510510

TUBE, SPIRAL

$2.49

$

Usually ships in 2-4 days

0

91

Echo 17800110510

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

99

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$4.49

$

In Stock, Qty 8

0

102

Echo 10028010510

BRACKET, PUMP
(Superseded to Discontinued)

$

$

Not available

103

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 13

0

104

Echo 40521010512

CASE, PUMP

Note: INCLUDES ITEM 116

$92.99

$

Usually ships in 2-4 days

0

105

Echo 40510011010

SEAL

$105.99

$

Usually ships in 2-4 days

0

106

Echo 40511110510

O-RING
(Superseded to 90072430010)

$3.99

$

In Stock, only 1 left!

0

107

Echo 40510310510

PLATE, DRIVE

$30.99

$

Usually ships in 2-4 days

0

108

Echo 90070400012

RING, RETAINING - 12

$2.49

$

In Stock, only 3 left!

0

109

Echo 40511310510

PIN

$2.49

$

Usually ships in 2-4 days

0

110

Echo 40511010512

IMPELLER

$113.99

$

Usually ships in 2-4 days

0

111

Echo 40521210510

O-RING
(Superseded to 90072430067)

$14.99

$

In Stock, only 1 left!

0

112

Echo 40521110511

LID, PUMP

$51.99

$

In Stock, only 1 left!

0

113

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 15

0

114

Echo 10027110510

PLATE

$5.99

$

Usually ships in 2-4 days

0

115

Echo 40511410510

PLATE, SEAL

$2.49

$

In Stock, only 1 left!

0

116

Echo 90072400029

O-RING - 29

$3.49

$

In Stock, only 2 left!

0
