SHR-200 E - Echo Power Sprayer Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition Parts Diagram

Power Sprayer

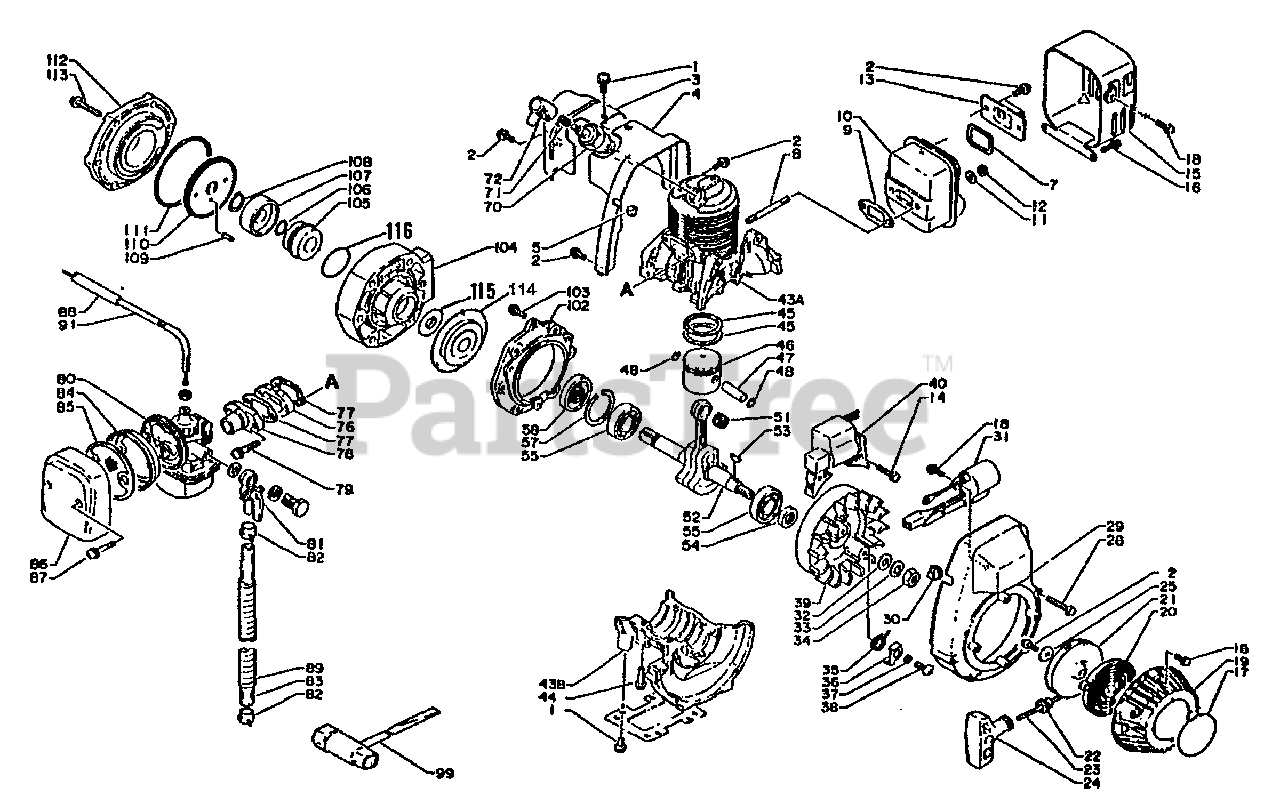

Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition Parts Diagram

  • Title

1

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

2

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

3

Echo 10152910510

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

4

Echo 10151408020

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo 15211505530

GROMMET

$0.99

$

In Stock, Qty 7

0

7

Echo 14586608021

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

8

Echo 10101400560

BOLT, STUD

$2.99

$

Usually ships in 2-4 days

0

9

Echo 14551008021

GASKET, MUFFLER

$2.99

$

Usually ships in 2-4 days

0

10

Echo 14585808021

MUFFLER

$18.99

$

Usually ships in 2-4 days

0

11

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

13

Echo 14580910510

COVER, MUFFLER

$5.49

$

Usually ships in 2-4 days

0

14

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

15

Echo 14562110510

COVER, MUFFLER

$22.99

$

Usually ships in 2-4 days

0

16

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

17

Echo 89011226730

LABEL, ECHO
(Superseded to Discontinued)

$

$

Not available

18

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

Echo 17720008020

STARTER ASSY, RECOIL
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2, 19-25

$

$

Not available

19

Echo 17720908020

CASE, RECOIL STARTER

$32.99

$

Usually ships in 2-4 days

0

20

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, only 2 left!

0

21

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

23

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, only 3 left!

0

24

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

25

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

28

Echo 90024204040

SCREW 4×40

$0.99

$

Usually ships in 2-4 days

0

29

Echo 10151110510

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

30

Echo 15211205730

GROMMET

$0.99

$

Usually ships in 2-4 days

0

31

Echo 15662608020

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

32

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

34

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

35

Echo 17723408020

SPRING, RATCHET

$1.49

$

Usually ships in 2-4 days

0

36

Echo 17721804920

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

37

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

38

Echo 900216-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

39

Echo 15680108021

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

40

Echo 15660108020

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

43

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

$

$

Not available

43A

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

Note: See Ref No. 43, CASE, CYLINDER SET, P/N 10020008022

$

$

Not available

43B

Echo 10020008022

CASE, CYLINDER SET
(Superseded to Discontinued)

Note: See Ref No. 43, CASE, CYLINDER SET, P/N 10020008022

$

$

Not available

44

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

45

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

46

Echo 10001009030

PISTON

$39.99

$

Usually ships in 2-4 days

0

47

Echo 10001310210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

48

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

51

Echo 10001208020

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

52

Echo 10010010511

CRANKSHAFT

$238.99

$

Usually ships in 2-4 days

0

53

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

54

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 4 left!

0

55

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

57

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

58

Echo 10021203930

SEAL, OIL 12

$6.49

$

In Stock, Qty 9

0

70

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

71

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

72

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

76

Echo 13001721230

INSULATOR

$3.99

$

Usually ships in 2-4 days

0

77

Echo 13001008421

GASKET

$3.49

$

Usually ships in 2-4 days

0

78

Echo 13051021230

ADAPTER, INTAKE

$5.49

$

Usually ships in 2-4 days

0

79

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

80

Echo 12000010512

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

81

Echo 13220000512

VALVE, FUEL

$14.99

$

Usually ships in 2-4 days

0

82

Echo 357013-00210

CLAMP
(Superseded to 13201314010)

$3.99

$

Usually ships in 2-4 days

0

83

Echo 13201010510

PIPE, FUEL

$3.49

$

Usually ships in 2-4 days

0

84

Echo 13031405530

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

85

Echo 13031005730

FILTER, AIR

$4.49

$

Usually ships in 2-4 days

0

86

Echo 13031305530

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

87

Echo 90024204028

SCREW 4×28

$0.99

$

Usually ships in 2-4 days

0

88

Echo 17812710510

TUBE, COVER
(Superseded to Discontinued)

$

$

Not available

89

Echo 13201510510

COVER

$2.49

$

Usually ships in 2-4 days

0

91

Echo 17800110510

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

99

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, only 4 left!

0

102

Echo 10028010510

BRACKET, PUMP
(Superseded to Discontinued)

$

$

Not available

103

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

104

Echo 40521010512

CASE, PUMP

Note: INCLUDES ITEM 116

$92.99

$

Usually ships in 2-4 days

0

105

Echo 40510011010

SEAL, MECHANICAL

$105.99

$

Usually ships in 2-4 days

0

106

Echo 40511110510

O-RING
(Superseded to 90072430010)

$3.99

$

In Stock, only 1 left!

0

107

Echo 40510310510

PLATE, DRIVE

$30.99

$

Usually ships in 2-4 days

0

108

Echo 90070400012

E-RING 12

$2.49

$

In Stock, only 3 left!

0

109

Echo 40511310510

PIN

$2.49

$

Usually ships in 2-4 days

0

110

Echo 40511010512

IMPELLER

$113.99

$

Usually ships in 2-4 days

0

111

Echo 40521210510

O-RING
(Superseded to 90072430067)

$14.99

$

In Stock, only 1 left!

0

112

Echo 40521110511

LID, PUMP

$51.99

$

In Stock, only 1 left!

0

113

Echo 90024205040

SCREW 5×40

$0.99

$

In Stock, Qty 14

0

114

Echo 10027110510

PLATE

$5.99

$

Usually ships in 2-4 days

0

115

Echo 40511410510

PLATE

$2.49

$

In Stock, only 1 left!

0

116

Echo 90072400029

O-RING

$3.49

$

In Stock, only 2 left!

0
