SHR-200 E - Echo Power Sprayer Tank Assy, Frame Assy, Hose And Wand Assy Parts Diagram

Power Sprayer

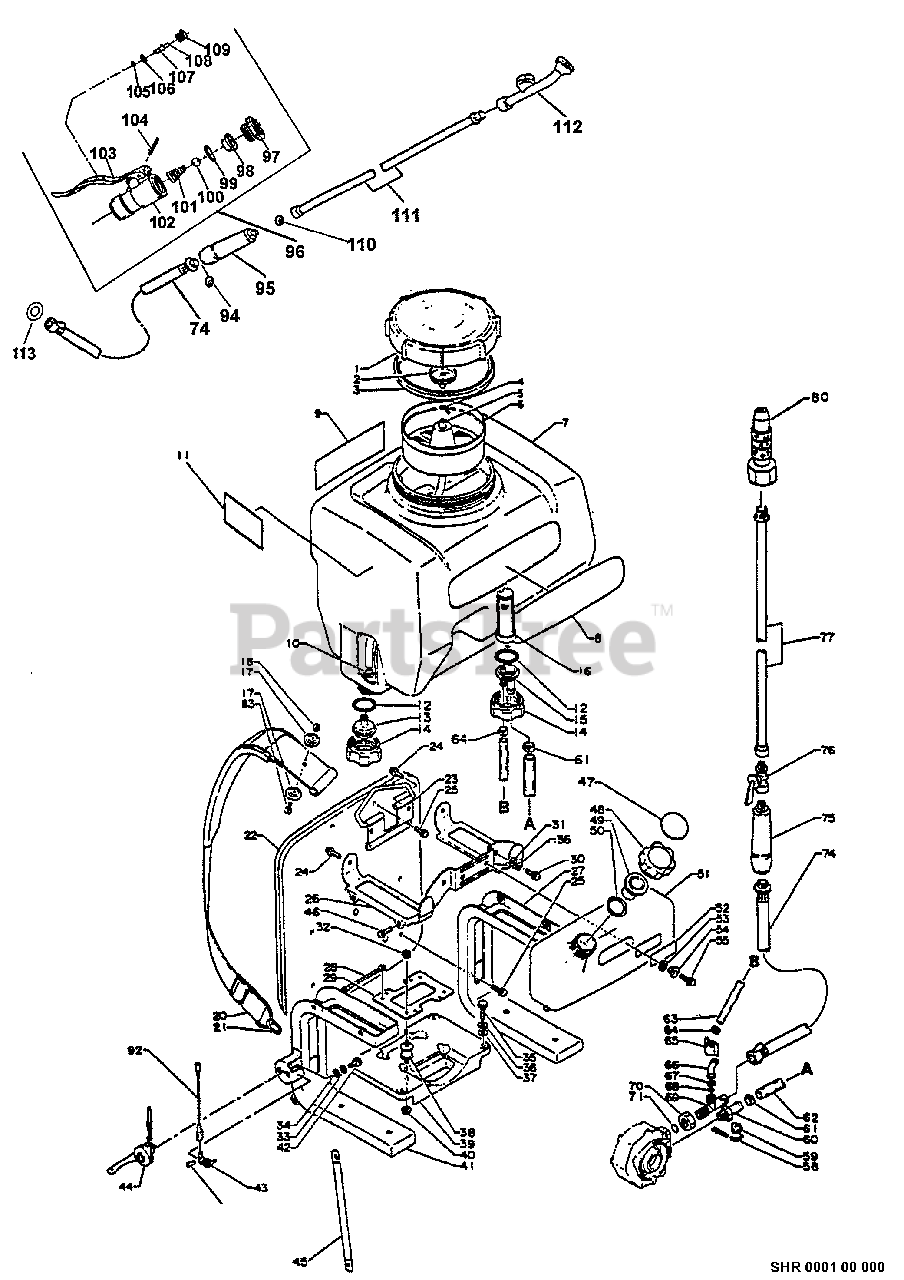

Tank Assy, Frame Assy, Hose And Wand Assy Parts Diagram

  • Title

1

Echo 25000102310

CAP, CHEMICAL TANK

Note: Includes ITEM 2

$30.99

$

Usually ships in 2-4 days

0

2

Echo 250013-00310

CONNECTOR, PIPE

$2.99

$

Usually ships in 2-4 days

0

3

Echo 25001101110

GASKET, CHEMICAL TANK

$9.99

$

In Stock, only 4 left!

0

4

Echo 357013-00210

CLAMP
(Superseded to 13201314010)

$3.99

$

Usually ships in 2-4 days

0

5

Echo 25311110510

HOSE, AIR

$4.99

$

Usually ships in 2-4 days

0

6

Echo 25421010510

FILTER

$13.99

$

Usually ships in 2-4 days

0

7

Echo 25300610510

TANK, CHEMICAL
(Superseded to Discontinued)

$

$

Not available

8

Echo 89013510610

LABEL

$6.99

$

Usually ships in 2-4 days

0

9

Echo 89017810610

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

10

Echo 357013-00210

CLAMP
(Superseded to 13201314010)

$3.99

$

Usually ships in 2-4 days

0

11

Echo 89018410610

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

12

Echo 90072000028

O-RING 28

$3.99

$

In Stock, only 1 left!

0

13

Echo 25311010510

BREATHER
(Superseded to Discontinued)

$

$

Not available

14

Echo 35701510511

NUT

$

$

Not available

15

Echo 35701010510

JOINT

$6.99

$

In Stock, only 1 left!

0

16

Echo 35611110510

FILTER

$7.99

$

In Stock, only 3 left!

0

17

Echo 300328-03210

WASHER 5.2×22×2.0

$1.99

$

Usually ships in 2-4 days

0

18

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

20

Echo 30030203210

BACKPACK STRAP ASSY
(Superseded to 30030207410)

$90.99

$

Usually ships in 2-4 days

0

21

Echo 300319-01611

RING, HARNESS

$0.99

$

In Stock, Qty 5

0

22

Echo 30010510510

CUSHION, BACKPACK

$81.99

$

Usually ships in 2-4 days

0

23

Echo 30061010511

HANGER
(Superseded to Discontinued)

$

$

Not available

24

Echo 900220-06010

SCREW 6×10

$0.99

$

Usually ships in 2-4 days

0

25

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

26

Echo 25390510511

BRACKET
(Superseded to Discontinued)

$

$

Not available

27

Echo 30000510512

FRAME, BACKPACK - RIGHT
(Superseded to Discontinued)

$

$

Not available

28

Echo 16201010510

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

29

Echo 10491410510

PLATE, CUSHION
(Superseded to Discontinued)

$

$

Not available

30

Echo 900220-06010

SCREW 6×10

$0.99

$

Usually ships in 2-4 days

0

31

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 90051500005

NUT - 5 -- FLANGE
(Superseded to 90051800005)

$1.99

$

Usually ships in 2-4 days

0

33

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

34

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

35

Echo 90010006020

BOLT 6×20

$0.99

$

Usually ships in 2-4 days

0

36

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

37

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

38

Echo 10490507230

CUSHION

$9.49

$

Usually ships in 2-4 days

0

39

Echo 10493010510

SUPPORTER

$23.99

$

Usually ships in 2-4 days

0

40

Echo 90051500005

NUT - 5 -- FLANGE
(Superseded to 90051800005)

$1.99

$

Usually ships in 2-4 days

0

41

Echo 30000610611

FRAME, BACKPACK - LEFT
(Superseded to Discontinued)

$

$

Not available

42

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

43

Echo 16340010610

SWITCH, ON-OFF

$12.99

$

In Stock, only 1 left!

0

44

Echo 17800012710

LEVER, CONTROL

$35.99

$

In Stock, only 1 left!

0

45

Echo 30002910610

BAR
(Superseded to Discontinued)

$

$

Not available

46

Echo 90024206014

SCREW 6×14

$0.99

$

In Stock, Qty 7

0

Echo 131604-07132

CAP ASSY

Note: INCLUDES ITEMS 47-50

$

$

Not available

47

Echo 89014706160

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

48

Echo 131604-07132

CAP ASSY

$

$

Not available

49

Echo 131003-05330

CAP, VENT

$3.49

$

Usually ships in 2-4 days

0

50

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 3 left!

0

51

Echo 13101010510

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

52

Echo 89011210610

LABEL - MODEL

$1.49

$

Usually ships in 2-4 days

0

53

Echo 13192502310

CUSHION

$1.99

$

In Stock, Qty 20+

0

54

Echo 13191602310

SPACER
(Superseded to Discontinued)

$

$

Not available

55

Echo 90024206020

SCREW 6×20

$0.99

$

In Stock, Qty 6

0

58

Echo 38200411710

DRAIN PLUG KIT
(Superseded to P021014800)

$6.99

$

Usually ships in 2-4 days

0

59

UNKNOWN

$

$

Not available

60

Echo 38201510510

JOINT, INLET

$5.99

$

Usually ships in 2-4 days

0

61

Echo 37031810210

CLIP

$1.99

$

Usually ships in 2-4 days

0

62

Echo 38201210510

HOSE, INLET
(Superseded to Discontinued)

$

$

Not available

63

Echo 38600010510

HOSE, BYPASS

$2.99

$

Usually ships in 2-4 days

0

64

Echo 38602010510

CLAMP

$

$

Not available

65

Echo 38601510510

NUT, WING
(Superseded to 38601510511)

$4.49

$

Usually ships in 2-4 days

0

66

Echo 38601210511

JOINT, BYPASS

$6.99

$

Usually ships in 2-4 days

0

67

Echo 38601910510

GASKET, BYPASS NOZZLE

$0.99

$

Usually ships in 2-4 days

0

68

Echo 38601810510

WASHER

$0.99

$

Usually ships in 2-4 days

0

69

Echo 38401310512

FITTING, GREASE

$

$

Not available

70

Echo 38402910510

NUT

$3.99

$

Usually ships in 2-4 days

0

71

Echo 90072200010

O-RING
(Superseded to 90072200100)

$1.49

$

Usually ships in 2-4 days

0

74

Echo 38400212710

HOSE, SPRAY

$54.99

$

Usually ships in 2-4 days

0

75

Echo 22411010510

GRIP
(Superseded to 22411012710)

$40.99

$

Usually ships in 2-4 days

0

76

Echo 22440010510

VALVE, NOZZLE
(Superseded to 22440010610)

$65.99

$

In Stock, only 1 left!

0

77

Echo 22410210510

TUBE, NOZZLE
(Superseded to E270000030)

$38.99

$

Usually ships in 2-4 days

0

80

Echo 22410310610

NOZZLE, ADJUSTABLE

$

$

Currently unavailable

83

Echo 900216-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

91

Echo 89015711130

LABEL, ON-OFF

$0.99

$

In Stock, Qty 6

0

92

Echo 16202110610

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

94

Echo 38401203050

GASKET
(Superseded to Discontinued)

$

$

Not available

95

Echo 22411012710

GRIP
(Superseded to E271000000)

$40.99

$

Usually ships in 2-4 days

0

96

Echo 22440010610

VALVE ASSY
(Superseded to 22440013710)

Note: INCLUDES ITEMS 45-57

$65.99

$

In Stock, only 1 left!

0

97

Echo 38403410610

FITTING, GREASE

$15.99

$

Usually ships in 2-4 days

0

98

Echo 22442510610

VALVE

$10.99

$

Usually ships in 2-4 days

0

99

Echo 38201410610

PACKING

$1.99

$

Usually ships in 2-4 days

0

100

Echo 90073205016

VALVE, BALL 5×16

$3.49

$

Usually ships in 2-4 days

0

101

Echo 22442310610

SPRING

$7.49

$

Usually ships in 2-4 days

0

102

Echo 22449010610

VALVE, NOZZLE
(Superseded to Discontinued)

$

$

Not available

103

Echo 22441010610

LEVER

$13.99

$

Usually ships in 2-4 days

0

104

Echo 90034030016

PIN, SPRING 3×16
(Superseded to Discontinued)

$

$

Not available

105

Echo 22443210610

FITTING, GREASE

$9.99

$

Usually ships in 2-4 days

0

106

Echo 90070300002

E-RING
(Superseded to Discontinued)

$

$

Not available

107

Echo 22443110610

PIN
(Superseded to Discontinued)

$

$

Not available

108

Echo 90062000003

WASHER

$0.99

$

Usually ships in 2-4 days

0

109

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

110

Echo 22412221050

PACKING
(Superseded to Discontinued)

$

$

Not available

111

Echo E270000030

TUBE, NOZZLE

$38.99

$

Usually ships in 2-4 days

0

112

Echo 22420310610

NOZZLE, 2-HEAD

$

$

Currently unavailable

113

Echo 38601910510

GASKET, BYPASS NOZZLE

$0.99

$

Usually ships in 2-4 days

0
