SHR-210 - Echo Power Sprayer Carburetor -- C1U-K52 Parts Diagram

Power Sprayer

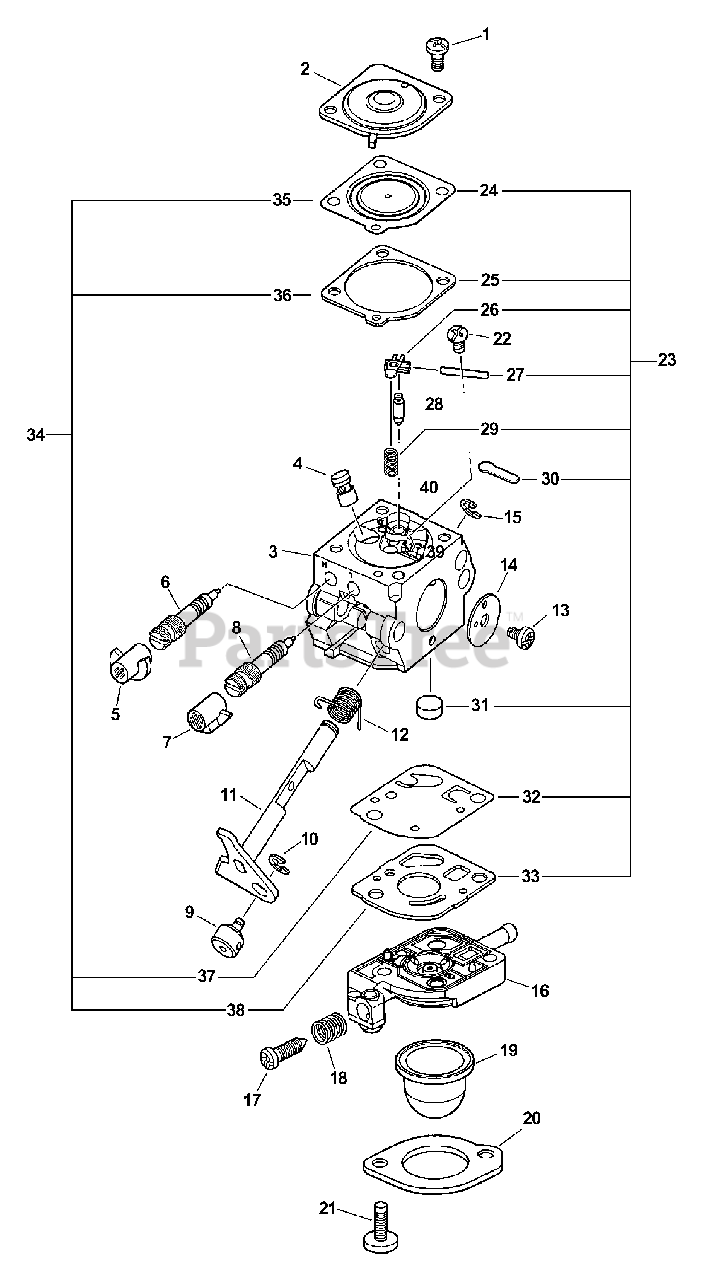

Carburetor -- C1U-K52 Parts Diagram

  • Title

Echo 12520013312

CARBURETOR - C1U-K52
(Superseded to 12520013313)

$94.99

$

In Stock, Qty 9

0

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 125342-13210

COVER, METERING DIAPHRAGM
(Superseded to 12534252130)

$4.99

$

In Stock, only 2 left!

0

3

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12537613120

NOZZLE, CHECK VALVE

$7.49

$

Usually ships in 2-4 days

0

5

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 11

0

6

Echo 12532013310

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

7

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 12

0

8

Echo 12531813120

NEEDLE, MIXTURE

$5.99

$

Usually ships in 2-4 days

0

9

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

10

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

11

Echo 12531713310

SHAFT, THROTTLE

$7.99

$

In Stock, only 1 left!

0

12

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

16

Echo P005000590

BODY ASSY, PURGE

$28.99

$

Usually ships in 2-4 days

0

17

Echo 12533406960

SCREW, THROTTLE ADJUST

$5.99

$

Usually ships in 2-4 days

0

18

Echo 12533406960

SCREW, THROTTLE ADJUST

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

20

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

21

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

22

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

23

Echo 12530013310

REPAIR KIT, CARBURETOR
(Superseded to P005002840)

$21.99

$

In Stock, Qty 7

0

24

DIAPHRAGM, METERING

$

$

Not available

25

GASKET, METERING

$

$

Not available

26

LEVER, METERING

$

$

Not available

27

PIN, METERING LEVER

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

SPRING, METERING LEVER

$

$

Not available

30

PLUG, WELCH

$

$

Not available

31

STRAINER

$

$

Not available

32

DIAPHRAGM, PUMP

$

$

Not available

33

GASKET, PUMP

$

$

Not available

34

Echo 12530313310

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, Qty 9

0

35

DIAPHRAGM, METERING

$

$

Not available

36

GASKET, METERING

$

$

Not available

37

DIAPHRAGM, PUMP

$

$

Not available

38

GASKET, PUMP

$

$

Not available
