SHR-210 - Echo Power Sprayer Engine, Crankcase, Cylinder Cover, Ignition, Starter Parts Diagram

Power Sprayer

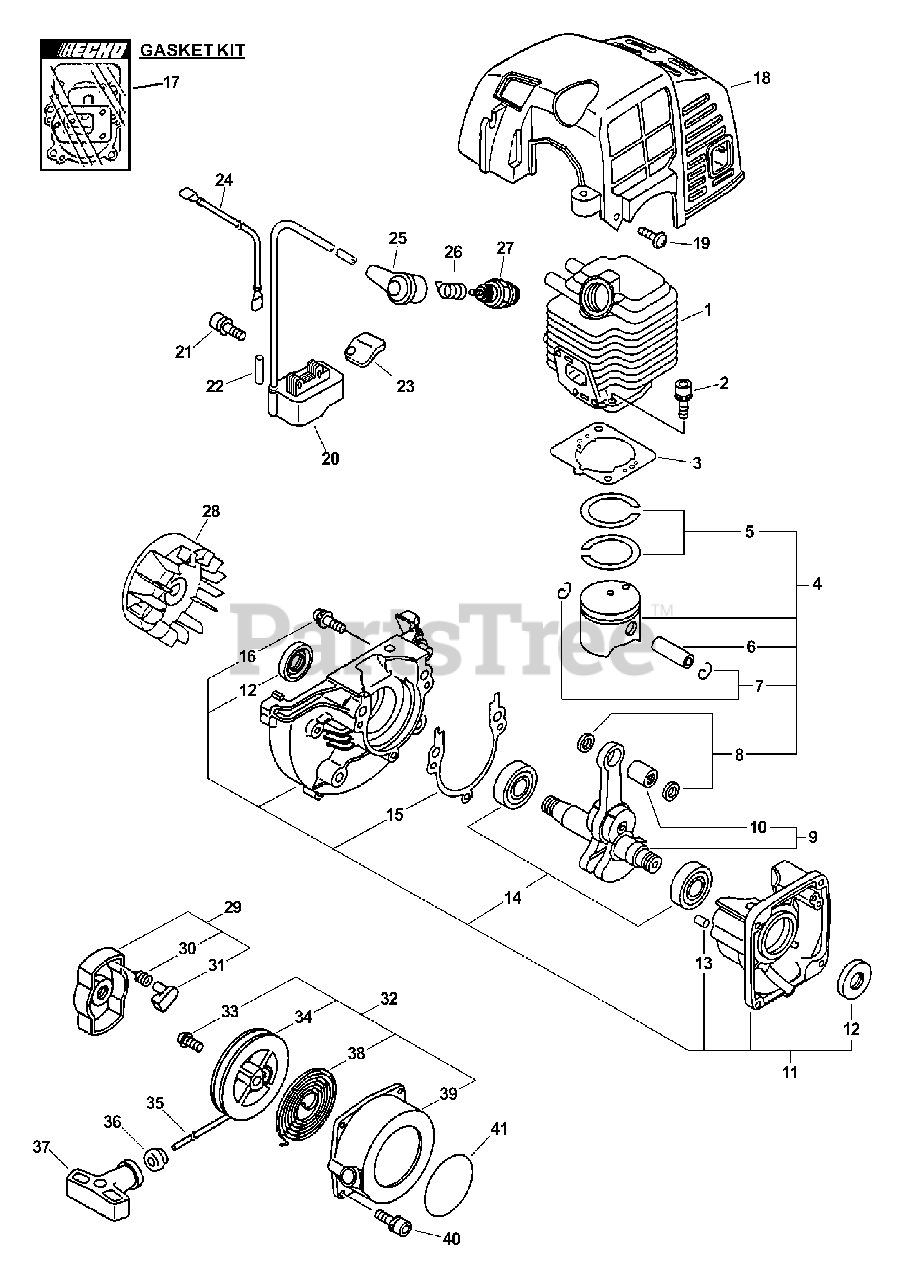

Engine, Crankcase, Cylinder Cover, Ignition, Starter Parts Diagram

  • Title

1

Echo A130000430

CYLINDER

$144.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo V100000080

GASKET, CYLINDER

$6.99

$

In Stock, only 4 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5-8

$93.99

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo A011000101

CRANKSHAFT ASSY
(Superseded to A011001410)

Note: Includes ITEM 10

$186.99

$

Usually ships in 2-4 days

0

10

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$

$

Not available

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo 88900042033

GASKET KIT
(Superseded to 88900042034)

$19.99

$

In Stock, only 2 left!

0

18

Echo 10151413211

COVER, CYLINDER

$33.99

$

Usually ships in 2-4 days

0

19

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

20

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$85.99

$

In Stock, Qty 20+

0

21

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

22

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

24

Echo V485000310

LEAD
(Superseded to Discontinued)

$

$

Not available

25

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

26

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

27

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

28

Echo A409000160

FLYWHEEL

$76.99

$

Usually ships in 2-4 days

0

29

Echo 17720244331

PAWL ASSY, STARTER
(Superseded to 17720212220)

Note: INCLUDES ITEMS 30-31

$19.99

$

In Stock, only 2 left!

0

30

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

31

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

32

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 33-39

$58.99

$

In Stock, Qty 10

0

33

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

34

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

35

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

36

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

37

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

38

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

39

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

40

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

41

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
