SHR-2100 - Echo Power Sprayer Engine, Crankcase Parts Diagram

Power Sprayer

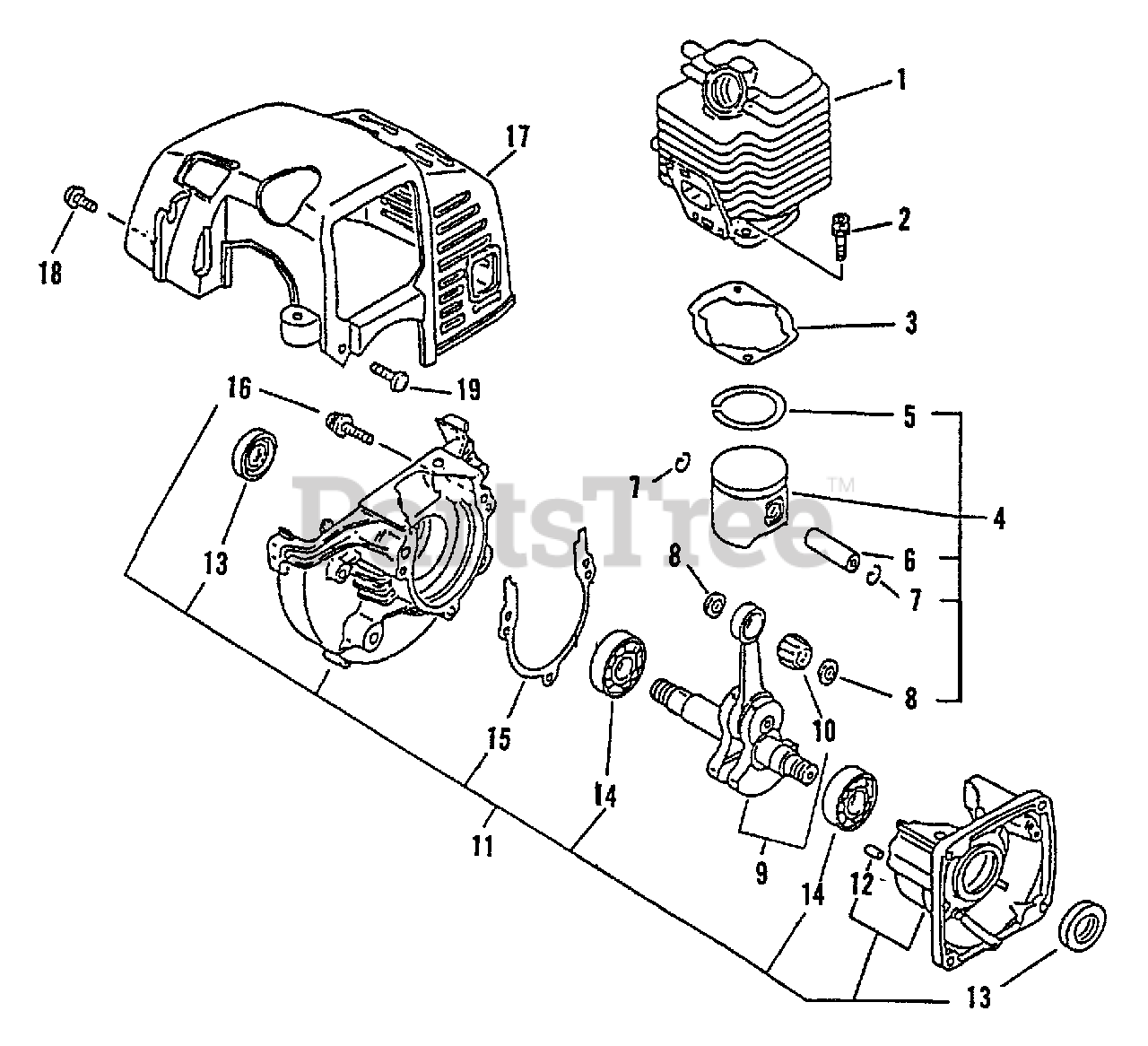

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit 88900042031

$4.99

$

In Stock, Qty 5

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes items 5-8

$78.99

$

Usually ships in 2-4 days

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

Note: Includes ITEM 10

$177.99

$

Usually ships in 2-4 days

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 1 left!

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-16

$157.99

$

Usually ships in 2-4 days

0

12

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 4 left!

0

15

GASKET, CRANKCASE

Note: Use Gasket Kit 88900042031

$

$

Not available

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 9

0

17

Echo 10151413210

COVER, ENGINE
(Superseded to 10151413211)

$33.99

$

Usually ships in 2-4 days

0

18

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, Qty 11

0

19

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

Echo SB1017

SHORT BLOCK SHR-2100

$246.99

$

Usually ships in 2-4 days

0

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

Note: Engine Repower

$21.99

$

In Stock, Qty 11

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: Engine Repower; Includes the following items

$19.99

$

In Stock, only 2 left!

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Engine Repower

$4.99

$

In Stock, Qty 5

0

GASKET, CRANKCASE

Note: Engine Repower

$

$

Not available

Echo 130016-42031

GASKET, INTAKE

Note: Engine Repower

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Engine Repower

$2.99

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: Engine Repower

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: Engine Repower

$2.99

$

In Stock, Qty 5

0

Echo 61041404560

GASKET, GEAR CASE

Note: Engine Repower

$1.49

$

In Stock, only 3 left!

0
