SHR-2100 - Echo Power Sprayer Exhaust, Ignition, Intake, Starter Parts Diagram

Power Sprayer

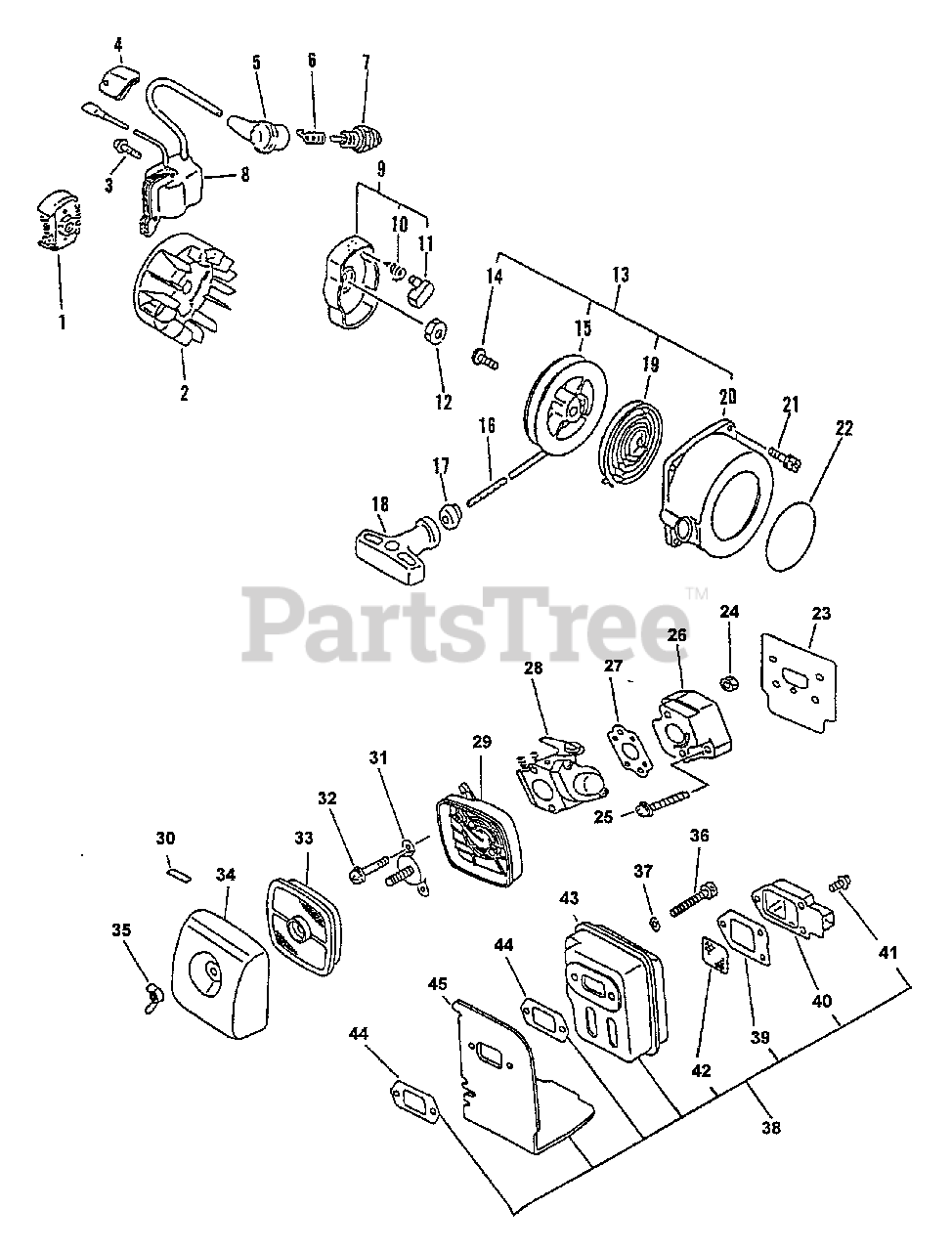

Exhaust, Ignition, Intake, Starter Parts Diagram

  • Title

1

Echo 17500011611

CLUTCH ASSY
(Superseded to 17500011612)

$66.99

$

Usually ships in 2-4 days

0

2

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

3

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

4

Echo 150112-42030

GROMMET

$3.49

$

Usually ships in 2-4 days

0

5

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

6

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

7

Echo 99944500072

SPARK PLUG
(Superseded to 15901030330)

$4.49

$

Usually ships in 2-4 days

0

8

Echo 15660111910

COIL, IGNITION
(Superseded to 15660111911)

$143.99

$

In Stock, only 1 left!

0

9

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 10-11

$11.99

$

In Stock, Qty 9

0

10

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

11

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

12

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

13

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: Includes ITEMS 14-20

$58.99

$

In Stock, Qty 10

0

14

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

15

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 6

0

------------------

ROPE, STARTER 3.0×990

Note: RePower BULK OPTION: 99944440000

$

$

Not available

17

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

19

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

20

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

21

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

22

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

23

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

26

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

27

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

28

Echo 12520013210

CARBURETOR - C1U-K34
(Superseded to 12520013211)

$106.99

$

Usually ships in 2-4 days

0

29

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

30

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

31

Echo 12901112620

PLATE, PREVENT

$8.99

$

Usually ships in 2-4 days

0

32

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

33

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

34

Echo 13031306561

COVER, AIR FILTER
(Superseded to 13030206561)

$9.49

$

In Stock, only 2 left!

0

35

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

36

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

37

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

38

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 17-23

$55.99

$

In Stock, only 1 left!

0

39

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

40

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

41

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

42

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

43

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

$55.99

$

In Stock, only 1 left!

0

44

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

45

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0
