SIP 2132 SE (1696498-00) - Simplicity Professional 32" Snow Thrower, 21hp Chute & Rotation Group (2989662_2989670_2989702_2990497_2990714) Parts Diagram

Professional 32" Snow Thrower, 21hp

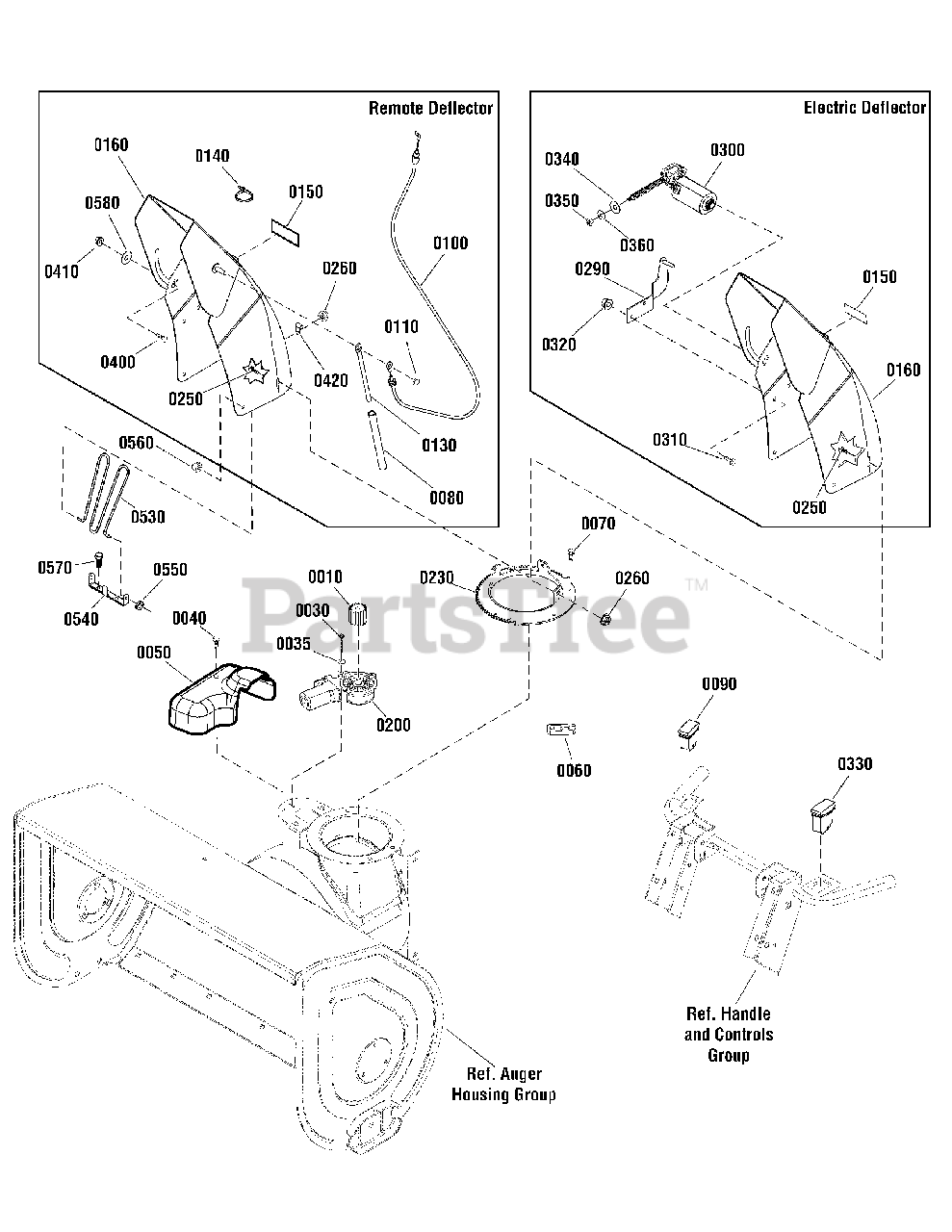

Chute & Rotation Group (2989662_2989670_2989702_2990497_2990714) Parts Diagram

  • Title

0010

Simplicity 1728967SM

PINION, 1-1/4 Lg

$18.99

$

In Stock, Qty 6

0

0030

Simplicity 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 10

0

0035

Simplicity 7091552SM

WASHER, Flat, 7/32 x 1/2 OD

$3.99

$

In Stock, Qty 11

0

0040

Simplicity 1925592SM

CAPSCREW, Hex Washer, Self-Tapping, 1/4-20 x 3/8
(Superseded to 703466)

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 1752877YP

COVER, Electric Chute Rotation

$17.99

$

In Stock, only 2 left!

0

0060

Simplicity 7011938SM

RETAINER, Spout

Note: (Use on 24", 28" & 32" Models)

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1666613SM

RETAINER, Spout

Note: (Use on 38" Model)

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1960001SM

CAPSCREW, Hex Washer, 10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0080

Simplicity 1734647SM

SPRING, Compression, 9/16 OD X 6-1/16 Lg
(Superseded to 703135)

Note: (Use on 24" Model)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1752240YP

SWITCH, Rocker, Chute Rotation
(Superseded to 1687904)

$87.99

$

In Stock, only 3 left!

0

0100

Simplicity 1750623YP

CABLE, Deflector Control

Note: (Use on 24" Model)

$49.99

$

In Stock, Qty 11

0

0110

Simplicity 1932718SM

PUSHNUT, 5/16 Dia. 5/8 OD
(Superseded to 704028)

Note: (Use on 24" Model)

$5.49

$

In Stock, Qty 9

0

0130

Simplicity 1734708ASM

ROD, 5/16 Dia., 5.88 Lg

Note: (Use on 24" Model)

$14.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1701011SM

TIE, Self Locking, 7-5/16 Lg

$5.49

$

In Stock, only 2 left!

0

0150

Simplicity 1706085SM

DECAL, Hinge

Note: (Use on 24", 28" & 32" Models)

$14.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1733598SM

DECAL, Hinge

Note: (Use on 38" Model)

$

$

Not available

0160

Simplicity 1752840CYP

CHUTE ASSEMBLY

Note: (Use on 24" Model)

$157.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1752841CYP

CHUTE ASSEMBLY

Note: (Use on 28" & 32" Models)

$203.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1739350CYP

CHUTE ASSEMBLY

Note: (Use on 38" Models Only)

$580.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1739309YP

MOTOR, Spout Rotator
(Superseded to 708703)

$91.99

$

In Stock, Qty 10

0

0230

Simplicity 1737962BMYP

GEAR, Chute, Tall

Note: (Use on 24", 28" & 32" Models)

$43.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0

0260

Simplicity 2860694SM

NUT, Hex Flange, 1/4-20, ESNA
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0290

Simplicity 1738267BMYP

BRACKET ASSEMBLY

Note: (Use on 28" & 32" Models)

$32.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1739758BMYP

BRACKET ASSEMBLY

Note: (Use on 38" Models Only)

$26.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737941YP

MOTOR, Chute Deflector

Note: (Use on 28", 32" & 38" Models)

$144.99

$

In Stock, only 2 left!

0

0310

Simplicity 1960715SM

SCREW, Truss Head, Torx, 1/4-20 X 3/4
(Superseded to 770135)

Note: (Use on 28", 32" & 38" Models)

$4.49

$

In Stock, Qty 15

0

0320

Simplicity 1960694SM

NUT, Hex Flange, 1/4-20
(Superseded to 5025391FS)

Note: (Use on 28", 32" & 38" Models)

$4.49

$

In Stock, Qty 7

0

0330

Simplicity 1737379YP

SWITCH, Deflector Control
(Superseded to 1687905)

Note: (Use on 28", 32" & 38" Models)

$87.99

$

In Stock, only 2 left!

0

0340

Simplicity 1738244YP

WASHER, Rubber

Note: (Use on 28", 32" & 38" Models)

$4.99

$

In Stock, Qty 9

0

0350

Simplicity 1738245YP

NUT, 1/4-20, L.H.
(Superseded to 703143)

Note: (Use on 28", 32" & 38" Models)

$3.99

$

In Stock, Qty 13

0

0360

Simplicity 703332

WASHER, Flat

Note: (Use on 28", 32" & 38" Models)

$4.49

$

In Stock, Qty 20+

0

0400

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 X 0 3/4, G5
(Superseded to 703185)

Note: (Use on 24" Model)

$3.49

$

In Stock, Qty 20+

0

0410

Simplicity 1960686SM

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

Note: (Use on 24" Model)

$3.49

$

In Stock, Qty 20+

0

0420

Simplicity 1739331YP

CLIP
(Superseded to 703174)

Note: (Use on 24" Model)

$4.49

$

Usually ships in 2-12 days

0

0530

Simplicity 1733475SM

GUARD, Chute

Note: (CE/Export)

$22.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1737683AYP

BRACKET, Chute Guard

Note: (CE/Export)

$18.99

$

Usually ships in 2-12 days

0

0550

Simplicity 1738174YP

GROMMET, Chute Guard Bracket

Note: (CE/Export)

$4.49

$

Usually ships in 2-12 days

0

0560

Simplicity 1960140SM

PUSHNUT, 3/16 Dia.

Note: (CE/Export)

$3.49

$

Usually ships in 2-12 days

0

0570

Simplicity 1925003SM

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (CE/Export)

$3.99

$

In Stock, Qty 20+

0

0580

Simplicity 2860210SM

WASHER, Nylon, 3/8

Note: (Use on 24" Model)

$4.99

$

In Stock, only 2 left!

0
