SIP 2132 SE (1696498-01) - Simplicity Professional 32" Snow Thrower, 21hp Chute & Rotation Group - Full Electric (2989670_2989702_2990497) Parts Diagram

Professional 32" Snow Thrower, 21hp

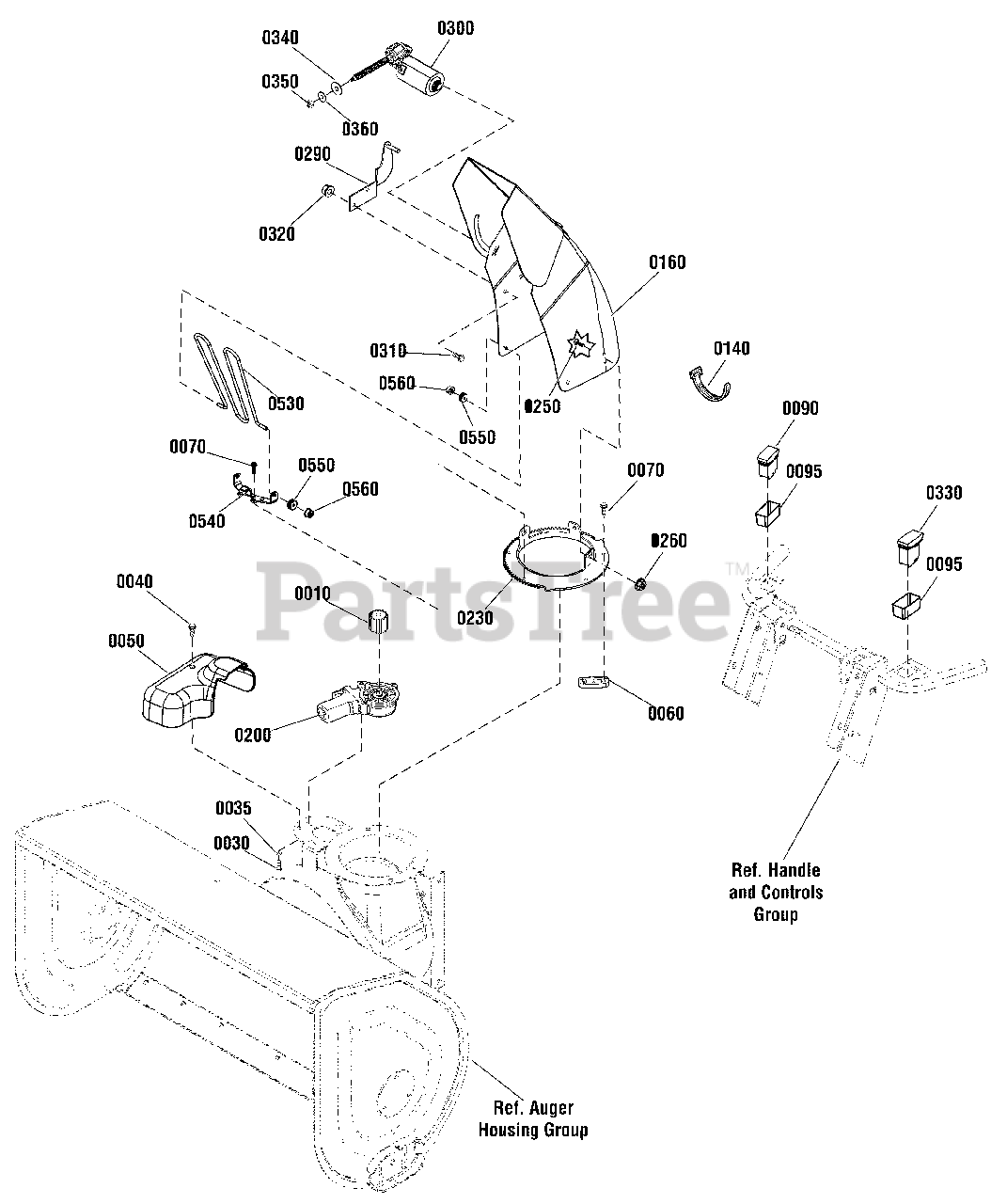

Chute & Rotation Group - Full Electric (2989670_2989702_2990497) Parts Diagram

  • Title

0010

Simplicity 1728967SM

PINION, 1-1/4 Lg

$18.99

$

In Stock, Qty 6

0

0030

Simplicity 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 10

0

0035

Simplicity 7091552SM

WASHER, Flat, 7/32 x 1/2

$3.99

$

In Stock, Qty 11

0

0040

Simplicity 703466

SCREW, Hex Washer Head Taptite, 1/4-20 X 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 1752877YP

COVER, Electric Chute Rotation

$17.99

$

In Stock, only 2 left!

0

0060

Simplicity 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Simplicity 703062

SCREW, Hex Washer Head, Plastite, 10-14

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$87.99

$

In Stock, only 3 left!

0

0095

Simplicity 708156

COVER, Switch

$7.99

$

Usually ships in 2-12 days

0

0140

Simplicity 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1752841CYP

CHUTE ASSEMBLY

$203.99

$

Usually ships in 2-12 days

0

0200

Simplicity 708703

MOTOR, Chute Rotation

$91.99

$

In Stock, Qty 10

0

0230

Simplicity 1737962BMYP

GEAR, Chute, Tall

$43.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703101

BOLT, Carriage, 1/4-20 x 3/4

$4.49

$

In Stock, only 4 left!

0

0260

Simplicity 703061

NUT, Keps, 1/4-20

$3.99

$

In Stock, Qty 11

0

0290

Simplicity 1738267BMYP

BRACKET ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737941YP

MOTOR, Chute Deflector

$144.99

$

In Stock, only 2 left!

0

0310

Simplicity 1960715SM

SCREW, Truss Head, Torx, 1/4-20 X 3/4
(Superseded to 770135)

$4.49

$

In Stock, Qty 15

0

0320

Simplicity 703463

NUT, Hex Flange, Nylock, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0330

Simplicity 1737379YP

SWITCH, Deflector Control
(Superseded to 1687905)

$87.99

$

In Stock, only 2 left!

0

0340

Simplicity 1738244YP

WASHER, Rubber

$4.99

$

In Stock, Qty 9

0

0350

Simplicity 703143

NUT, 1/4-20

$3.99

$

In Stock, Qty 13

0

0360

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0530

Simplicity 1733475SM

GUARD, Chute (CE/Export)

$22.99

$

Usually ships in 2-12 days

0

0540

Simplicity 1752883YP

BRACKET, Chute Guard (CE/Export)

$16.99

$

Usually ships in 2-12 days

0

0550

Simplicity 1738174YP

GROMMET, Chute Guard Bracket (CE/Export)

$4.49

$

Usually ships in 2-12 days

0

0560

Simplicity 1960140SM

PUSHNUT, 3/16 Dia. (CE/Export)

$3.49

$

Usually ships in 2-12 days

0
