SIP 2132 SE (1696498-01) - Simplicity Professional 32" Snow Thrower, 21hp Gear Case Assembly - Heavy Duty (1753950) Parts Diagram

Professional 32" Snow Thrower, 21hp

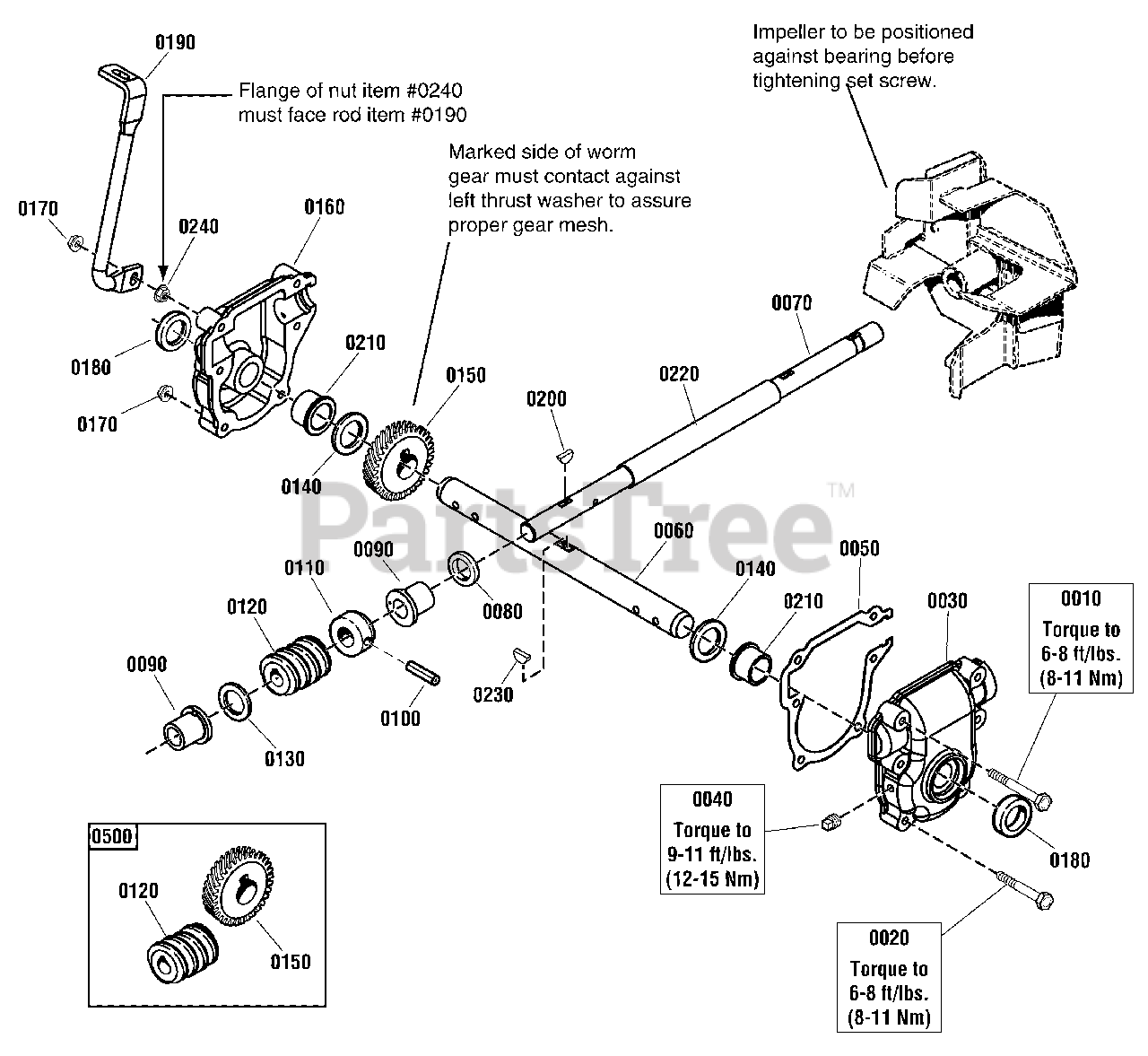

Gear Case Assembly - Heavy Duty (1753950) Parts Diagram

  • Title

0010

Simplicity 703166

CAPSCREW, Hex, 1/4-20 x 2-3/4

$6.49

$

Usually ships in 2-12 days

0

0020

Simplicity 704291

CAPSCREW, Hex, 1/4-20 x 2-1/4
(Superseded to 5025010X18SM)

$3.49

$

In Stock, only 3 left!

0

0030

-----

* GEAR CASE, Left

$

$

Not available

0040

Simplicity 1668971SM

FITTING, Pipe Plug

$4.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1612124SM

GASKET

$18.99

$

In Stock, only 3 left!

0

0060

Simplicity 1732440SM

SHAFT, Auger Cutoff

$56.99

$

In Stock, only 1 left!

0

0070

Simplicity 1732182SM

SHAFT, Worm Cutoff

$81.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 7

0

0090

Simplicity 1612149SM

BUSHING, Flange

$54.99

$

In Stock, Qty 6

0

0100

Simplicity 2836098SM

PIN, Drive Lock

$19.99

$

In Stock, only 4 left!

0

0110

Simplicity 1612127SM

COLLAR, Thrust

$32.99

$

In Stock, only 2 left!

0

0120

-----

WORM, Rolled

Note: (Not a serviceable part. Order Ref. No. 0500)

$

$

Not available

0130

Simplicity 2168111SM

WASHER, Thrust

$7.49

$

Usually ships in 2-12 days

0

0140

Simplicity 2118315SM

WASHER, Thrust

$10.99

$

In Stock, Qty 5

0

0150

-----

GEAR, Worm

Note: (Not a serviceable part. Order Ref. No. 0500)

$

$

Not available

0160

-----

* GEAR CASE, Right

$

$

Not available

0170

Simplicity 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0180

Simplicity 2118118SM

SEAL, Oil

$11.99

$

In Stock, Qty 11

0

0190

Simplicity 1732152SM

BRACKET, Support

$35.99

$

In Stock, only 1 left!

0

0200

Simplicity 703891

KEY, Woodruff, Plain, 3/16 x 1/16

$5.49

$

In Stock, Qty 10

0

0210

Simplicity 1732991SM

BUSHING

$17.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1612111SM

TUBE

$26.99

$

In Stock, only 2 left!

0

0230

Simplicity 704280

KEY, Woodruff, 1/4 x 3/4

$5.49

$

In Stock, Qty 9

0

0240

Simplicity 703233

NUT, Flange, Serrated, 1/4-20, G5

$4.49

$

In Stock, Qty 11

0

0500

Simplicity 706853

KIT, Gears

Note: (Includes Ref. Nos. 0120 & 0150)

$147.99

$

Usually ships in 2-12 days

0
