SK 100-01 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

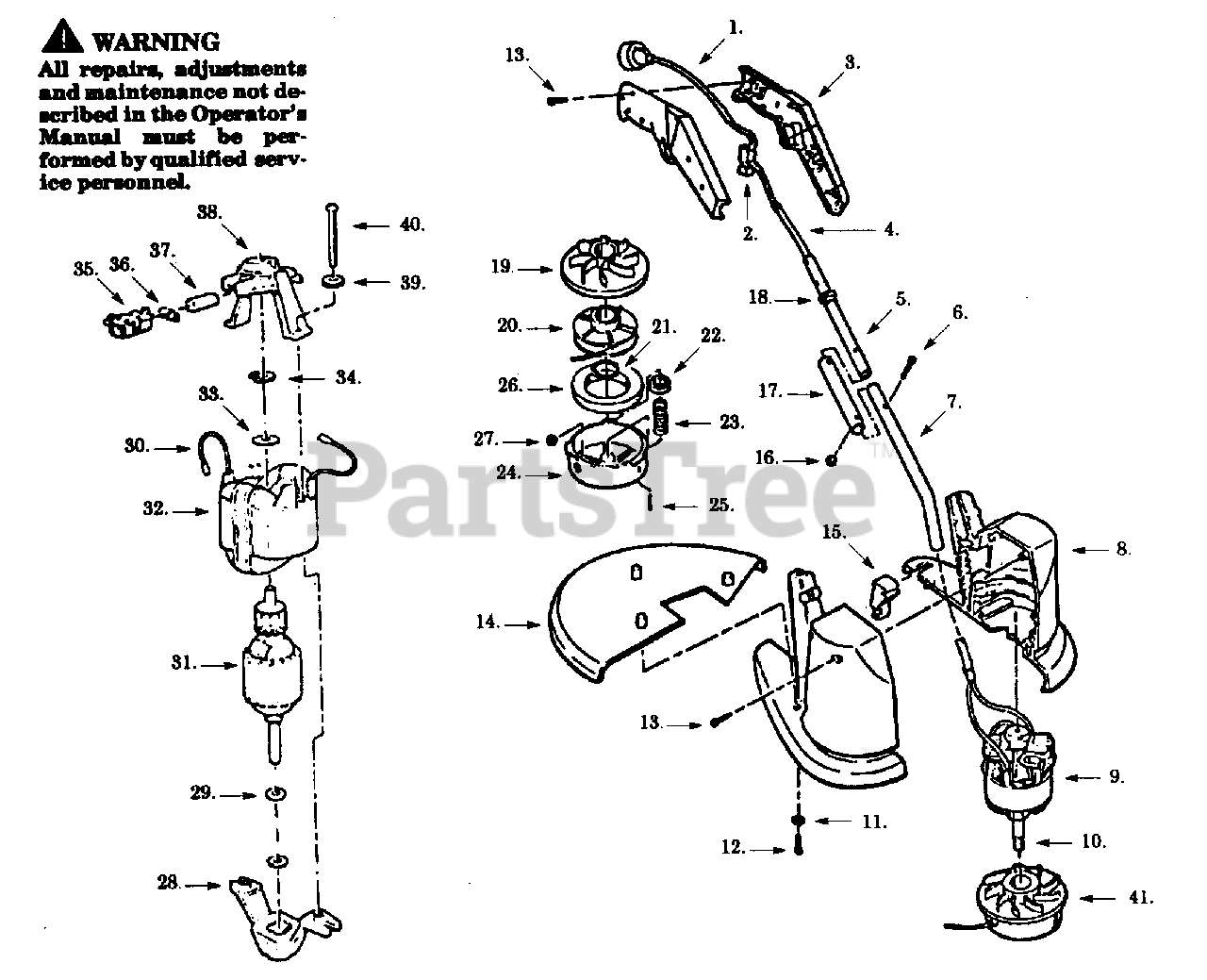

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534193001

Switch

$

$

Not available

3

Poulan 534356714

R.H./L.H. Handle

$

$

Not available

4

Poulan 534162311

Harness

$

$

Not available

5

Poulan 534379800

Upper Tube

$

$

Not available

6

Poulan 534393300

Screw

$

$

Not available

7

Poulan 534379700

Lower Tube

$

$

Not available

8

Poulan 534273514

R.H./L.H. Housing

$14.99

$

Usually ships in 3-10 days

0

9

Poulan 534638602

Motor

$

$

Not available

10

Poulan 534167100

Drive Adapter

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 534653000

Washer

$1.49

$

Usually ships in 3-10 days

0

12

Poulan 534193700

Screw

$

$

Not available

13

Poulan 534193800

Screw

$

$

Not available

14

Poulan 534271914

Guard

$

$

Not available

15

Poulan 534292705

Blade Retainer

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 534393500

Nut

$1.49

$

Usually ships in 3-10 days

0

17

Poulan 534393200

Outer Tube

$

$

Not available

18

Poulan 534356805

Bushing

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534167215

Rear Plate

$

$

Not available

20

Poulan 534167805

Spool & Line

$

$

Not available

21

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

22

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

23

Poulan 534819200

Spring

$

$

Not available

24

Poulan 534167935

Hub Ass'y.

$

$

Not available

25

Poulan 534270300

Cotter Pin

$

$

Not available

26

Poulan 534167600

Foam Pad

$

$

Not available

27

Poulan 534167600

Eyelet

$

$

Not available

28

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

29

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534810031

Leadwire Ass'y.

$

$

Not available

31

Poulan 534010701

Armature Ass'y.

$34.99

$

Usually ships in 3-10 days

0

32

Poulan 534294703

Field Ass'y.

$

$

Not available

33

Poulan 534520031

Washer

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534246701

Retainer Ring

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 534260007

Brush Holder

$

$

Not available

36

Poulan 534570009

Brush Spring

$

$

Not available

37

Poulan 534200018

Brush

$

$

Not available

38

Poulan 534710641

Endbell Ass'y. (Brush)

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 534500020

Lockwasher

$

$

Not available

40

Poulan 534500026

Screw

$

$

Not available

41

Poulan 534167005

Cutting Head Ass'y.

$

$

Not available

42

Poulan 534883491

Operator Manual

Note: Not Shown.

$

$
