SK 120C-02 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

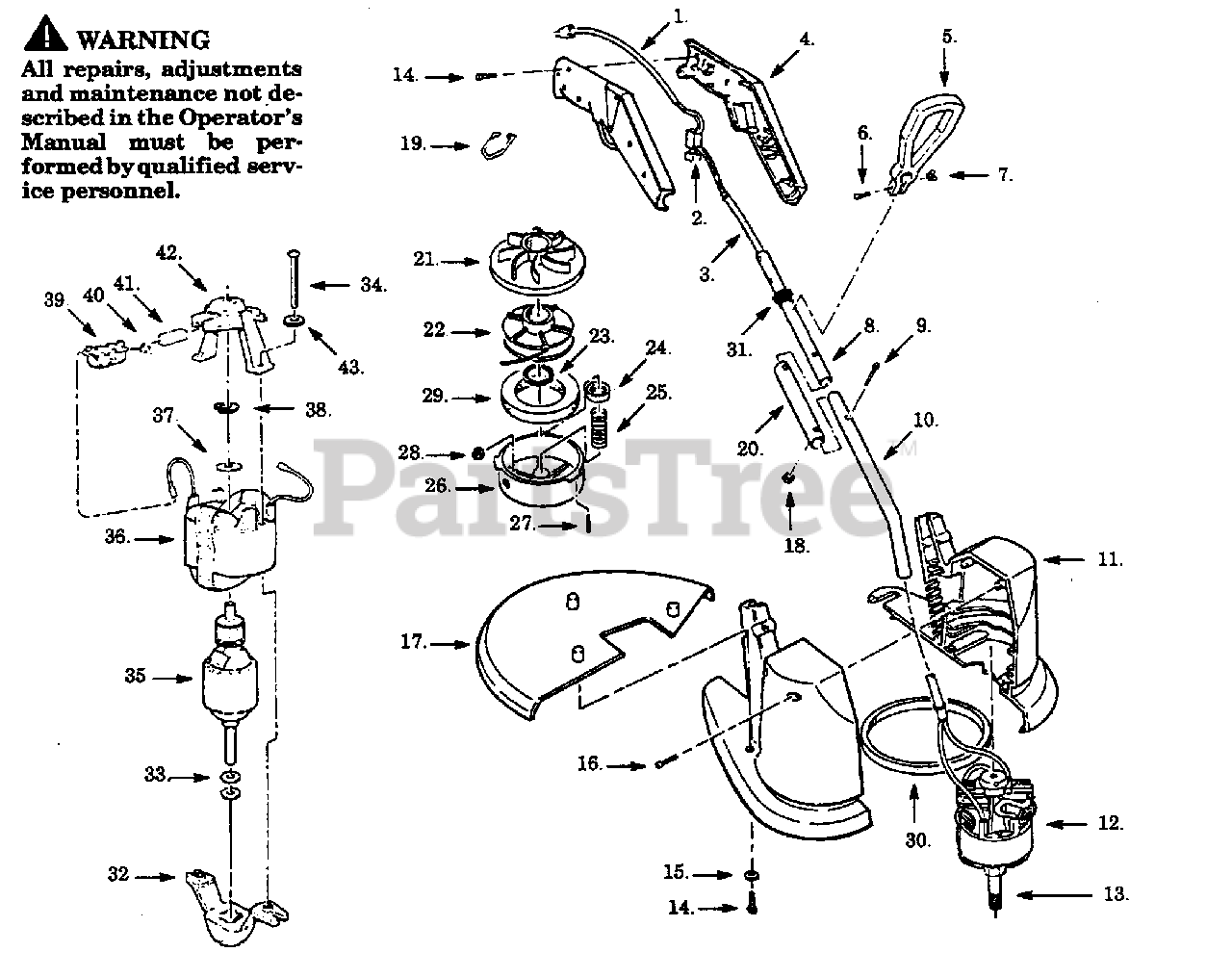

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534193001

Switch

$

$

Not available

3

Poulan 534162315

Harness

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 534356762

R.H./L.H. Handle

$

$

Not available

5

Poulan 534156415

Assist Handle

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 534218103

Bolt

$

$

Not available

7

Poulan 534437000

Wing Nut

$

$

Not available

8

Poulan 534379803

Upper Tube

$

$

Not available

9

Poulan 534393300

Screw

$

$

Not available

10

Poulan 534360302

Lower Tube

$

$

Not available

11

Poulan 534273522

Motor Housing

$

$

Not available

12

Poulan 534450007

Motor

$

$

Not available

13

Poulan 534668005

Shaft Adapter

$

$

Not available

14

Poulan 534193700

Screw

$

$

Not available

15

Poulan 534653000

Washer

$1.49

$

Usually ships in 3-10 days

0

16

Poulan 534193800

Screw

$

$

Not available

17

Poulan 534368001

Guard Ass'y.

$

$

Not available

18

Poulan 534393500

Nut

$1.49

$

Usually ships in 3-10 days

0

19

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534393202

Outer Tube

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 534167215

Rear Plate

$

$

Not available

22

Poulan 952710512

Spool & Line

$

$

Not available

23

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

24

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

25

Poulan 534819200

Spring

$

$

Not available

26

Poulan 534167905

Hub Ass'y.

$

$

Not available

27

Poulan 534270301

Cotter Pin

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 534167600

Eyelet

$

$

Not available

29

Poulan 534167700

Foam Pad

$

$

Not available

30

Poulan 534367900

Baffle

$

$

Not available

31

Poulan 534356805

Bushing

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

33

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534500261

Screw

$

$

Not available

35

Poulan 534367600

Armature Ass'y.

$

$

Not available

36

Poulan 534367801

Field Ass'y.

$

$

Not available

37

Poulan 534520031

Washer

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

39

Poulan 534260007

Brush Holder

$

$

Not available

40

Poulan 534570009

Brush Spring

$

$

Not available

41

Poulan 534200018

Brush

$

$

Not available

42

Poulan 534872601

Endbell Ass'y. (Brush)

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0
