SK 125-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

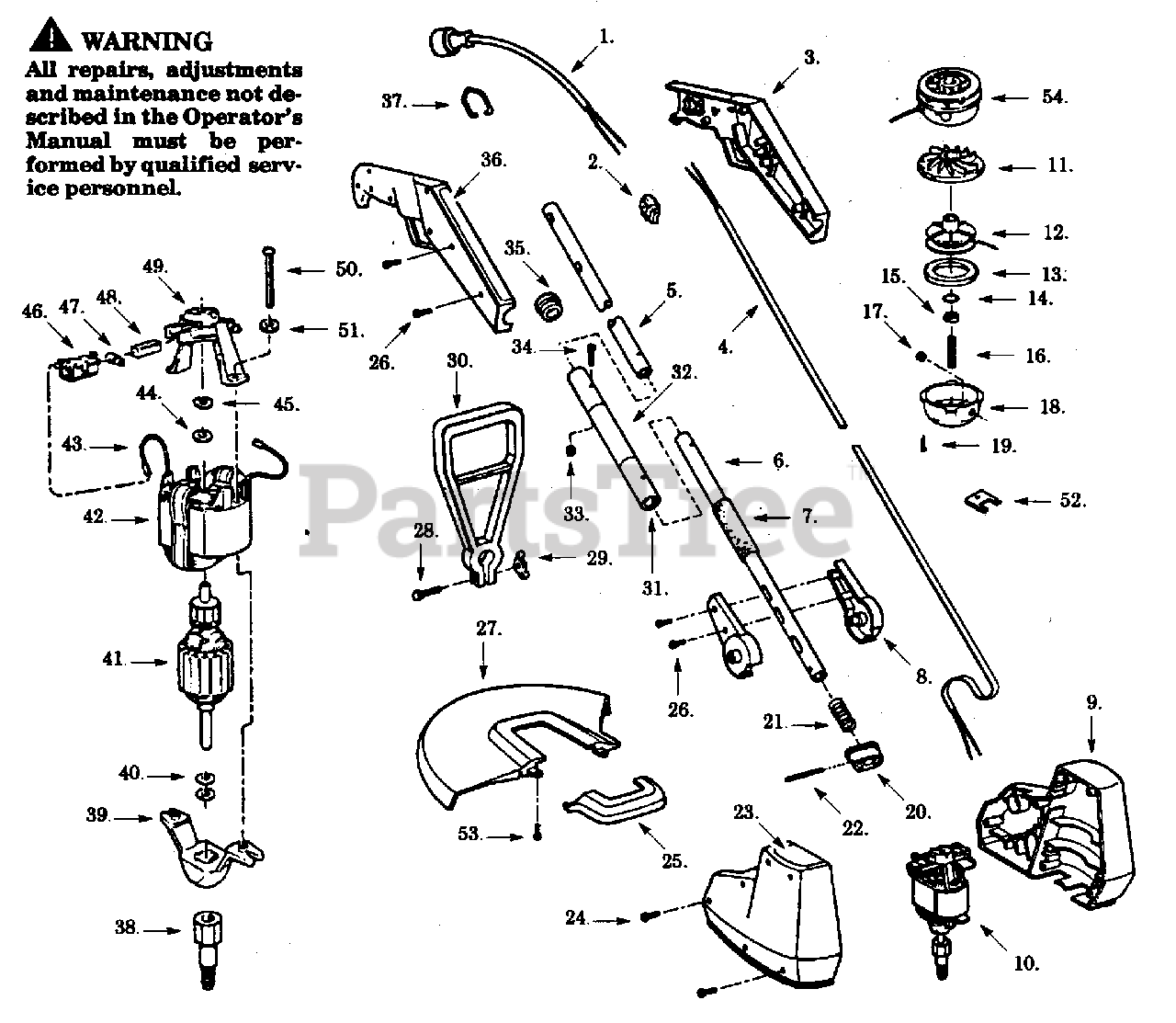

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534356714

R.H./L.H. Handle

$

$

Not available

4

Poulan 534729100

Harness

$

$

Not available

5

Poulan 534379804

Upper Tube

$

$

Not available

6

Poulan 534681200

Lower Tube

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 534681300

Foam Grip

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 534677604

R.H./L.H. Pivot

$

$

Not available

9

Poulan 534676824

R.H./L.H. Housing

$

$

Not available

10

Poulan 534638603

Motor Ass'y.

$

$

Not available

11

Poulan 534167215

Rear Plate

$

$

Not available

12

Poulan 534167815

Spool & Line

$

$

Not available

13

Poulan 534167700

Foam Pad

$

$

Not available

14

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

15

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

16

Poulan 534819200

Spring

$

$

Not available

17

Poulan 534167600

Eyelet

$

$

Not available

18

Poulan 534167935

Hub Ass'y.

$

$

Not available

19

Poulan 534270300

Cotter Pin

$

$

Not available

20

Poulan 534678305

Sleeve

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534819200

Spring

$

$

Not available

22

Poulan 534327204

Pin

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 534672500

Hsg. Top Label

$

$

Not available

24

Poulan 534222402

Screw

$3.99

$

In Stock, only 3 left!

0

25

Poulan 534678404

Front Guard

$

$

Not available

26

Poulan 534193700

Screw

$

$

Not available

27

Poulan 534681824

Guard & Blade Ass'y.

$

$

Not available

28

Poulan 534218105

Bolt

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 534437000

Wing Nut

$

$

Not available

30

Poulan 534156415

Assist Handle

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 534393202

Outer Tube

$7.49

$

Usually ships in 3-10 days

0

32

Poulan 534688400

Warning Label (Not a serviceable part)

$

$

Not available

33

Poulan 534393500

Stop Nut

$1.49

$

Usually ships in 3-10 days

0

34

Poulan 534393300

Screw

$

$

Not available

35

Poulan 534356805

Bushing

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534672000

Handle Label

$

$

Not available

37

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 534167100

Shaft Adapter

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

40

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 534367600

Armature Ass'y.

$

$

Not available

42

Poulan 534367801

Field Ass'y.

$

$

Not available

43

Poulan 534810031

Lead Wire Ass'y.

$

$

Not available

44

Poulan 534520031

Washer

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

46

Poulan 534260007

Brush Holder

$

$

Not available

47

Poulan 534570009

Brush Spring

$

$

Not available

48

Poulan 534200018

Brush

$

$

Not available

49

Poulan 534710641

Endbell Ass'y. (Brush)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 534500261

Screw

$

$

Not available

51

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 534166800

Spanner Wrench

$

$

Not available

53

Poulan 534184704

Screw

$1.49

$

Usually ships in 3-10 days

0

54

Poulan 534167015

Cutting Head Ass'y.

$

$

Not available

55

Poulan 534885410

Operator Manual

Note: Not Shown.

$

$

Not available
