SK 140C-02 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

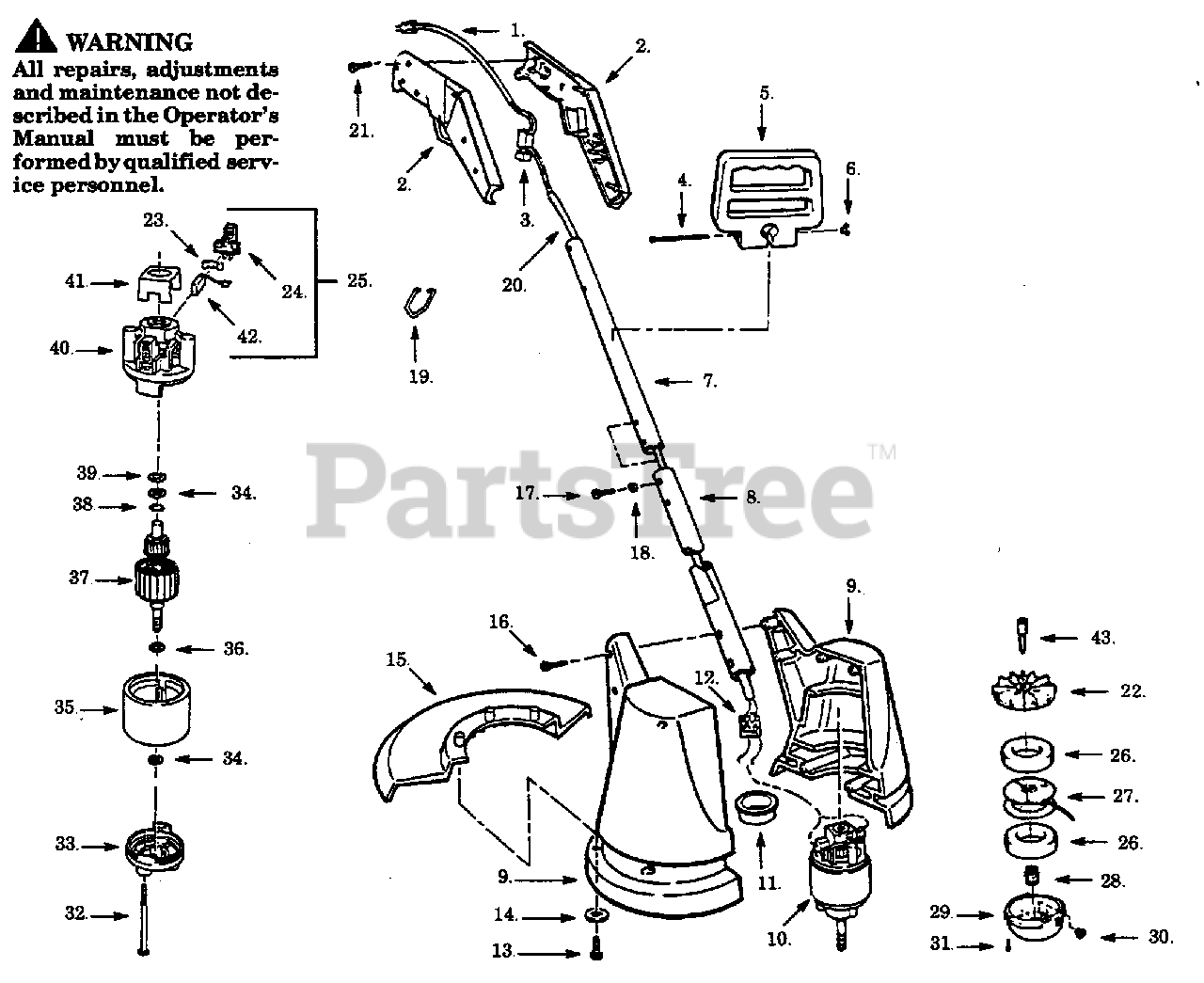

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534356772

R.H./L.H. Handle

$

$

Not available

3

Poulan 534193001

Trigger Switch

$

$

Not available

4

Poulan 534218100

Bolt

$

$

Not available

5

Poulan 534282605

Side Handle

$

$

Not available

6

Poulan 534437000

Wing Nut

$

$

Not available

7

Poulan 534222506

Upper Tube

$

$

Not available

8

Poulan 534223201

Lower Tube

$

$

Not available

9

Poulan 534276132

R.H./L.H. Housing

$

$

Not available

10

Poulan 534225020

Motor

$

$

Not available

11

Poulan 534487215

Air Baffle

$

$

Not available

12

Poulan 534404400

P.C. Bridge Kit

$

$

Not available

13

Poulan 534193800

Screw

$

$

Not available

14

Poulan 534653000

Washer

$

$

Not available

15

Poulan 534379645

Line Cutter Guard

$

$

Not available

16

Poulan 534222400

Screw

$

$

Not available

17

Poulan 534970001

Screw

$

$

Not available

18

Poulan 534713000

Lockwasher

$

$

Not available

19

Poulan 534270100

Hanger

$

$

Not available

20

Poulan 534162406

Harness Ass'y.

$

$

Not available

21

Poulan 534193700

Screw

$

$

Not available

22

Poulan 534487125

Rear Plate

$

$

Not available

23

Poulan 534228000

Brush Spring

$

$

Not available

24

Poulan 534227700

Brush Holder

$

$

Not available

25

Poulan 534450400

Brush Kit (Inc. 23,24,42)

$

$

Not available

26

Poulan 534158602

Foam Pad

$

$

Not available

27

Poulan 952710508

Spool & Line

$

$

Not available

28

Poulan 534157401

Spring

$

$

Not available

29

Poulan 534486425

Hub Ass'y.

$

$

Not available

30

Poulan 534157600

Eyelet

$

$

Not available

31

Poulan 534270301

Cotter Pin

$

$

Not available

32

Poulan 534228700

Screw

$

$

Not available

33

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

34

Poulan 534228800

Washer

$

$

Not available

35

Poulan 534227001

Field Ass'y.

$

$

Not available

36

Poulan 534747002

Retaining Ring

$

$

Not available

37

Poulan 534225120

Armature Ass'y.

$

$

Not available

38

Poulan 534246700

Retaining Ring

$

$

Not available

39

Poulan 534238903

Washer

$

$

Not available

40

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

41

Poulan 534226000

Insulator

$

$

Not available

42

Poulan 534227800

Brush

$

$

Not available

43

Poulan 534659505

Drive Adapter

$

$

Not available
