SK 160C-02 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

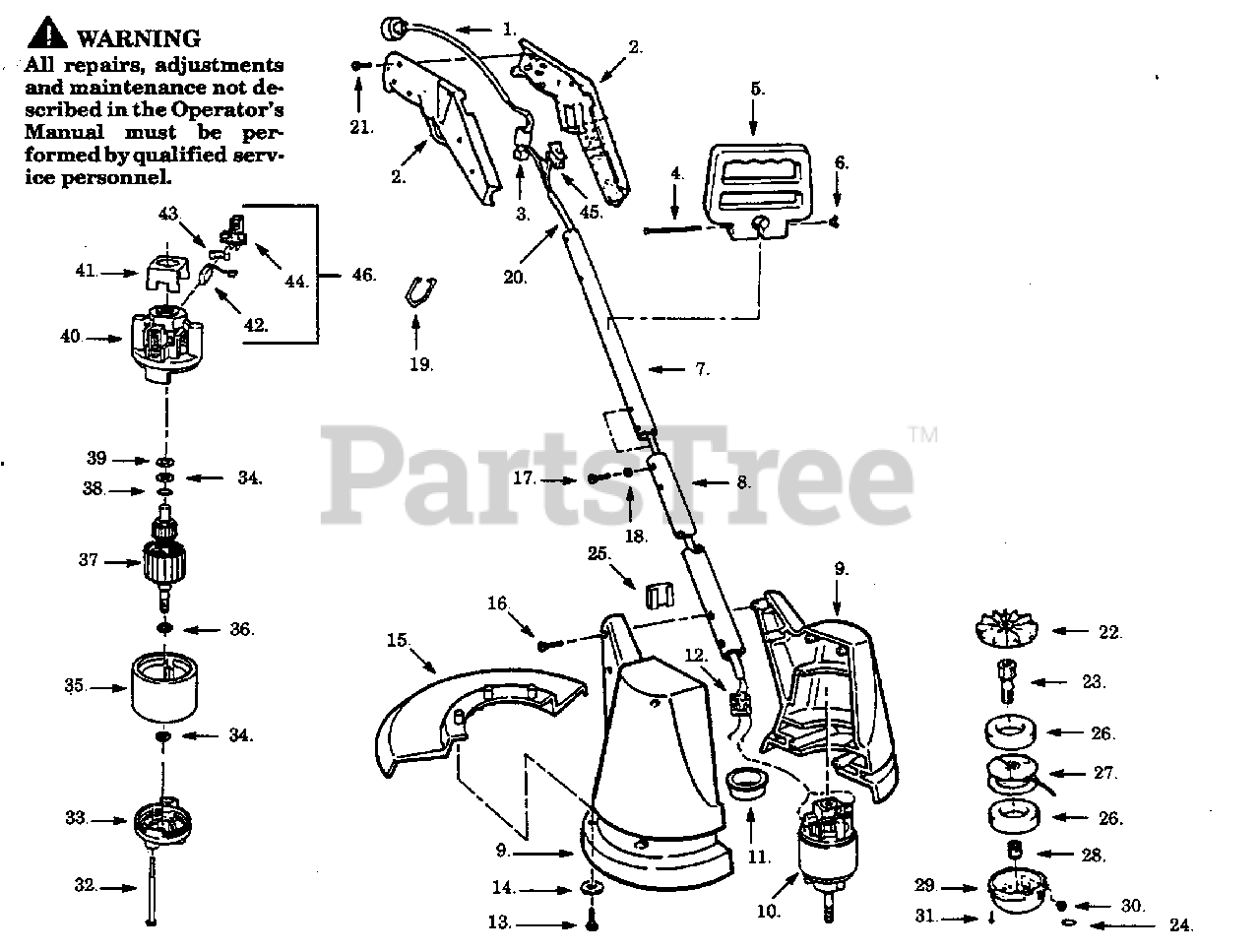

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534356722

R.H./L.H. Handle

$

$

Not available

3

Poulan 534193001

Trigger Switch

$

$

Not available

4

Poulan 534218100

Bolt

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 534282605

Side Handle

$15.99

$

Usually ships in 3-10 days

0

6

Poulan 534437000

Wing Nut

$

$

Not available

7

Poulan 534222506

Upper Tube

$

$

Not available

8

Poulan 534223201

Lower Tube

$

$

Not available

9

Poulan 534271632

R.H./L.H. Housing

$

$

Not available

10

Poulan 534225020

Motor

$91.99

$

Usually ships in 3-10 days

0

11

Poulan 534487215

Air Baffle

$

$

Not available

12

Poulan 534327002

P.C. Bridge Kit

$

$

Not available

13

Poulan 534193800

Screw

$

$

Not available

14

Poulan 534653000

Washer

$1.49

$

Usually ships in 3-10 days

0

15

Poulan 534379615

Line Cutter Guard

$

$

Not available

16

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 534970001

Screw

$

$

Not available

18

Poulan 534713000

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

19

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534316002

Harness Ass'y.

$

$

Not available

21

Poulan 534193700

Screw

$

$

Not available

22

Poulan 534487125

Rear Plate

$

$

Not available

23

Poulan 534659505

Shaft Adaptor

$

$

Not available

24

Poulan 534487402

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534337100

Insulator

$

$

Not available

26

Poulan 534158602

Foam Pad

$

$

Not available

27

Poulan 952710505

Spool & Line

$

$

Not available

28

Poulan 534157401

Spring

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 534486425

Hub Ass'y.

$

$

Not available

30

Poulan 534157600

Eyelet

$

$

Not available

31

Poulan 534270301

Cotter Pin

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 534228700

Screw

$

$

Not available

33

Poulan 534227601

Endbell Ass'y. (Drive)

$

$

Not available

34

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

36

Poulan 534747011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 534225120

Armature Ass'y.

$46.99

$

Usually ships in 3-10 days

0

38

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

39

Poulan 534238903

Washer

$

$

Not available

40

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

41

Poulan 534226000

Insulator

$

$

Not available

42

Poulan 534227800

Brush

$

$

Not available

43

Poulan 534228000

Brush Spring

$

$

Not available

44

Poulan 534227700

Brush Holder

$

$

Not available

45

Poulan 534332500

Power Switch

$

$

Not available

46

Poulan 534450400

Brush Kit (Incl. 42,43,44)

$

$

Not available
