SK 80C-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

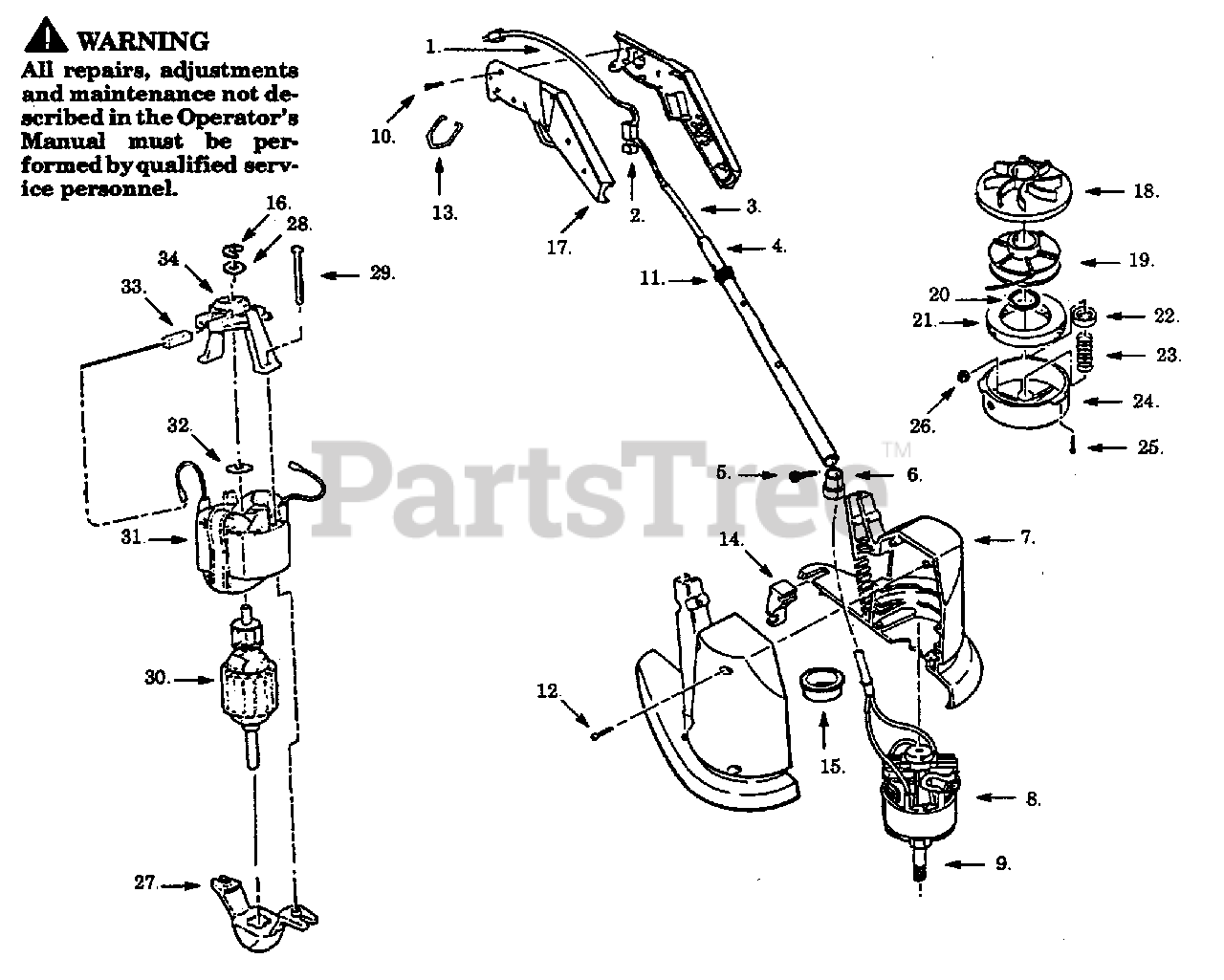

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234501

Power Cord

$

$

Not available

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534305805

Harness

$

$

Not available

4

Poulan 534386403

Tube

$

$

Not available

5

Poulan 534624002

Screw

$

$

Not available

6

Poulan 534299724

Rain Guard

$

$

Not available

7

Poulan 534273574

R.H./L.H. Housing

$

$

Not available

8

Poulan 534517300

Motor

$

$

Not available

9

Poulan 534167100

Drive Adapter

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 534193700

Screw

$

$

Not available

11

Poulan 534356805

Bushing

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534193800

Screw

$

$

Not available

13

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534525205

Blade Retainer

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 534455305

Air Baffle

$

$

Not available

16

Poulan 534605011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 534356734

R.H./L.H. Handle

$

$

Not available

18

Poulan 534167225

Rear Plate

$

$

Not available

19

Poulan 952710514

Spool & Line

$

$

Not available

20

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

21

Poulan 534167700

Foam Pad

$

$

Not available

22

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

23

Poulan 534167500

Spring

$

$

Not available

24

Poulan 534167915

Hub Ass'y.

$

$

Not available

25

Poulan 534270300

Cotter Pin

$

$

Not available

26

Poulan 534167600

Eyelet

$

$

Not available

27

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

28

Poulan 534608056

Washer

$

$

Not available

29

Poulan 534619037

Screw

$

$

Not available

30

Poulan 534517400

Armature Ass'y.

$

$

Not available

31

Poulan 534521010

Field Ass'y.

$

$

Not available

32

Poulan 534608056

Washer

$

$

Not available

33

Poulan 534600042

Brush

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534522012

Endbell Ass'y. (Brush)

$

$

Not available
