SLB 514 (80517) - Snapper Leaf Blower, 5hp Leaf Blower Assembly Parts Diagram

Leaf Blower, 5hp

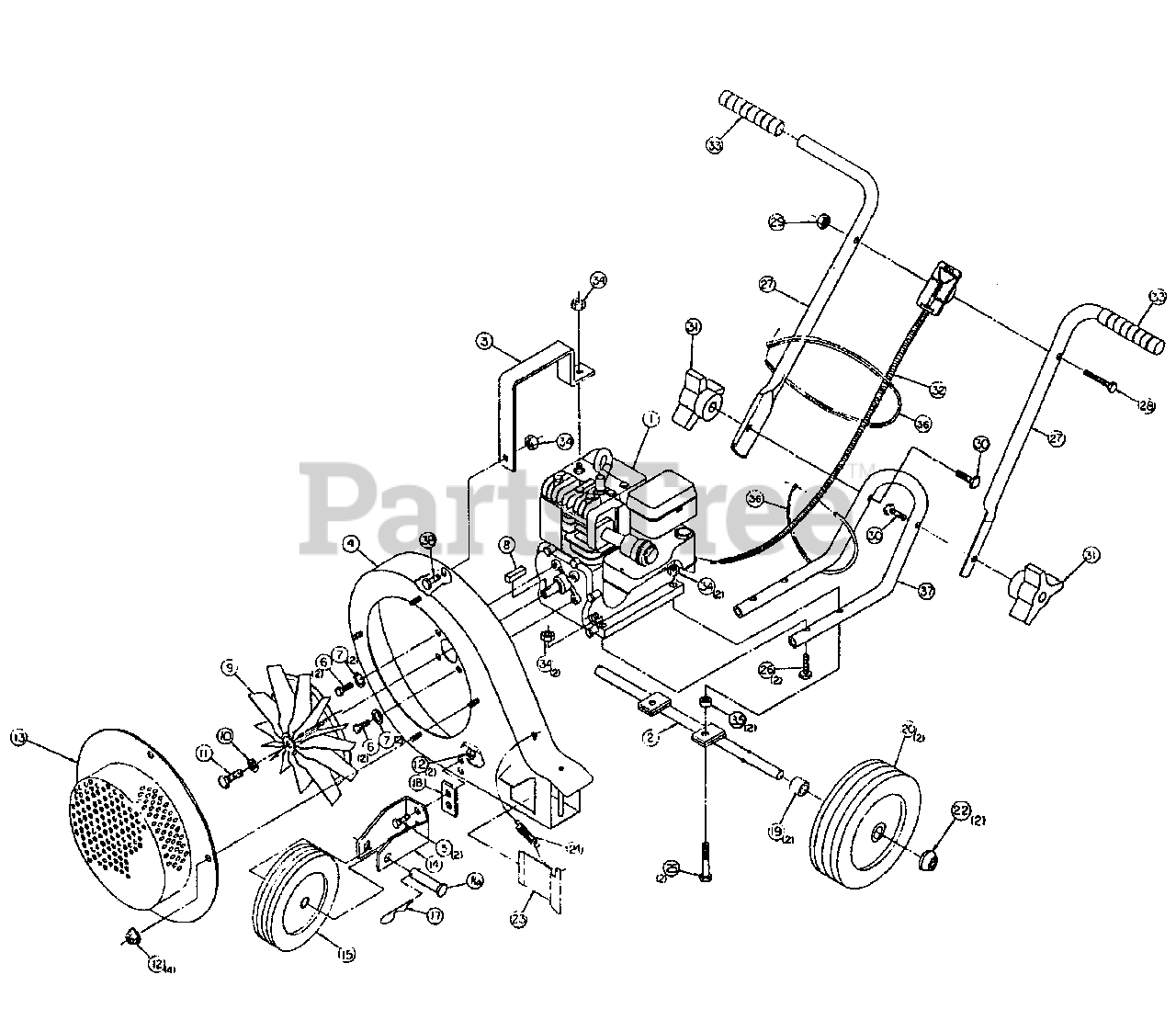

Leaf Blower Assembly Parts Diagram

  • Title
1

Engine,

Note: 7030415

$

$

Not available

2

Snapper 7030410

Axle Assembly

$

$

Currently unavailable

3

Snapper 7030409

Lifting Handle

$

$

Currently unavailable

4

Snapper 7030401RD

Housing Assembly

$

$

Currently unavailable

5

Snapper 0900066

5/16-18 x 3/4" HHCS

$

$

Currently unavailable

6

Snapper 0900408

5/16-24 x 3/4" HHCS

$

$

Currently unavailable

7

Snapper 0900392

5/16" Split Lockwasher

$

$

Currently unavailable

8

Snapper 7030424

1/4" x 1/4" x 2" Shaft Key

$

$

Currently unavailable

9

Snapper 70304302

Impeller Assembly

$

$

Currently unavailable

10

Snapper 0900228

WASHER, 3/8 Split Lock

$

$

Currently unavailable

11

Snapper 0900433

3/8-24 x 1" Whizlock Screw

$

$

Currently unavailable

12

Snapper 0900418

5/16-18 Whizlock Nut

$

$

Currently unavailable

13

Snapper 7030021A

Impeller Housing Cover

$

$

Currently unavailable

14

Snapper 7030414

Wheel Bracket

$

$

Currently unavailable

15

Snapper 7030419

Front Wheel 5 x 1.25

$

$

Currently unavailable

16

Snapper 7030024

Clevis Pin 1/2" DIA x 2" LG

$

$

Currently unavailable

17

Snapper 1000015

3/32" Hair Cotter Pin

$

$

Currently unavailable

18

Snapper 7030420

Wheel Bracket Spacer

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Snapper 7030108

Main Wheel

$

$

Currently unavailable

22

Snapper 0900457

Push Nut Cap

$

$

Currently unavailable

23

Snapper 7030413

Diverter

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Snapper 0900419

5/16-18 x 2 3/4" HHCS

$

$

Currently unavailable

26

Snapper 0900073

5/16-18 x 2 1/4" HHCS

$

$

Currently unavailable

27

Snapper 7030416

Upper Handle

$

$

Currently unavailable

28

Snapper 0900516

1/4-20 x 2 3/4" HHCS

$

$

Currently unavailable

29

Snapper 0900470

1/4-20 Nylock Nut

$

$

Currently unavailable

30

Snapper 0900090

5/16-18 x 1-1/2" HHCS

$

$

Currently unavailable

31

Snapper 5000051

Locking Knob

$

$

Currently unavailable

32

Snapper 7030422

Throttle Control

$

$

Currently unavailable

33

Snapper 5000041

Handle Grip

$

$

Currently unavailable

34

Snapper 0900048

5/16-18 Gripco Locknut

$

$

Currently unavailable

35

Snapper 7030500

Spacer, Engine

$

$

Currently unavailable

36

Snapper 9000074

Ty-Wrap

$

$

Currently unavailable

37

Snapper 7030417

Lower Handle

$

$

Currently unavailable

38

Snapper 0900067

5/16-18 x 5/8" HHCS, GR5

$

$

Currently unavailable
