SLT 23460AWSC (7800546) - Snapper 46" Lawn Tractor, 23hp Decal Group - F/C Parts Diagram

46" Lawn Tractor, 23hp

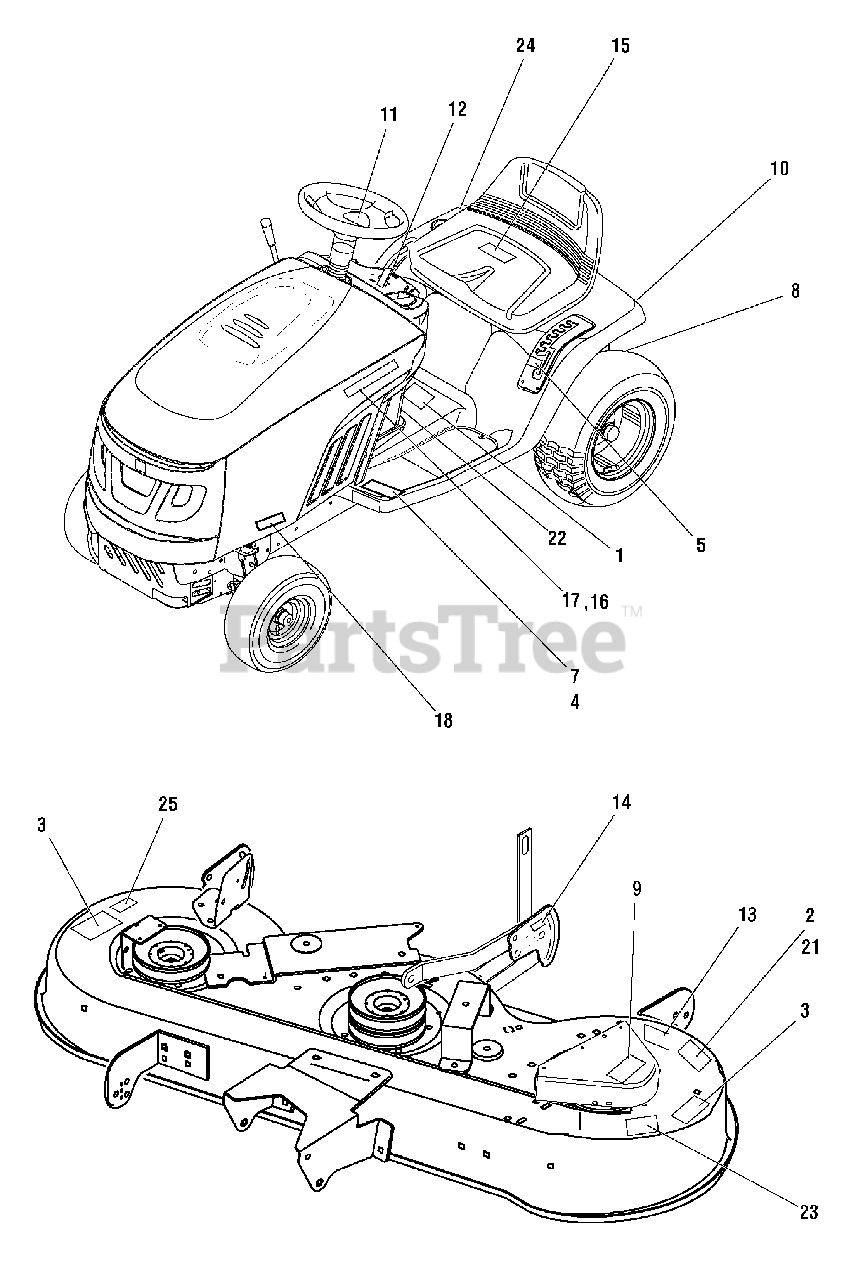

Decal Group - F/C Parts Diagram

  • Title

1

Snapper 7101663

DECAL, Umber
(Superseded to 7101663YP)

$12.99

$

Usually ships in 2-12 days

0

1

Snapper 7102734

DECAL, Umber
(Superseded to 7102734YP)

Note: (CE/Export)

$19.99

$

Usually ships in 2-12 days

0

2

Snapper 7101664

DECAL, No Step
(Superseded to 7101664YP)

$11.99

$

Usually ships in 2-12 days

0

2

Snapper 7102741

DECAL, No Step
(Superseded to 7102741YP)

Note: (CE/Export)

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 7101665

DECAL, Danger Cutting Deck, Do not Operate without Deflector
(Superseded to 7101665YP)

$14.99

$

In Stock, only 1 left!

0

3

Snapper 5102420

DECAL, Cut Hand/Foot, FC

Note: (CE/Export) (Model 2690858)

$

$

Currently unavailable

4

Snapper 7101936

DECAL, Drive Pedal
(Superseded to 7101936YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7101938

DECAL, Height of Cut
(Superseded to 7101938YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 724023

DECAL, Height of Cut or deck level
(Superseded to 44X7027MA)

Note: (CE/Export)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7101939

DECAL, Belt / Clutch
(Superseded to 7101939YP)

$12.99

$

Usually ships in 2-12 days

0

8

Snapper 7101940

DECAL, Weight Limitation
(Superseded to 7101940YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7102193

DECAL, 46 in Deck
(Superseded to 7102193YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7102196

DECAL, Snapper Logo, Rear
(Superseded to 7104148YP)

$35.99

$

In Stock, only 2 left!

0

11

Snapper 7102211

DECAL, Snapper Logo, Steering Wheel
(Superseded to 7102211YP)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper 7102562

DECAL, Dash, Electric PTO

$

$

Currently unavailable

13

Snapper 7102390

DECAL, Gauge Wheel Instruction, ENG/FC
(Superseded to 7102390YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7102391

DECAL, Deck Level, ENG/FC
(Superseded to 7102391YP)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 724021

DECAL, Auto Drive Dump Valve
(Superseded to 44X6962MA)

$9.99

$

Usually ships in 2-12 days

0

16

Snapper 7103130

DECAL, Snapper Logo, Hood, Right
(Superseded to 7103130YP)

$25.99

$

Usually ships in 2-12 days

0

17

Snapper 7103131

DECAL, Snapper Logo, Hood, Left
(Superseded to 7103131YP)

$25.99

$

Usually ships in 2-12 days

0

18

Snapper 7103140

DECAL, LT130/23 HP
(Superseded to 7103140YP)

$20.99

$

Usually ships in 2-12 days

0

21

Snapper 7101924

DECAL, No Step, FC
(Superseded to 7101924YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7101923

DECAL, Danger, FC
(Superseded to 7101923YP)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 7101925

DECAL, Cut Hand/ Foot, FC
(Superseded to 7101925YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7102392

DECAL, Deck Level Position, ENG/FC
(Superseded to 7102392YP)

$11.99

$

Usually ships in 2-12 days

0

25

Snapper 726492

DECAL, Warning - Pinch Point
(Superseded to 44X6828MA)

Note: (CE/Export) (Model 2690858)

$9.99

$

Usually ships in 2-12 days

0
