SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Engine Crankcase Parts Diagram

54" Lawn Tractor

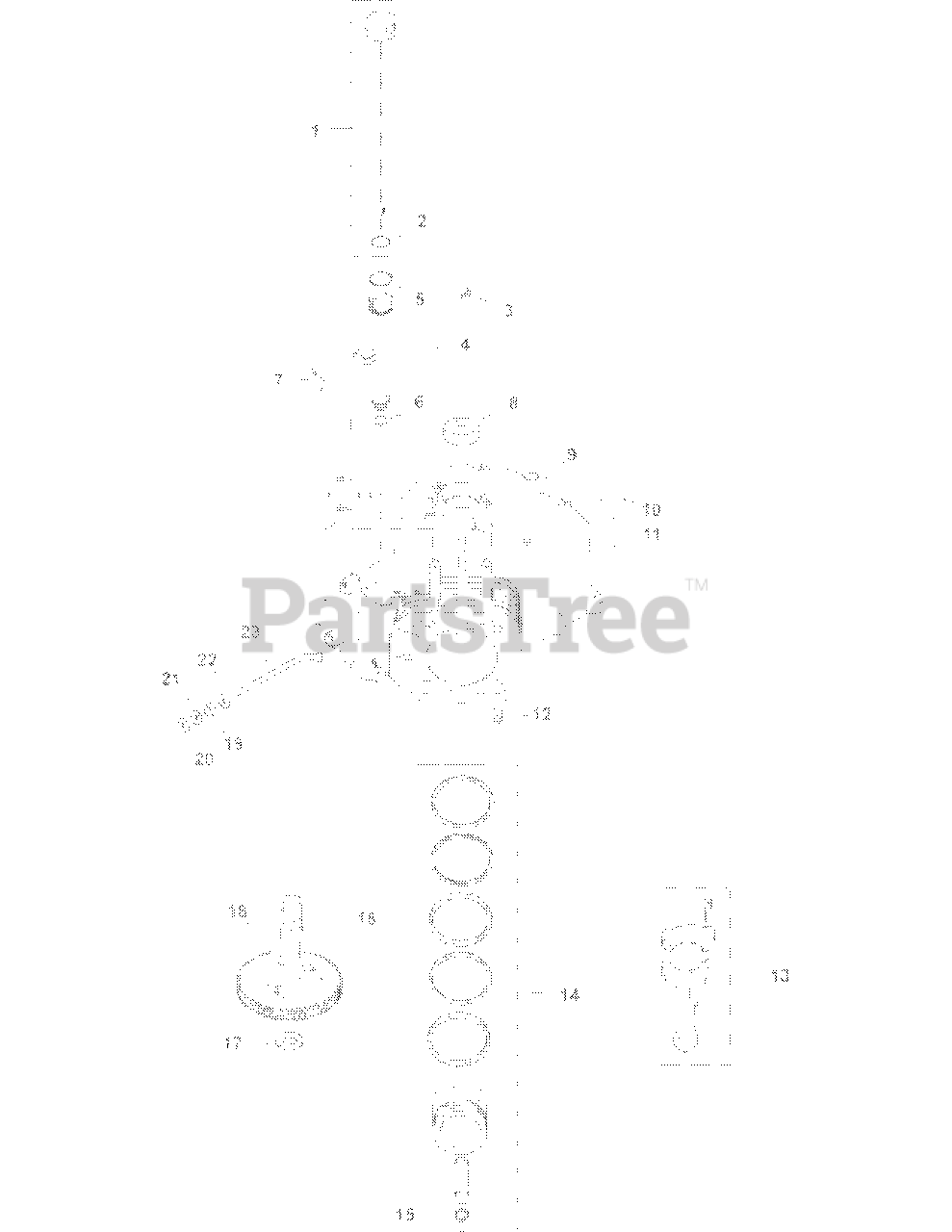

Engine Crankcase Parts Diagram

  • Title

1

MTD KH-32-038-01-S

DIPSTICK
(Superseded to KH-32-755-04-S)

Note: (Includes 2)

$

$

Not available

2

White Outdoor KH-12-153-02-S

O-RING, UPPER OIL FILL TUBE

$2.99

$

In Stock, Qty 12

0

3

White Outdoor KH-M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, only 3 left!

0

4

White Outdoor KH-12-123-04

KIT, OIL FILL TUBE - USE 12 123 35-S
(Superseded to KH-32-755-04-S)

$

$

Not available

5

White Outdoor KH-12-153-02-S

O-RING, UPPER OIL FILL TUBE

$2.99

$

In Stock, Qty 12

0

6

White Outdoor KH-12-153-01-S

O-RING, LOWER OIL FILL TUBE

$5.99

$

In Stock, Qty 8

0

7

White Outdoor KH-24-126-19

BRACKET, OIL FILL TUBE
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

8

White Outdoor KH-24-032-01-S

USE 24 032 19-S OIL SEAL
(Superseded to KH-24-032-19-S)

$8.99

$

In Stock, Qty 20+

0

9

N/A

CRANKCASE

Note: (Use: Short Block KH-32-522-03)

$

$

Not available

9

White Outdoor KH-32-522-03

Short Block
(Superseded to KH-32-522-07)

$

$

Not available

10

White Outdoor KH-24-018-04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, Qty 12

0

11

White Outdoor KH-12-402-02

REED, BREATHER

$

$

Not available

12

White Outdoor KH-24-380-16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 16

0

13

White Outdoor KH-24-067-24-S

CONNECTING ROD (STD)
(Superseded to KH-25-067-04-S)

$71.99

$

In Stock, Qty 10

0

14

MTD KH-25-874-01-S

KIT, PISTON W/ RING SET (Std)
(Superseded to KH-25-874-13-S)

Note: (includes 15, 16)

$324.99

$

In Stock, only 3 left!

0

14

MTD KH-24-874-27-S

KIT, PISTON W/RING SET (.08)
(Superseded to KH-25-874-07-S)

$313.99

$

Usually ships in 2-5 days

0

14

White Outdoor KH-24-874-28-S

KIT, PISTON W/RING SET (.25)
(Superseded to KH-25-874-16-S)

$313.99

$

In Stock, only 1 left!

0

15

White Outdoor KH-24-018-01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 9

0

16

White Outdoor KH-24-108-14-S

RING SET (STD)

$

$

Not available

16

White Outdoor KH-24-108-16-S

RING SET (.25)

$113.99

$

In Stock, only 2 left!

0

17

White Outdoor KH-12-422-07-S

SHIM, CAMSHAFT (WHITE .028")

Note: A.R.

$4.49

$

In Stock, only 2 left!

0

17

White Outdoor KH-12-422-08-S

SHIM, CAMSHAFT (BLUE .03")

Note: A.R.

$2.49

$

In Stock, only 1 left!

0

17

White Outdoor KH-12-422-09-S

SHIM, CAMSHAFT (RED .032")

Note: A.R.

$2.49

$

Usually ships in 2-5 days

0

17

White Outdoor KH-12-422-10-S

SHIM, CAMSHAFT (YELLOW .034")

Note: A.R.

$2.49

$

In Stock, Qty 10

0

17

White Outdoor KH-12-422-11-S

SHIM, CAMSHAFT (GREEN .036")

Note: A.R.

$2.49

$

Usually ships in 2-5 days

0

17

White Outdoor KH-12-422-12-S

SHIM, CAMSHAFT (GRAY .038")

Note: A.R.

$2.99

$

Usually ships in 2-5 days

0

17

White Outdoor KH-12-422-13-S

SHIM, CAMSHAFT (BLACK .04")

Note: A.R.

$2.99

$

Usually ships in 2-5 days

0

18

White Outdoor KH-32-012-01-S

KIT, CAMSHAFT

$136.99

$

Usually ships in 2-5 days

0

19

MTD KH-28-032-09-S

SEAL, GOVERNOR CROSS SHAFT

$3.99

$

Usually ships in 2-5 days

0

20

White Outdoor KH-24-018-09-S

RETAINER, RING

$2.99

$

In Stock, only 1 left!

0

21

White Outdoor KH-M-931010-S

WASHER, FLAT 9 MM

$2.49

$

Usually ships in 2-5 days

0

22

White Outdoor KH-24-468-15-S

WASHER, FLAT 11/32"

$2.49

$

Usually ships in 2-5 days

0

23

White Outdoor KH-24-144-38-S

SHAFT, GOVERNOR CROSS
(Superseded to KH-24-144-39-S)

$49.99

$

In Stock, only 1 left!

0

White Outdoor KH-25-357-14-S

LUBRICANT, CAMSHAFT

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 2 left!

0
