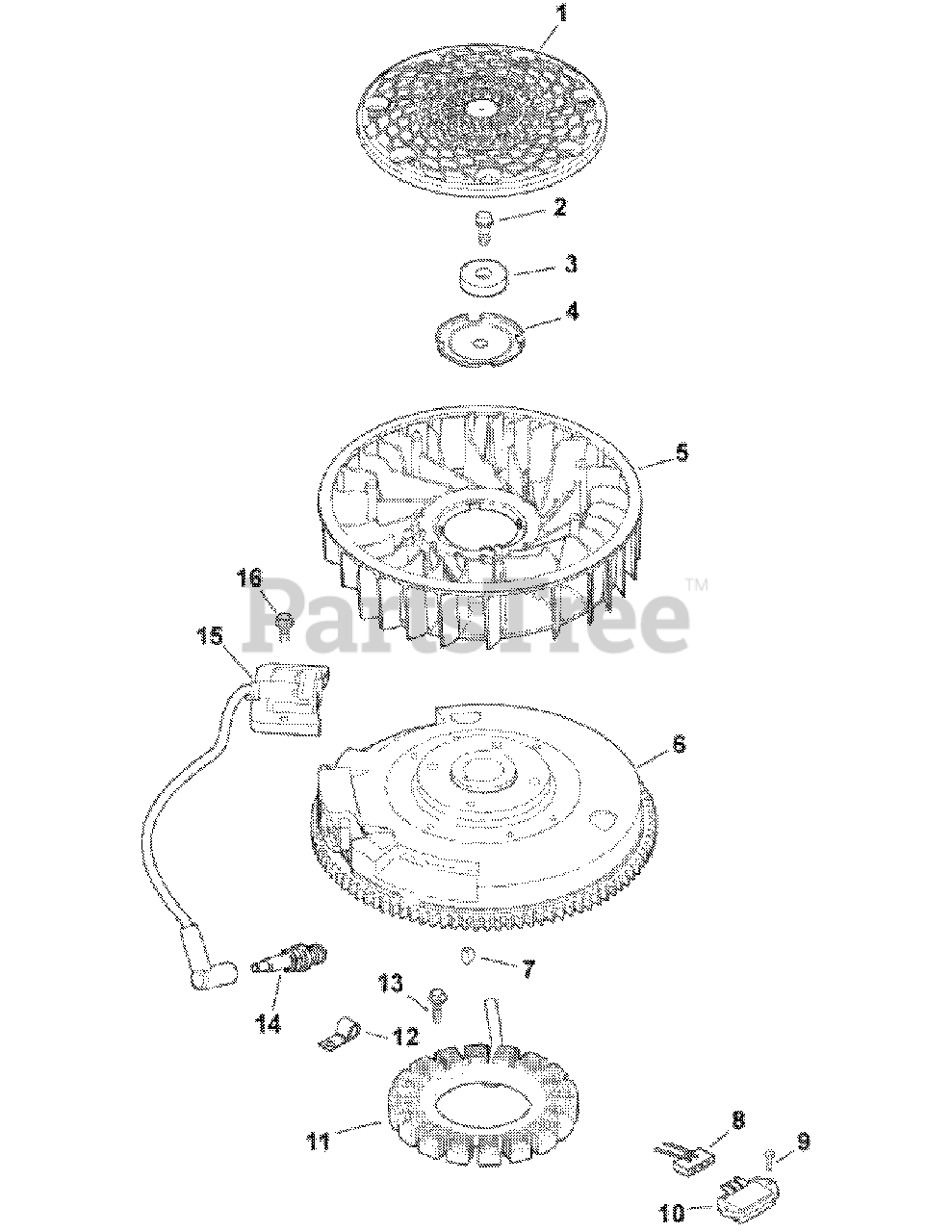

SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Engine Ignition & Electrical Parts Diagram

54" Lawn Tractor

Engine Ignition & Electrical Parts Diagram

  • Title

1

White Outdoor KH-32-162-03-S

SCREEN, GRASS

$4.99

$

In Stock, Qty 6

0

2

KH-12-086-14-S

SCREW, FLG M10X1.5X45

$

$

Not available

3

White Outdoor KH-12-468-03

WASHER, FLAT 13/32"

$

$

Not available

4

MTD KH-20-146-02-S

USE 20 146 04-S PLATE
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, only 2 left!

0

5

White Outdoor KH-32-157-01-S

FAN
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 7

0

6

White Outdoor KH-32-025-08-S

FLYWHEEL
(Superseded to KH-32-025-22-S)

$346.99

$

In Stock, only 2 left!

0

7

White Outdoor KH-X-42-15

KEY, 3/16" X 5/8"

$

$

Not available

8

White Outdoor KH-236602-S

CONNECTOR (3 CONTACT)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 9

0

9

White Outdoor KH-M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 1 left!

0

10

White Outdoor KH-41-403-09

RECTIFIER-REGULATOR
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 8

0

11

White Outdoor KH-237878

KIT, 15 AMP STATOR

$

$

Not available

12

White Outdoor KH-235173

CLIP, CABLE

$

$

Not available

13

White Outdoor KH-M-548025-S

SCREW, THD FRM M5X.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

14

White Outdoor 759-3336

PLUG, SPARK
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

15

White Outdoor KH-24-584-01

USE 24 584 45-S IGNITION MODULE
(Superseded to KH-24-584-45-S)

$110.99

$

Usually ships in 3-6 days

0

16

White Outdoor KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 7

0

White Outdoor KH-32-176-14-S

USE 32 176 14-S WIRING HARNESS

Note: NOT ILLUSTRATED

$

$

Not available

White Outdoor KH-25-454-03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
