SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Engine Oil Pan & Lubrication Parts Diagram

54" Lawn Tractor

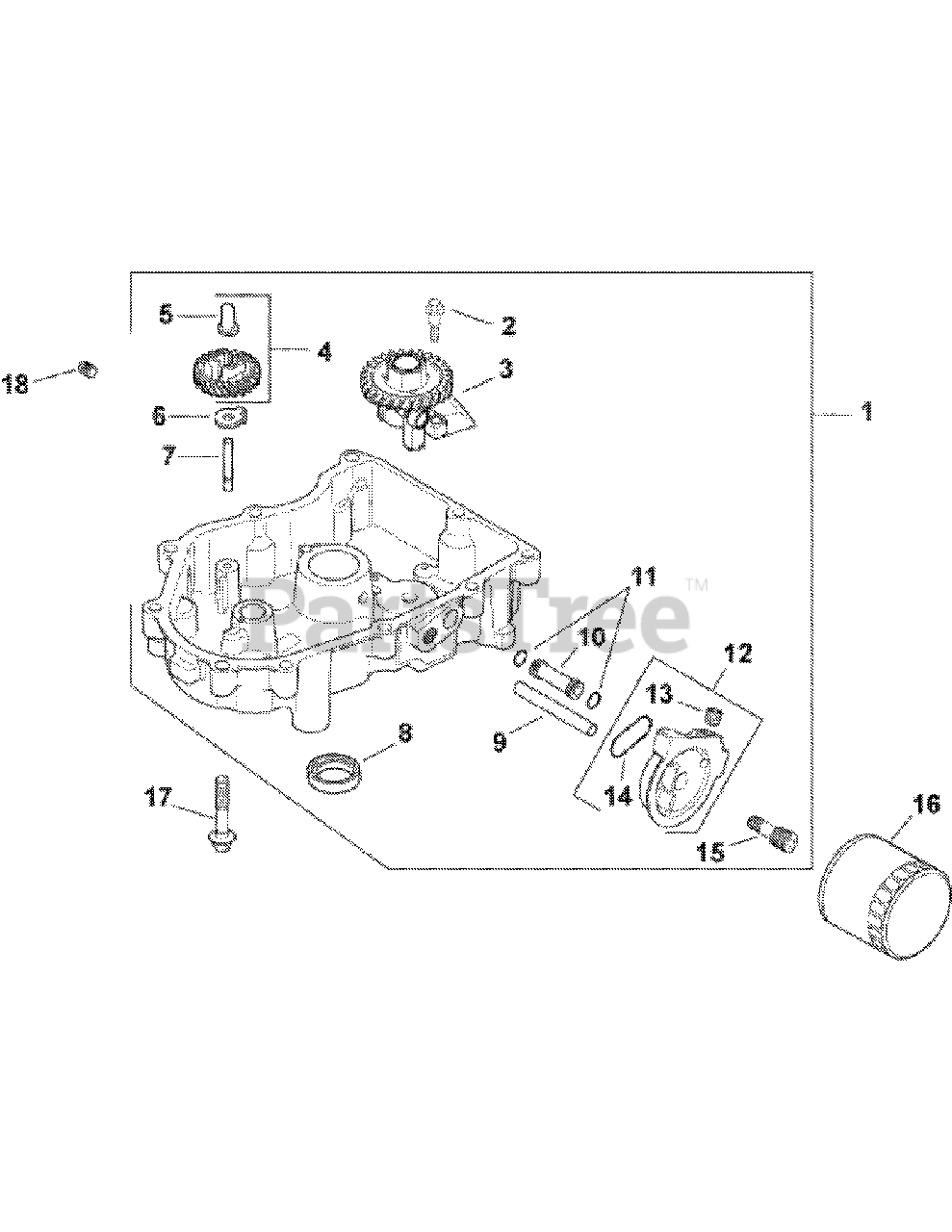

Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

MTD KH-32-199-02-S

PAN ASSEMBLY, OIL - USE 32 199 04-S
(Superseded to KH-32-199-20-S)

Note: (Includes 2-15)

$202.99

$

Usually ships in 2-5 days

0

2

White Outdoor KH-32-086-01-S

SCREW, SHD THD FRM M6x1.0x26.5

$3.49

$

In Stock, only 1 left!

0

3

White Outdoor KH-32-393-10-S

PUMP ASSEMBLY, OIL

$

$

Not available

4

White Outdoor KH-24-043-12

KIT, GOVERNOR GEAR W/PIN

Note: (Includes 5)

$

$

Not available

5

White Outdoor KH-12-380-01

PIN, GOVERNOR REGULATING

$

$

Not available

6

White Outdoor KH-24-448-02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

7

White Outdoor KH-12-144-02

SHAFT, GOVERNOR GEAR

$

$

Not available

8

White Outdoor KH-52-032-08-S

USE 25 032 06-S OIL SEAL
(Superseded to KH-25-032-06-S)

$12.99

$

In Stock, Qty 20+

0

9

White Outdoor KH-32-123-01-S

TUBE, OIL FEED - FILTER TO PAN

Note: (Filter to oil pan)

$

$

Not available

10

White Outdoor KH-32-123-03-S

TUBE, OIL FEED - PAN TO FILTER

Note: (Oil pan to filter)

$

$

Not available

11

White Outdoor KH-24-153-01

O-RING, OIL PICK-UP

$

$

Not available

12

MTD KH-32-029-07-S

USE 32 029 16-S OIL FLTR ADPTR
(Superseded to KH-32-029-10-S)

Note: includes 13,14

$

$

Not available

13

White Outdoor KH-25-139-60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

14

White Outdoor KH-32-153-04-S

O-RING, OIL FILTER ADAPTER

$3.49

$

In Stock, only 2 left!

0

15

White Outdoor KH-32-136-03-S

NIPPLE, OIL FILTER

$

$

Not available

16

White Outdoor KH-12-050-01-S

FILTER, OIL

$18.99

$

In Stock, Qty 20+

0

17

White Outdoor KH-24-086-17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0

18

White Outdoor KH-25-139-57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 1 left!

0
