SLT-5400 (13AP62TK090) - White Outdoor 54" Lawn Tractor (2008) Hood, Dash, Grille & Bumper Parts Diagram

54" Lawn Tractor

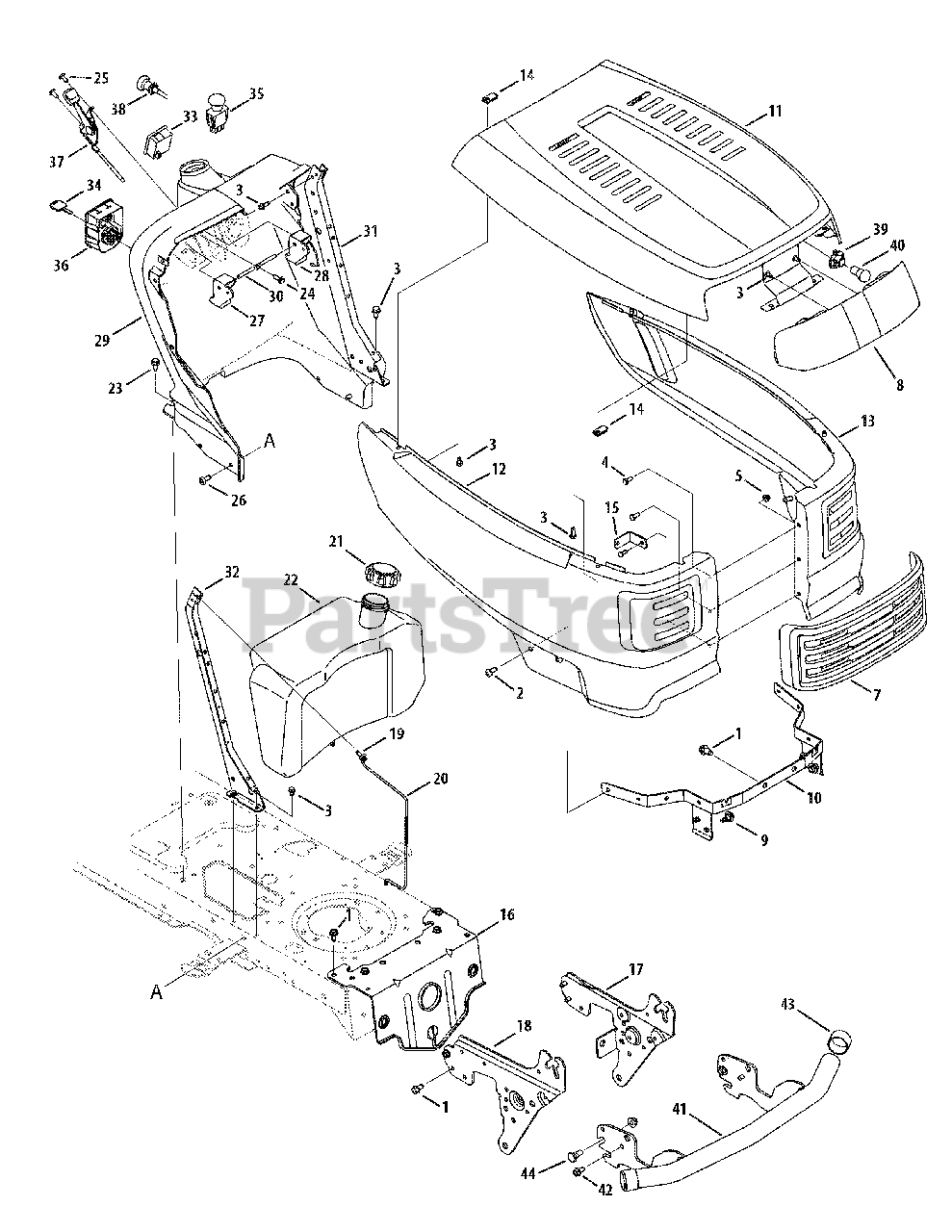

Hood, Dash, Grille & Bumper Parts Diagram

  • Title

1

White Outdoor 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.5

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 731-06358

T-Style Grille Insert

$25.99

$

Usually ships in 3-6 days

0

8

White Outdoor 731-06414

T-Style Lens

$

$

Not available

9

White Outdoor 738-04091A

Shoulder Screw,.43 x.29

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 783-04606B

Hood Pivot Bracket
(Superseded to 783-04606C)

Variations

White Outdoor 783-04606B-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

White Outdoor 783-04606B-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04606B-0716

BRACKET-PIVOT HOOD - CUB YELLOW-99 (0716)

$45.99

$

In Stock, only 1 left!

0

White Outdoor 783-04606B-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

11

White Outdoor 783-04827

Hood

Variations

White Outdoor 783-04827-0662

HOOD - OYSTER GRAY (0662)

$198.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04827-0638

HOOD TROY-BILT RED - MTD/TROY-BILT RED (0638)

$

$

Not available

$173.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-04828

Side Panel, RH

Variations

White Outdoor 783-04828-0638

SIDE PANEL RH RED - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04828-0662

PANEL:SIDE:TROY RH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

13

White Outdoor 783-04967

Side Panel, LH

Variations

White Outdoor 783-04967-0638

PANEL:SIDE:LH W/0 - MTD/TROY-BILT RED (0638)

$74.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04967-0662

PANEL:SIDE:LH W/0 - OYSTER GRAY (0662)

$74.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

14

White Outdoor 783-05223

T-Style Hood Fastener

$4.99

$

Usually ships in 3-6 days

0

15

White Outdoor 783-05315

Front Hood Bracket
(Superseded to 783-05315-0637)

Variations

White Outdoor 783-05315-0637

BRACKET-HOOD:FRONT - POWDER BLACK (0637)

$4.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

16

White Outdoor 783-05326

Pivot Bar Bracket
(Superseded to 783-05326B-0637)

Variations

White Outdoor 783-05326-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$38.99

$

In Stock, only 1 left!

0

$38.99

$

In Stock, only 1 left!

0

17

White Outdoor 783-05417

Pivot Support Bracket - LH

Variations

White Outdoor 783-05417-0637

Hood Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 783-05418

Pivot Support Bracket - RH

Variations

White Outdoor 783-05418-0637

Hood Pivot Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 747-04161

Gas Tank Support Rod

$

$

Not available

21

White Outdoor 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

22

White Outdoor 751-10609

Fuel Tank, 2.5 gal.

$96.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0607

Screw, 5/16-18 x 0.500

$6.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0895

Screw, 1/4-15, .750

$5.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-1017

Screw, 1/4-14, 0.625

$7.99

$

In Stock, Qty 20+

0

26

White Outdoor 710-1611B

Screw, 5/16-18, 0.750

$6.49

$

In Stock, only 2 left!

0

27

White Outdoor 731-04215

Dash Cruise Lever
(Superseded to 931-04215)

$

$

Not available

28

White Outdoor 731-04217

Dash Brake Lever
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

29

White Outdoor 731-06168

Dash Panel, T-Style w/ Electric PTO

$117.99

$

In Stock, only 1 left!

0

30

White Outdoor 747-1196

Bent Lever Rod

$14.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-04323F

Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

32

White Outdoor 783-04285F

Dash Support, RH
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 725-04036C

Systems Ind. Monitor w/Hr. Mtr.
(Superseded to 925-06170B)

$65.99

$

Usually ships in 3-6 days

0

34

White Outdoor 725-1745A

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

34

White Outdoor 725-1744A

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

35

White Outdoor 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

36

White Outdoor 725-04227B

Ignition Switch
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

37

White Outdoor 746-04417

Throttle Control/Cable
(Superseded to 946-04417)

$51.99

$

Usually ships in 3-6 days

0

38

White Outdoor 746-1085A

Choke Control Cable
(Superseded to 946-1085A)

$28.99

$

In Stock, Qty 13

0

39

White Outdoor 725-1649

Headlight Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

40

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

41

White Outdoor 683-04219A

Bumper Assembly
(Superseded to 683-04219B-0637)

Variations

White Outdoor 683-04219A-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$57.99

$

In Stock, only 4 left!

0

$57.99

$

In Stock, only 4 left!

0

42

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 731-05674

Cap

$4.99

$

In Stock, Qty 20+

0

44

White Outdoor 738-0143

Shoulder Bolt, 3/8-16

$3.99

$

In Stock, Qty 20+

0

White Outdoor 629-04083A

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$36.99

$

In Stock, only 1 left!

0

White Outdoor 725-04404A

Wire Harness
(Superseded to 925-04404A)

Note: Not Shown (w/ Hr. Mtr. & Elctr. PTO)

$223.99

$

Usually ships in 3-6 days

0

White Outdoor 777X42188

Headlight Lens Reflector RH

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0

White Outdoor 777X42187

Headlight Lens Reflector LH

Note: Not Shown

$

$

Not available

White Outdoor 725-0157

Cable Tie, 3/16 x .05 x 7.4

Note: Not Shown

$3.49

$

In Stock, only 4 left!

0
