SLTX 1054 (13WK92AK056) - Cub Cadet 54" Lawn Tractor (2011) Kohler SV735-3002 Ignition & Electrical Parts Diagram

54" Lawn Tractor

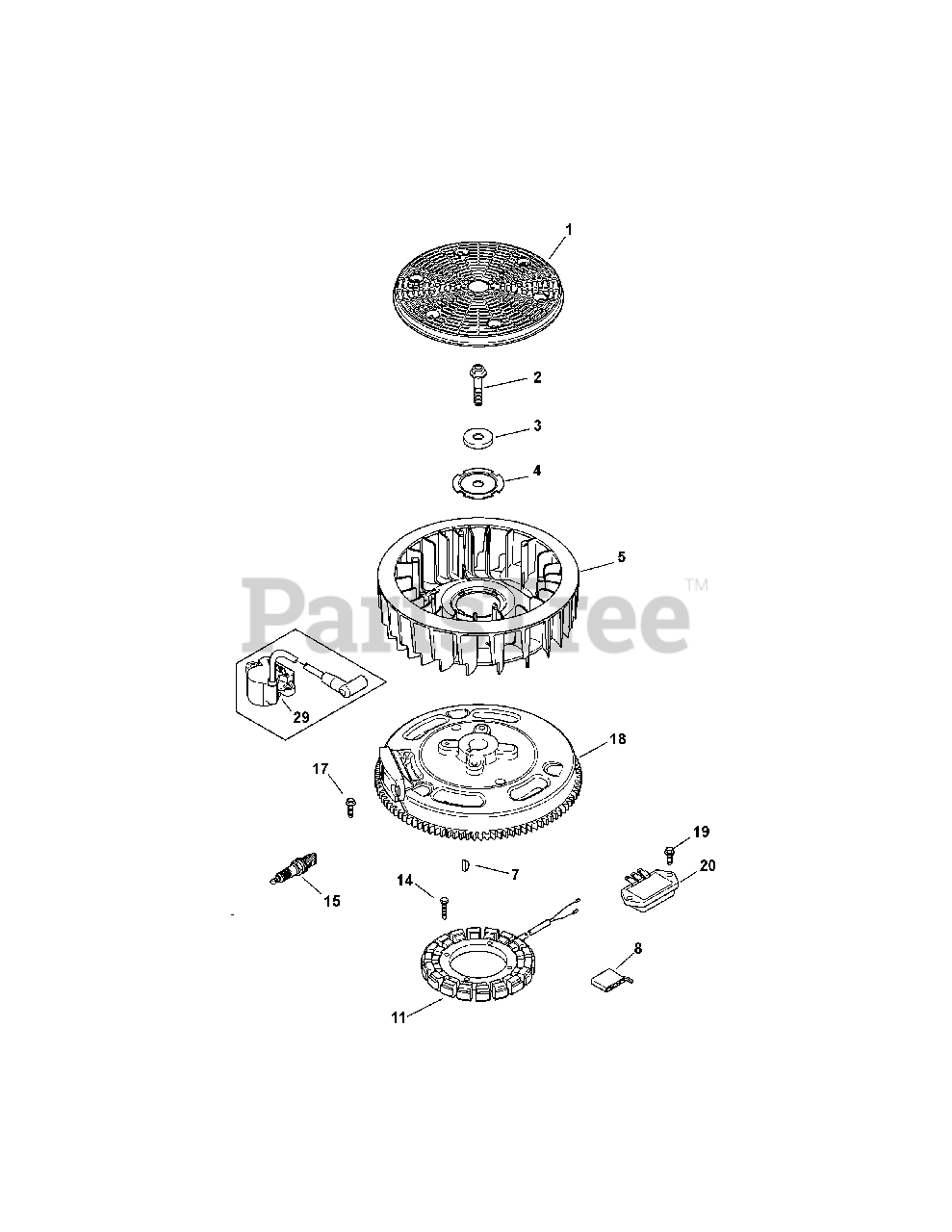

Kohler SV735-3002 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Grass Screen

$4.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-12-086-14

Flg. Screw, M10 x 1.5 x 45
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-468-03

Flat Washer, 13/32

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 7

0

7

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

8

Cub Cadet KH-25-155-41-S

Connector

$7.99

$

In Stock, Qty 11

0

11

Cub Cadet KH-237878

15 Amp Stator Kit (Inc. KH-25-452-01-S)

$149.99

$

In Stock, Qty 10

0

14

Cub Cadet KH-M-548025-S

Thd. Frm. Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet KH-M-545020-S

Flg. Thd. Frm. Screw, M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

18

Cub Cadet KH-32-025-15-S

Flywheel Assembly
(Superseded to KH-32-025-21-S)

$346.99

$

In Stock, only 1 left!

0

29

Cub Cadet KH-24-584-63-S

Spark Adv. Module Assembly

$

$

Not available

Cub Cadet KH-25-454-03-S

Wire Tie

Note: Not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-32-176-26-S

Wiring Harness

Note: Not shown

$

$

Not available

Cub Cadet KH-47-154-01-S

Cable Clip

Note: Not shown

$4.99

$

In Stock, Qty 7

0

Cub Cadet KH-25-452-01-S

Terminal

Note: Not shown

$5.49

$

Usually ships in 2-5 days

0
