SM 132 (SM 132 LE) - Poulan String Trimmer, Type 1 (2006-12) Shaft - Type 1 Parts Diagram

String Trimmer, Type 1

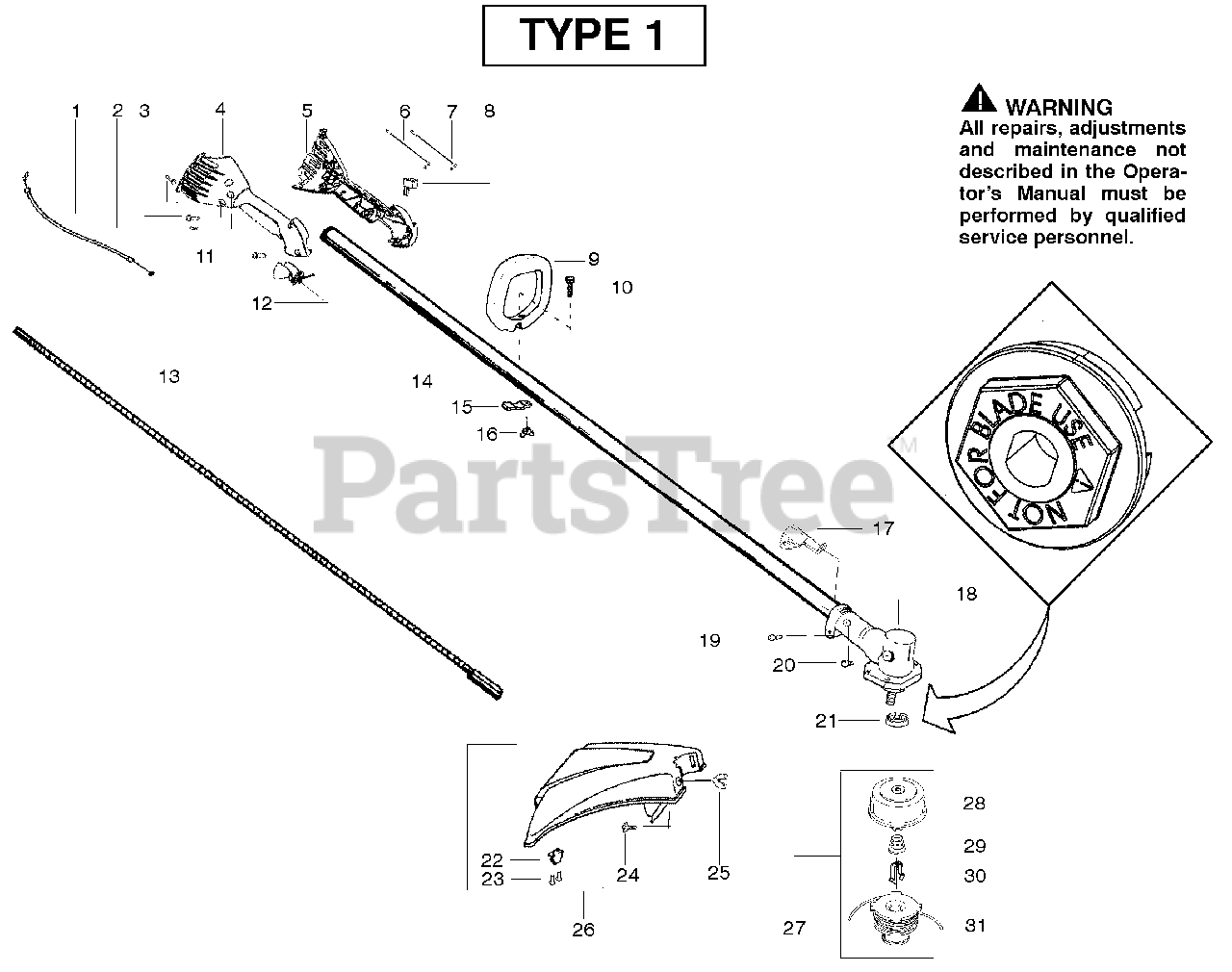

Shaft - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530054942

Assy-Throttle cable

$7.49

$

In Stock, only 3 left!

0

2

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, Qty 15

0

3

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 15

0

4

Electrolux/AYP 530054837

Throttle Hsg.-Right

$

$

Not available

5

Electrolux/AYP 530071553

Kit-Left Throttle Hsg.

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530054943

Assy-Front wire

$

$

Not available

7

Electrolux/AYP 530055724

Assy- Front Wire (upper)

$

$

Not available

8

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 530055699

Assy-Handle

Note: (Incl. 10,15,16)

$11.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 15

0

12

Electrolux/AYP 530054940

Trigger-Throttle

$3.99

$

In Stock, Qty 10

0

13

Electrolux/AYP 530095963

Shaft-Flex

$

$

Not available

14

Electrolux/AYP 530055355

Assy-Driveshaft

$44.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530088416

Clamp-Assist Handle

$

$

Not available

16

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530095812

Bracket - Shield

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530071584

Assy.-Gearbox non blade

$

$

Not available

19

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530016224

Screw

$4.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 530095814

Non-Blade Dust cup

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 15

0

24

Electrolux/AYP 530015820

Bolt

$6.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530069779

Kit-Shield Ass'y.

Note: (Incl. 22,23)

$

$

Not available

27

Electrolux/AYP 952711581

Accy.- Cutting Head
(Superseded to 952711550)

Note: (Incl. 28-31)

$

$

Not available

28

Electrolux/AYP 530095772

Assy. - Hub/Arbor (3/8lh , 2x)

$

$

Not available

29

Electrolux/AYP 530053241

Spring - Return

$

$

Not available

30

Electrolux/AYP 530401957

Retainer - Spool

$4.99

$

In Stock, Qty 5

0

31

Electrolux/AYP 952711580

Accy.-Wound Spool
(Superseded to 952711551)

$

$

Not available

31

Electrolux/AYP 530164890

Operator Manual

Note: Not Shown

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

31

Electrolux/AYP 530057369

Decal-Start Instructions

Note: Not Shown

$

$

Not available
