SM 30 SB (966479401) - Poulan Pro String Trimmer (2010-11) SHAFT HANDLE Parts Diagram

String Trimmer

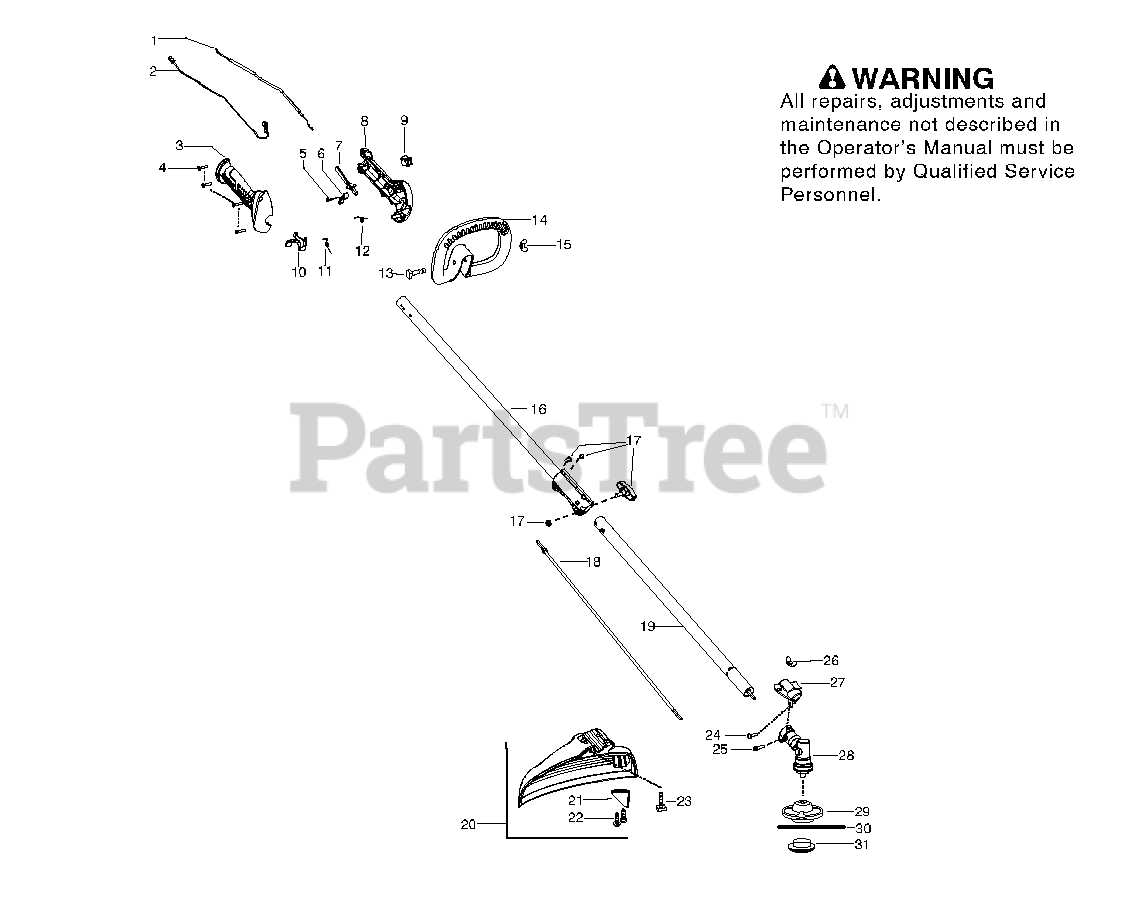

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 575724301

CABLE

$4.99

$

In Stock, only 3 left!

0

2

Poulan 575724201

SWITCH WIRE ASSY

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 577022701

THROTTLE HOUSING (RH)

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 577107001

SCREW

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 576146601

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 576146701

ARM

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 575723801

LOCK

$

$

Not available

8

Poulan 577022801

THROTTLE HOUSING (LH)

$3.34

$

Usually ships in 3-10 days

0

9

Poulan 574675401

SWITCH

$4.99

$

In Stock, Qty 11

0

10

Poulan 576919101

TRIGGER

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 576830301

TRIGGER SPRING

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 575723901

SPRING

$

$

Not available

13

Poulan 530015786

BOLT 1/4-20 X 2 SQUARE

$4.99

$

In Stock, only 4 left!

0

14

Poulan 530058583

HANDLE ASSIST 1"

Note: INCL 13 15

$8.99

$

Usually ships in 3-10 days

0

15

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

16

Poulan 575403001

KIT
(Superseded to 579214401)

Note: INCL 17

$

$

Not available

17

Poulan 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, Qty 9

0

18

Poulan 545132002

Flex Shaft

$7.49

$

In Stock, only 1 left!

0

19

Poulan 545003367

KIT SHAFT LOWER SST BLACK

Note: INCL 18 24 25 27 28

$84.99

$

Usually ships in 3-10 days

0

20

Poulan 545003325

KIT SHIELD DOM NO BLADE

Note: INCL 21 22 23 26

$27.99

$

Usually ships in 3-10 days

0

21

Poulan 530052286

LINE CUTTER

$

$

Not available

22

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

23

Poulan 530015820

BOLT, TYPE 2

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

26

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

27

Poulan 545150701

Bracket

$4.99

$

In Stock, only 3 left!

0

28

Poulan 530096099

GEARBOX 1

$53.99

$

In Stock, only 1 left!

0

29

Poulan 545053902

ASSY FIXED LINE HEAD

$37.99

$

In Stock, only 3 left!

0

30

Poulan 952711635

LINE FOR WT3100.080" PP325.115

$

$

Not available

31

Poulan 545049501

CAP FIXED LINE

$9.99

$

Usually ships in 3-10 days

0
