SM 30 SB - Poulan Pro String Trimmer Engine Parts Diagram

String Trimmer

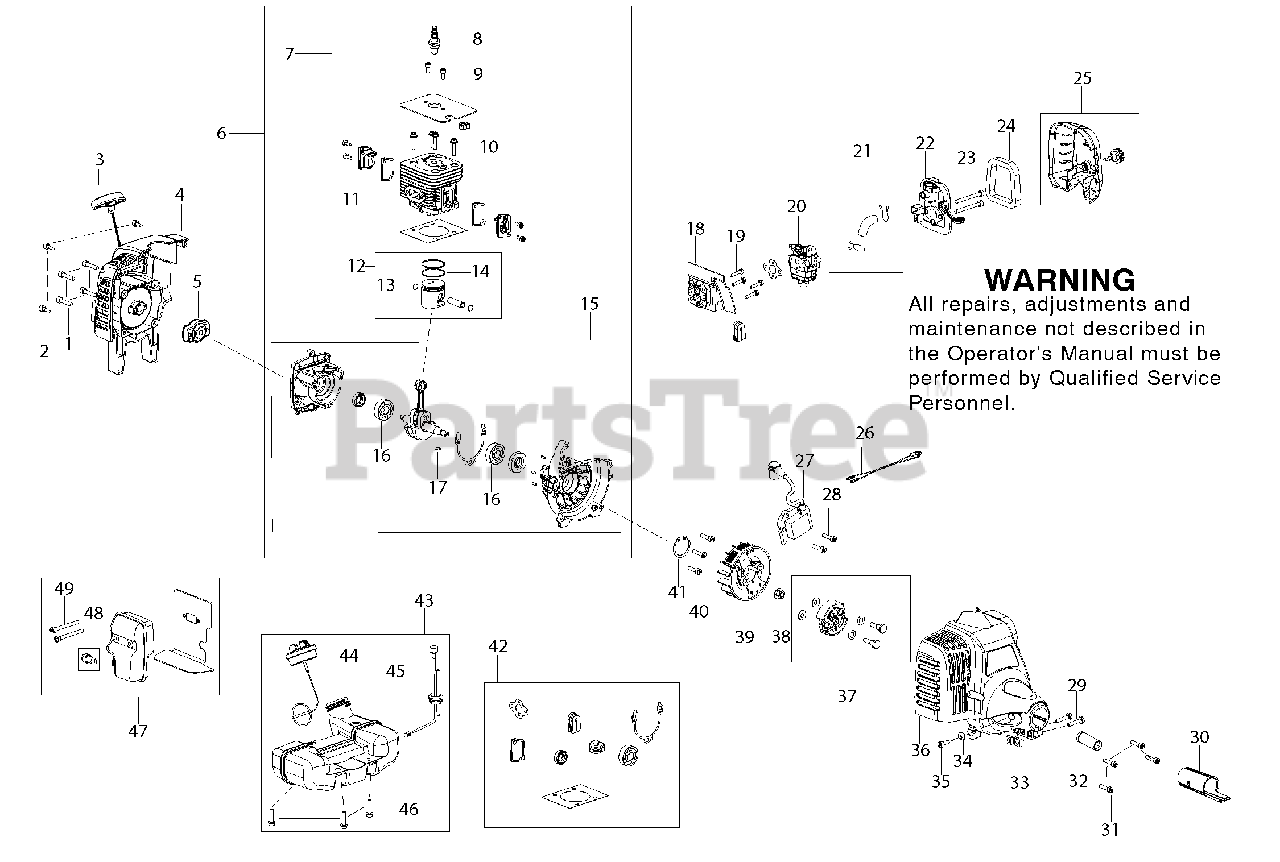

Engine Parts Diagram

  • Title

1

Poulan 575532001

Screw (9sgk-05-12.5, 4-pack)

$4.99

$

In Stock, Qty 20+

0

2

Poulan 576028501

Screw (6sdabb3.5-18)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 576128601

Kit - Rope/Handle

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 575390801

Kit - Rear Shroud Assembly
(Superseded to 575720701)

Note: (Incl. 3)

$31.99

$

Usually ships in 3-10 days

0

5

Poulan 574590001

Assy. - Pawls (9228-md0107)

$

$

Not available

6

Poulan 575390601

Kit - Short Block Assembly

Note: (Incl. 7,15)

$

$

Not available

7

Poulan 575803701

Kit - Piston & Cylinder

Note: (Incl. 8,9,10,11,12)

$

$

Not available

8

Poulan 576127301

Plug - Spark
(Superseded to 574587001)

$6.99

$

In Stock, Qty 20+

0

9

Poulan 575532501

Screw (9sgeb-05-10, 2-pack)

$2.23

$

Usually ships in 3-10 days

0

10

Poulan 575532401

Screw (9srcb-05-22,4-pack)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 575532201

Screw (9sgeb-04-10,4-pack)

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 575403201

Kit - Piston & Ring

Note: (Incl. 13,14)

$

$

Not available

13

Poulan 574588801

Circlip (9131-334501)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 574588701

Ring - Piston (9189-334501)

$

$

Not available

15

Poulan 575803801

Kit - Crankcase & Crankshaft

$

$

Not available

16

Poulan 575531601

Bearing (9db-620101, 2-pack)

$3.99

$

In Stock, Qty 6

0

17

Poulan 574589301

Key (6221-830301)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 576128001

Adaptor - Carburetor

$4.99

$

In Stock, only 2 left!

0

19

Poulan 575531801

Screw - Carb. Adaptor (9skkb05-19, 4-pack)

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 576128801

Assembly - Carburetor

$34.99

$

In Stock, Qty 5

0

21

Poulan 575403301

Kit - Intake Tube

$4.99

$

In Stock, only 3 left!

0

22

Poulan 575391001

Kit - Air Box Base Assembly

$6.49

$

In Stock, Qty 6

0

23

Poulan 576127901

Screw - Air Box

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 574590201

Filter - Air (9183-334501)

$4.99

$

In Stock, Qty 14

0

25

Poulan 575390901

Kit - Air Box Cover Assembly

Note: (Incl. knob)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 574589701

Assy - Coil Wire (9010-332102)

$2.49

$

In Stock, only 3 left!

0

27

Poulan 576127401

Module - Ignition
(Superseded to 575535201)

$34.99

$

In Stock, only 1 left!

0

28

Poulan 574590501

Screw (9sgeb-05-20, 5-pack)

$72.99

$

Usually ships in 3-10 days

0

29

Poulan 576128301

Screw - Nose Clamp

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 575349001

Insert - Fan Housing

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 576128401

Screw - Fan Hsg to Crankcase

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 575348901

Guide - Flexshaft

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 576128201

Nut - Square (Nose Clamp)

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530016285

Washer - Lock

$

$

Not available

35

Poulan 575962301

Screw (9sdabb05-13)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 575390701

Kit - Fan Housing Assembly

$

$

Not available

37

Poulan 575391201

Kit - Clutch Assembly

$12.99

$

Usually ships in 3-10 days

0

38

Poulan 574634601

Nut - Flywheel (9nhc-08)

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 576128101

Assembly - Flywheel
(Superseded to 575535101)

$12.99

$

Usually ships in 3-10 days

0

40

Poulan 574589601

Screw (9sgeb-05-20)

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 574592201

C-Ring (9cb-32)

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 575403101

Kit - Gasket

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 575803901

Kit - Fuel Tank Assembly

Note: (Incl. 44,45,46)

$

$

Not available

44

Poulan 576128901

Assembly - Fuel Cap
(Superseded to 574607701)

$4.99

$

In Stock, Qty 5

0

45

Poulan 575130601

Kit - Fuel Line Assembly

$

$

Not available

46

Poulan 574592501

Screw (9skkby05-18)

$2.23

$

Usually ships in 3-10 days

0

47

Poulan 575391101

Kit - Muffler Assembly

Note: (Incl. 48,49)

$15.99

$

Usually ships in 3-10 days

0

48

Poulan 576128501

Kit - Spark Arrestor
(Superseded to 575391101)

$15.99

$

Usually ships in 3-10 days

0

49

Poulan 575532301

Screw (9sxmbj05-50, 2-pack)

$3.99

$

Usually ships in 3-10 days

0
