SM 400 - Poulan Pro Blower, Type 3 Engine Type 3 Parts Diagram

Blower, Type 3

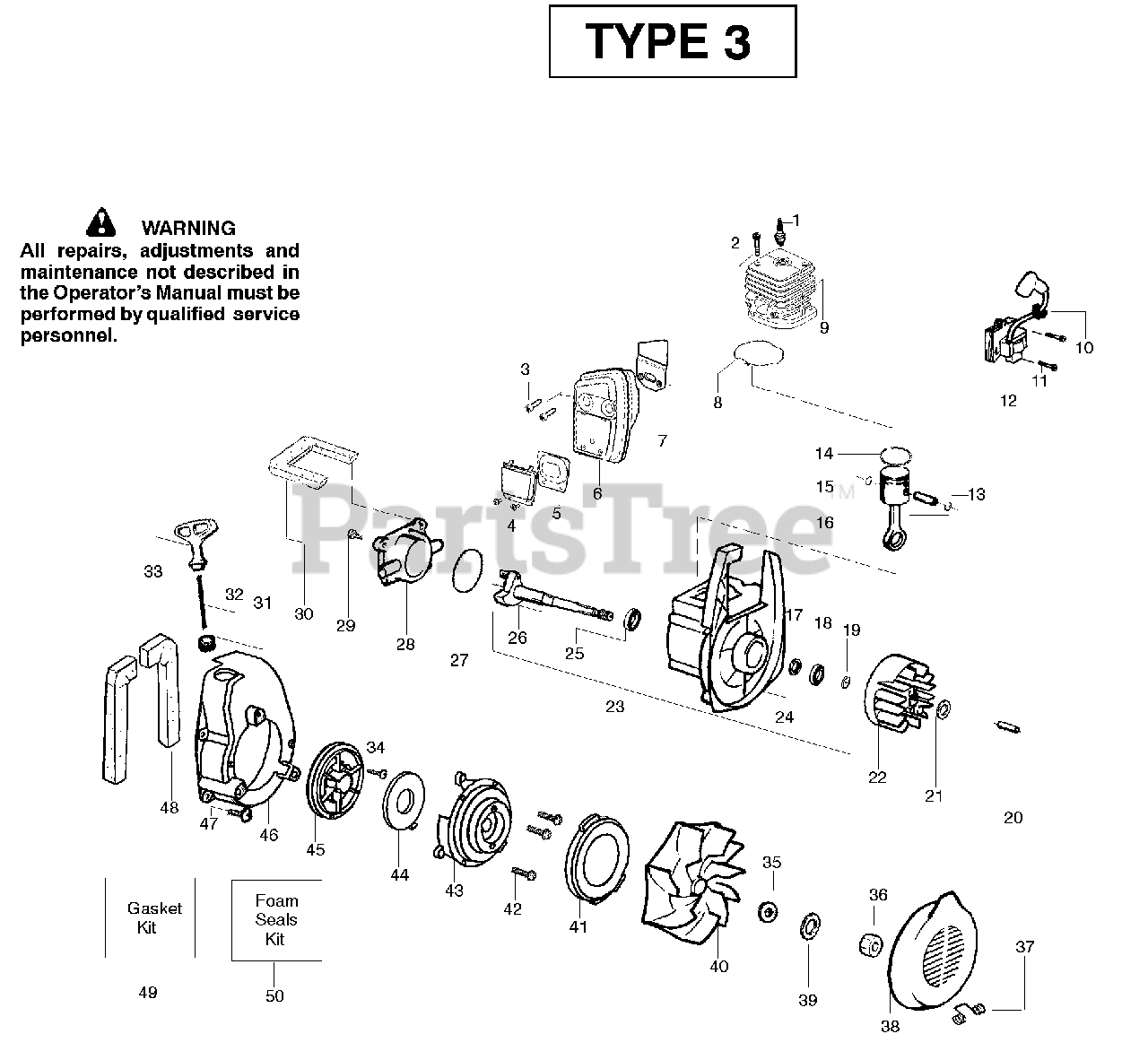

Engine Type 3 Parts Diagram

  • Title

1

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

2

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

3

Poulan 530016387

Screw-Muffler-Internal

$

$

Not available

4

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530071593

Kit-Spark Screen

Note: (incl. #4)

$

$

Not available

6

Poulan 530071834

Kit-Muffler
(Superseded to 530071592)

Note: (incl. 3,4,5, & 7)

$27.99

$

In Stock, only 1 left!

0

7

Poulan 530071458

Gasket-Baffle (kit)

$

$

Not available

8

Poulan 530071458

Gasket-Cylinder (kit)

$

$

Not available

9

Poulan 530071468

Kit-Cylinder
(Superseded to 530012458)

$26.99

$

Usually ships in 3-10 days

0

10

Poulan 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530016357

Screw-Ignition Module

$6.49

$

In Stock, Qty 5

0

12

Poulan 530035505

Ignition Module

$47.99

$

In Stock, only 4 left!

0

13

Poulan 530071476

Kit-Piston

Note: (Incl. 14 & 15)

$40.99

$

Usually ships in 3-10 days

0

14

Poulan 530012472

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 11

0

15

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

17

Poulan 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

18

Poulan 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

19

Poulan 530015941

Retainer Ring-C'chaft

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530016190

Spacer-Flywheel

$

$

Not available

21

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

22

Poulan 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

23

Poulan 530071456

Assy-Crankcase/Crank shaft

Note: (incl. 19,24,26)

$

$

Not available

24

Poulan 530012492

Assy-Crankcase

Note: (Incl. 17,18,25)

$

$

Not available

25

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

26

Poulan 530012452

Assy-Crankshaft

$33.99

$

Usually ships in 3-10 days

0

27

Poulan 530071458

O-ring-C/case (kit)

$

$

Not available

28

Poulan 545064601

Cover-Crankcase

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

30

Poulan 530071459

Foam-219mm (kit)

$

$

Not available

31

Poulan 530029182

Eyelet-Flange

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530071467

Kit-Rope

Note: (Incl. 34)

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 530049488

Handle-Starter

$3.99

$

In Stock, only 1 left!

0

34

Poulan 530016391

Screw-Rope

$2.23

$

Usually ships in 3-10 days

0

35

Poulan 530016402

Washer-Belleville

$

$

Not available

36

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

38

Poulan 530049313

Inlet Door

$

$

Not available

39

Poulan 530016279

Washer

$3.99

$

In Stock, only 1 left!

0

40

Poulan 530069817

Assy-Impeller

$

$

Not available

41

Poulan 530056625

Seal-Ring

$

$

Not available

42

Poulan 530016349

Screw

$6.49

$

In Stock, only 4 left!

0

43

Poulan 530055101

Housing-Pulley

$

$

Not available

44

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

45

Poulan 530071466

Kit-Starter Pulley
(Superseded to 545150201)

$

$

Not available

46

Poulan 530055102

Fan Housing

$

$

Not available

47

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

48

Poulan 530071459

Foam-182mm (kit)

$

$

Not available

49

Poulan 530071458

Kit-Gasket

Note: (page 3 incl. 2 & 5 ) (page 6 incl. 7,8, & 27 )

$

$

Not available

50

Poulan 530071459

Kit-Foam Seals

Note: (page 3 incl. 1,14,31) (page 6 incl. 30 & 48)

$

$

Not available
