SM 400 - Poulan Pro Blower, Type 3 Housing Type 3 Parts Diagram

Blower, Type 3

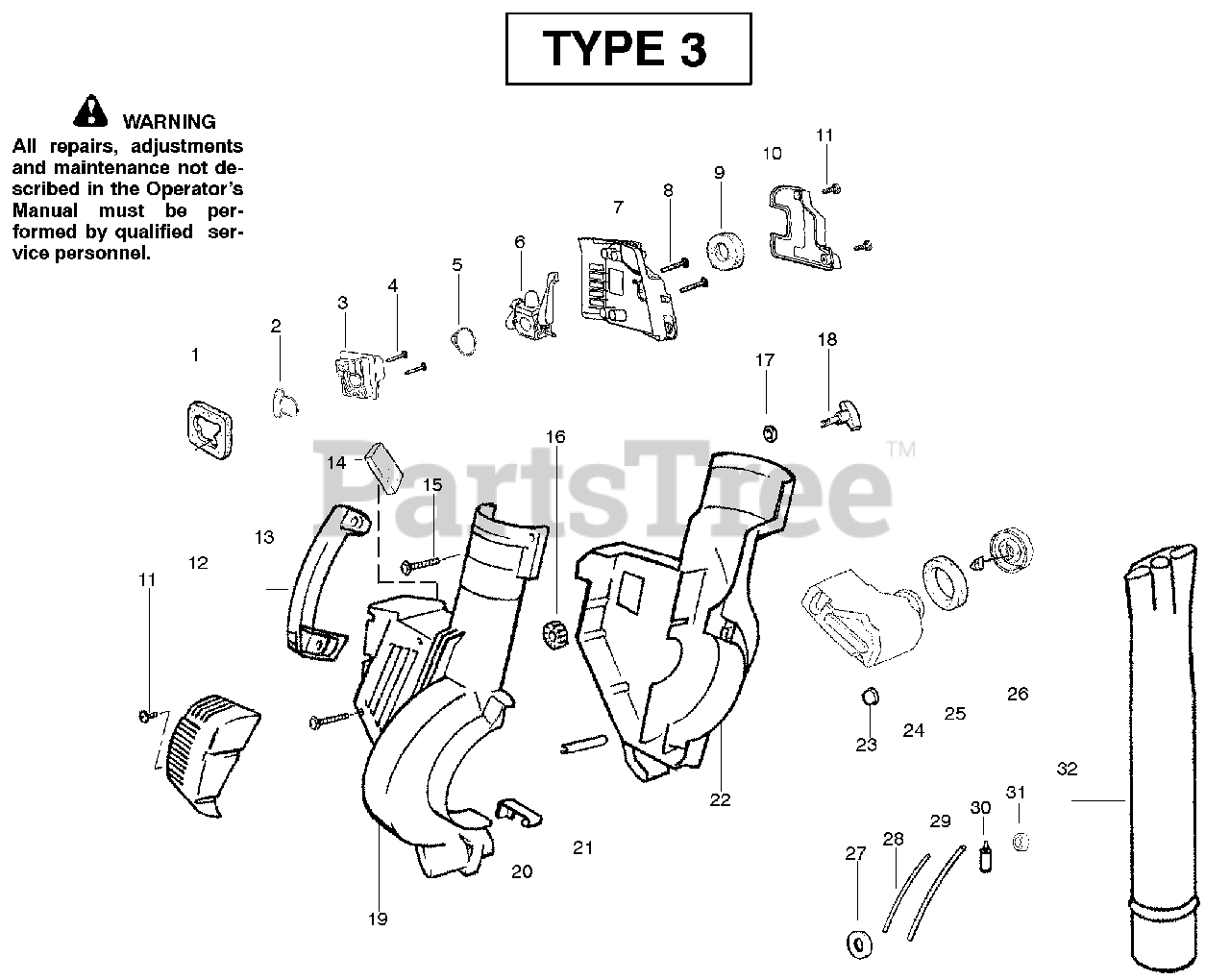

Housing Type 3 Parts Diagram

  • Title

1

Poulan 530071459

Air Dam (kit)

$

$

Not available

2

Poulan 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Poulan 530035561

Carburetor Adaptor

$

$

Not available

4

Poulan 530016441

Screw

$3.49

$

In Stock, only 3 left!

0

5

Poulan 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Poulan 530071632

Kit-Carb Ass'y. (C1Q-W11C)
(Superseded to 530071775)

$69.99

$

In Stock, only 2 left!

0

6

Poulan 530071775

Kit-Carb Ass'y. (WT-606)

$69.99

$

In Stock, only 2 left!

0

7

Poulan 530056629

Air Box

$

$

Not available

8

Poulan 530015849

Screw-Carb.

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 530049383

Filter-Air

$

$

Not available

10

Poulan 530056581

Cover-Air Filter

$

$

Not available

11

Poulan 530016349

Screw

$3.49

$

In Stock, only 1 left!

0

12

Poulan 545085001

Guard-Muffler

$31.99

$

In Stock, only 1 left!

0

13

Poulan 530095469

Handle

$

$

Not available

14

Poulan 530071459

Foam 71.12mm (Kit)

$

$

Not available

15

Poulan 530015886

Screw

$3.49

$

In Stock, Qty 17

0

16

Poulan 530049323

Isolator

$

$

Not available

17

Poulan 530015197

Nut

$3.49

$

In Stock, only 3 left!

0

18

Poulan 530016322

Knob-Blower

$3.49

$

In Stock, only 3 left!

0

19

Poulan 545018204

Assy.-Housing Right

Note: (incl. 20)

$

$

Not available

20

Poulan 530402044

Spring-Cover Latch

$

$

Not available

21

Poulan 530049617

Guide-Starter Rope

$

$

Not available

22

Poulan 545018103

Housing-Left

$

$

Not available

23

Poulan 530036792

Isolator-Crankcase

$

$

Not available

24

Poulan 530049491

Assy-Fuel Tank
(Superseded to 545058007)

$

$

Not available

25

Poulan 530049527

Gasket-Fuel Tank

$

$

Not available

26

Poulan 530049386

Fuel Cap w/Retainer
(Superseded to 530057973)

$9.49

$

Usually ships in 3-10 days

0

27

Poulan 530049656

Grommet-Shroud

$

$

Not available

28

Poulan 530069247

Kit-Line Carb/Purge

$2.49

$

In Stock, Qty 20+

0

29

Poulan 530069216

Kit-Line Tank/Purge

$13.99

$

In Stock, Qty 20+

0

30

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

31

Poulan 530071459

Grommet-Fuel line (kit)

$

$

Not available

32

Poulan 530095593

Tube-Blower

$

$

Not available

32

Poulan 545117517

Operator Manual

Note: Not Shown

$

$

Not available

32

Poulan 530057414

Warning Decal

Note: Not Shown

$

$

Not available

32

Poulan 545003023

Decal-Inst. / Warning

Note: Not Shown

$

$

Not available
