SM 706 - Electrolux/AYP String Trimmer, Type 2 (2008-12) Shaft - Type2 Parts Diagram

String Trimmer, Type 2

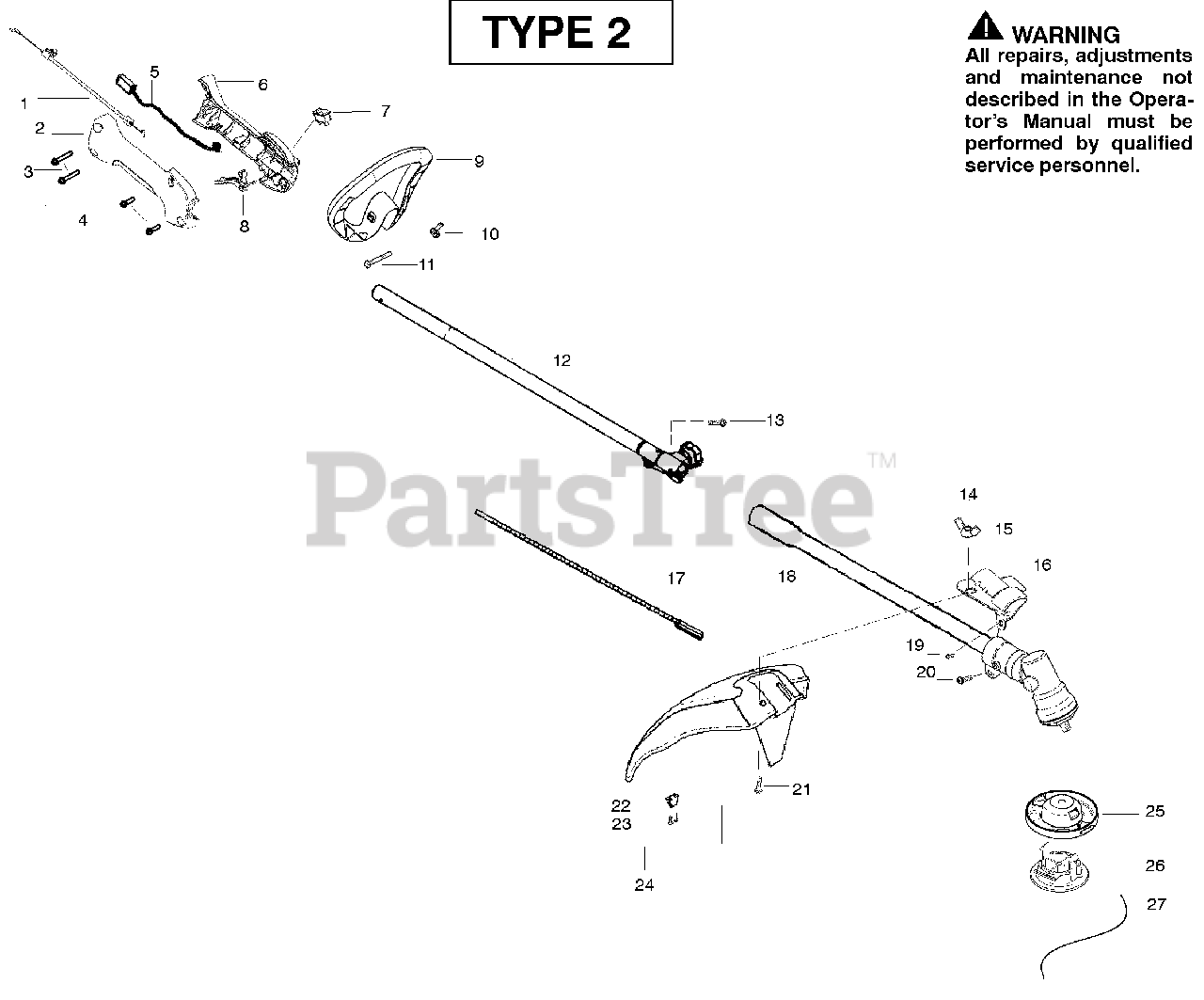

Shaft - Type2 Parts Diagram

  • Title

1

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg.-Throttle (RH)

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530054183

Assy.-Wire

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg. Throttle (LH)

$9.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 545030601

Kit-Switch
(Superseded to 545049301)

$9.99

$

In Stock, Qty 18

0

8

Electrolux/AYP 545077601

Trigger-Throttle
(Superseded to 530049107)

$4.99

$

In Stock, Qty 18

0

9

Electrolux/AYP 530058583

Assy.-Handle

Note: (Incl . 10,11)

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015786

Bolt

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$44.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 545150701

Bracket-Shield

$4.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 530096099

Gearbox

$53.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530096218

Flexshaft-lower
(Superseded to 545173003)

$11.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530071789

Kit-Lower Shaft

$27.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530052286

Limiter-Line

$

$

Not available

23

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

24

Electrolux/AYP 530071997

Kit-Shield Assy.

Note: (Incl. 22,23)

$27.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 545049401

Head - Fixed Line
(Superseded to 545053902)

$37.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 545049501

Cap - Fixed Line

$9.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 952711635

Accy - Line (12 pcs)

$

$

Not available

27

Operator Manual

Note: Not Shown

$

$

Not available

27

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

27

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

27

Decal-Rotation Direction

Note: Not Shown

$

$

Not available
