SMILSPVH 21875 (7800572) - Simplicity 21" Walk-Behind Mower, 8.75hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 8.75hp

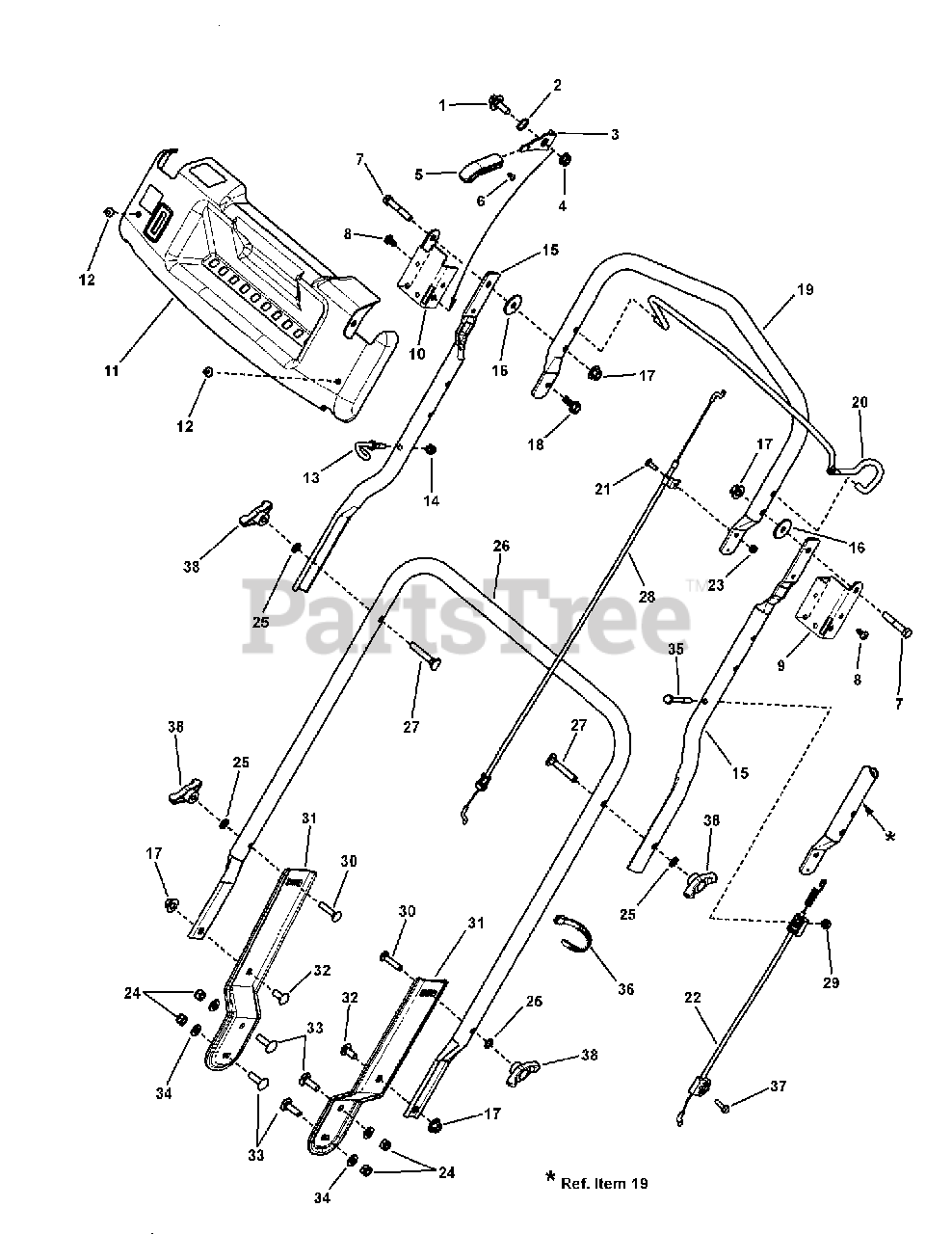

Handles & Controls Parts Diagram

  • Title

1

Simplicity 1716654

SHOULDER BOLT, 5/16-18
(Superseded to 1716654SM)

$5.49

$

In Stock, only 3 left!

0

2

Simplicity 7026257

WASHER, .531 x .781 3-Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 7300526A

HANDLE, Lock
(Superseded to 7300526BMYP)

$31.99

$

In Stock, only 1 left!

0

4

Simplicity 7091601

NUT, 5/16-18 Hex Flange lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 7090669

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 7900067

SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 7300436A

BRACKET, LH, Rotation Limit
(Superseded to 7301187AYP)

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 7300792A

BRACKET, RH, Rotation Limit
(Superseded to 7301186AYP)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 7103344

PANEL, Upper Handle WBM Black
(Superseded to 7103344YP)

$25.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960382

RIVET
(Superseded to 1960382YP)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 7028488

ROPE GUIDE (184-20 thread)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 7301011A

HANDLE, Upper, Pivot
(Superseded to 7301011AYP)

$80.99

$

Usually ships in 2-12 days

0

16

Simplicity 7023649

WASHER, 5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 7090951

NUT, 5/16-18 Center Lock (Large Head)
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

18

Simplicity 722839

SCREW, 5/16-18 x 3/4 WAHH
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 7300434A

HANDLE Pivot
(Superseded to 7300434AYP)

$39.99

$

Usually ships in 2-12 days

0

20

Simplicity 7100844A

BAIL, Pivot Handle
(Superseded to 7100844AYP)

$21.99

$

Usually ships in 2-12 days

0

21

Simplicity 7091085

BOLT, #10-24 x 1/2" Flat Head Square Neck
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 7103820

CABLE, OPC, Pivot-Handle
(Superseded to 7103820YP)

$20.99

$

In Stock, only 1 left!

0

23

Simplicity 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

24

Simplicity 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

25

Simplicity 7090391

WASHER, 5/16 Internal Tooth lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 7300592A

HANDLE, Lower
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

27

Simplicity 7091189

SCREW, 5/16-18 x 2" Square Neck Curved Head
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

28

Simplicity 7103819

CABLE, Drive, Pivot-Handle
(Superseded to 7103819YP)

$32.99

$

Usually ships in 2-12 days

0

29

Simplicity 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

30

Simplicity 7091612

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck
(Superseded to 704210)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 7300985A

BRACKET, Lower Handle, Alum Deck
(Superseded to 7300985AYP)

$38.99

$

Usually ships in 2-12 days

0

32

Simplicity 7091508

BOLT, 5/16-18 x 3/4"Round Head Short Square Neck, GR 5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 7091238

BOLT, 5/16-18 x 1" Round Head Square Neck, GR5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

34

Simplicity 7091076

FLAT WASHER, .34 x .69 x .08
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 7090505

SCREW, 1/4-20 x 2" Hex Head Cap GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Simplicity 7024641

WIRE TIE, 5.5" Long, Black
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

37

Simplicity 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

38

Simplicity 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$6.99

$

In Stock, Qty 20+

0

39

Simplicity 7024649

WIRE TIE,11 Inch Standard Black Nylon
(Superseded to 7024649YP)

Note: not shown; attaches throttle cable to engine

$5.49

$

Usually ships in 2-12 days

0
