SMILSPVH 21875 (7800572) - Simplicity 21" Walk-Behind Mower, 8.75hp Transmission Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

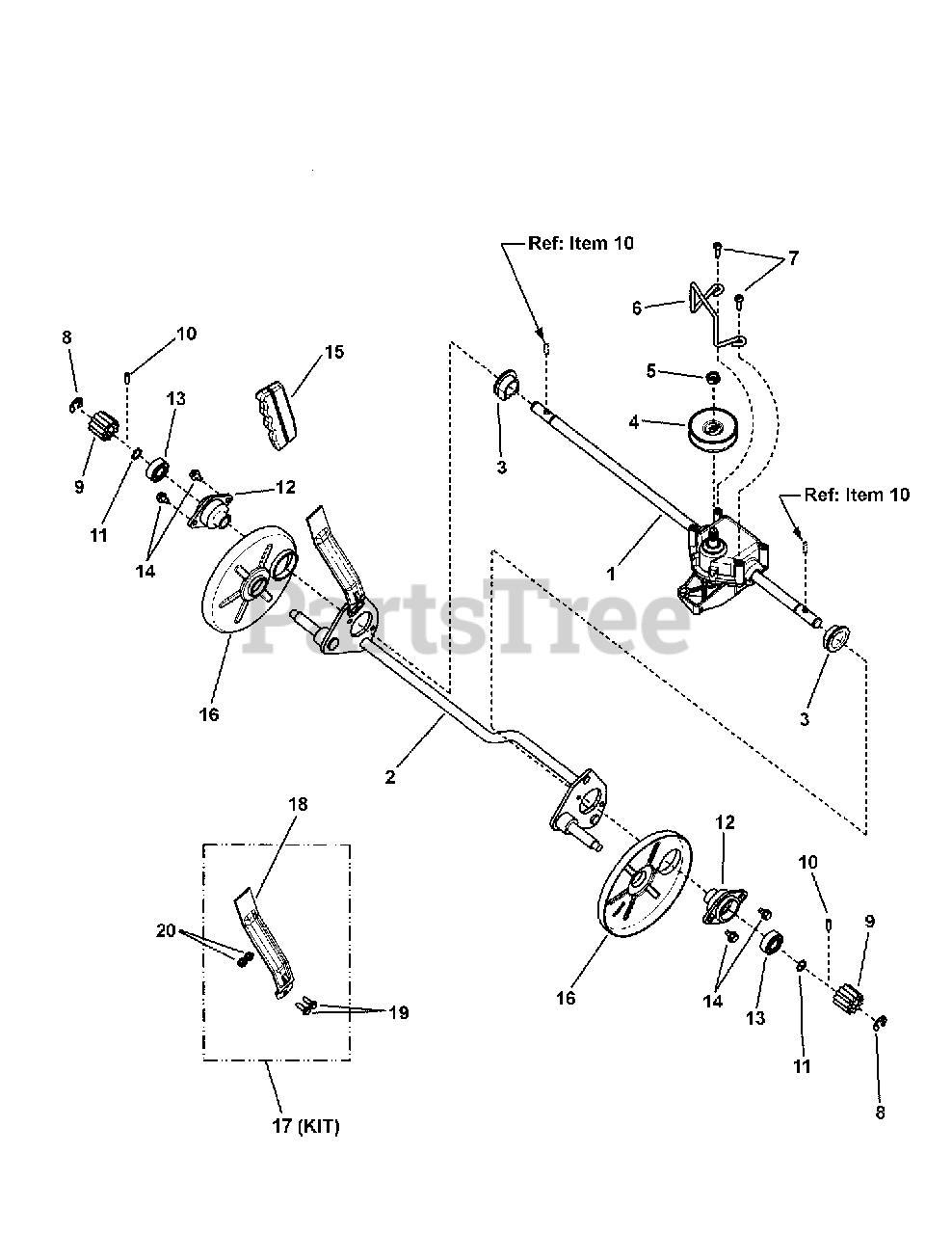

Transmission Group Parts Diagram

  • Title

1

Simplicity 7102632

TRANSMISSION, WBM, Cast Deck
(Superseded to 7102632YP)

$91.99

$

Usually ships in 2-12 days

0

2

Simplicity 7400284A

WELDMENT, Rear Axle
(Superseded to 7400284AYP)

$125.99

$

Usually ships in 2-12 days

0

3

Simplicity 7024715

BUSHING, Rear Axle (S/P)
(Superseded to 7024715YP)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 7100240

PULLEY, Transmission
(Superseded to 7100240YP)

$23.99

$

In Stock, only 1 left!

0

5

Simplicity 1960251

NUT, 3/8-16 Hex Center Lock (Jam)
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 7100863

BELT GUIDE, Transmission (Wireform)
(Superseded to 7100863YP)

$6.49

$

In Stock, only 1 left!

0

7

Simplicity 7091195

SCREW, #10-16 x 3/4, Pan Head Self-Tap, Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 7014341

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 7100820

GEAR, Pinion
(Superseded to 7100820YP)

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 7100861

PIN, Axle
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 7027999

RETAINING RING
(Superseded to 7027999YP)

Note: Waldes Truarc #5100-50 or equiv.

$4.49

$

In Stock, Qty 6

0

12

Simplicity 7025066

ASSY, Bearing Carrier
(Superseded to 7025066YP)

Note: includes bearing, Item 13

$38.99

$

Usually ships in 2-12 days

0

13

Simplicity 7024724

BALL BEARING, 1/2 ID x 1-1/8" OD

Note: (per Bearing Carrier Assembly)

$

$

Not available

14

Simplicity 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Head, Self-Tap
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 7026420

GRIP, Flat Bar (Black)
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 7102633

DUST SHIELD, Cast Deck
(Superseded to 7102633YP)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 7061272

KIT, Height Adjusting Lever
(Superseded to 7061272YP)

Note: includes items 18, 19 & 20

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 7033967

LEVER, Height Adjusting (Black)
(Superseded to 7061272YP)

$31.99

$

Usually ships in 2-12 days

0

19

Simplicity 7091289

SCREW, #10-32 x 5/8" Hex Washer Self-Tap, GR5
(Superseded to 7091289YP)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0
